Model	PUP10D-1WMC-700
Input Voltage	100VAC-240VAC
Input Current	0.12Amax@100VAC

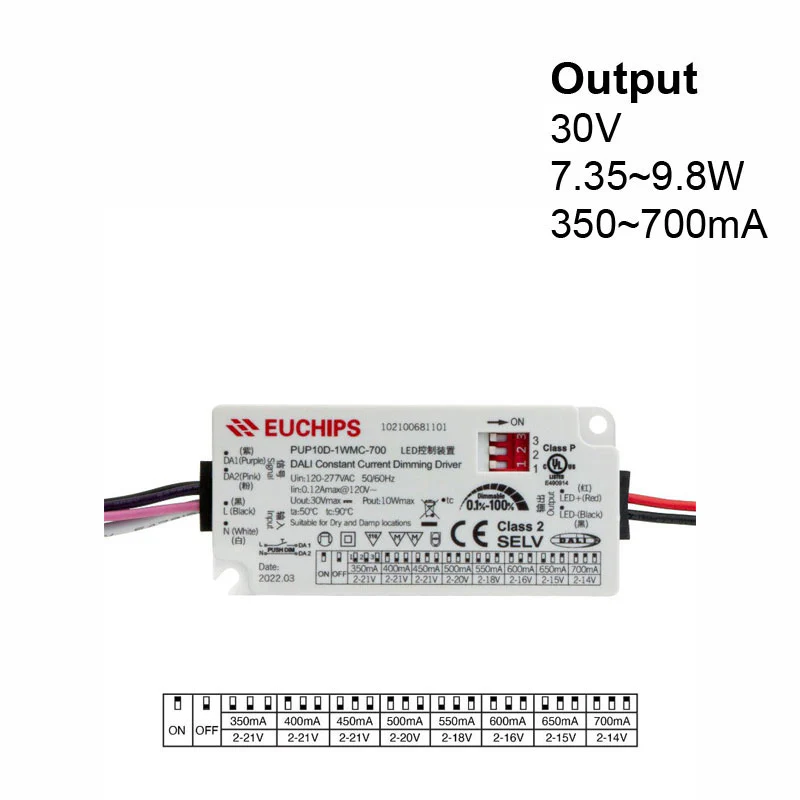

Output Current/Voltage/Power	350mA/2-21V/7.35W 400mA/2-21V/8.4W 450mA/2-21V/9.45W 500mA/2-20V/10W 550mA/2-18V/9.9W 600mA/2-16V/9.6W 650mA/2-15V/9.75W 700mA/2-14V/9.8W
No-load Output Voltage	30V Max
Input Frequency	50/60Hz
Dimming Type	DALI/Touch DIM (Push DIM)
Dimming Range	0.1%-100% Dimming to off
IP Rating	IP20 (Dry and Damp Locations)
Efficiency	78%@230VAC, Full load
Working Temperature	-20℃~50℃
Lifetime	50,000h @ Tc:85℃

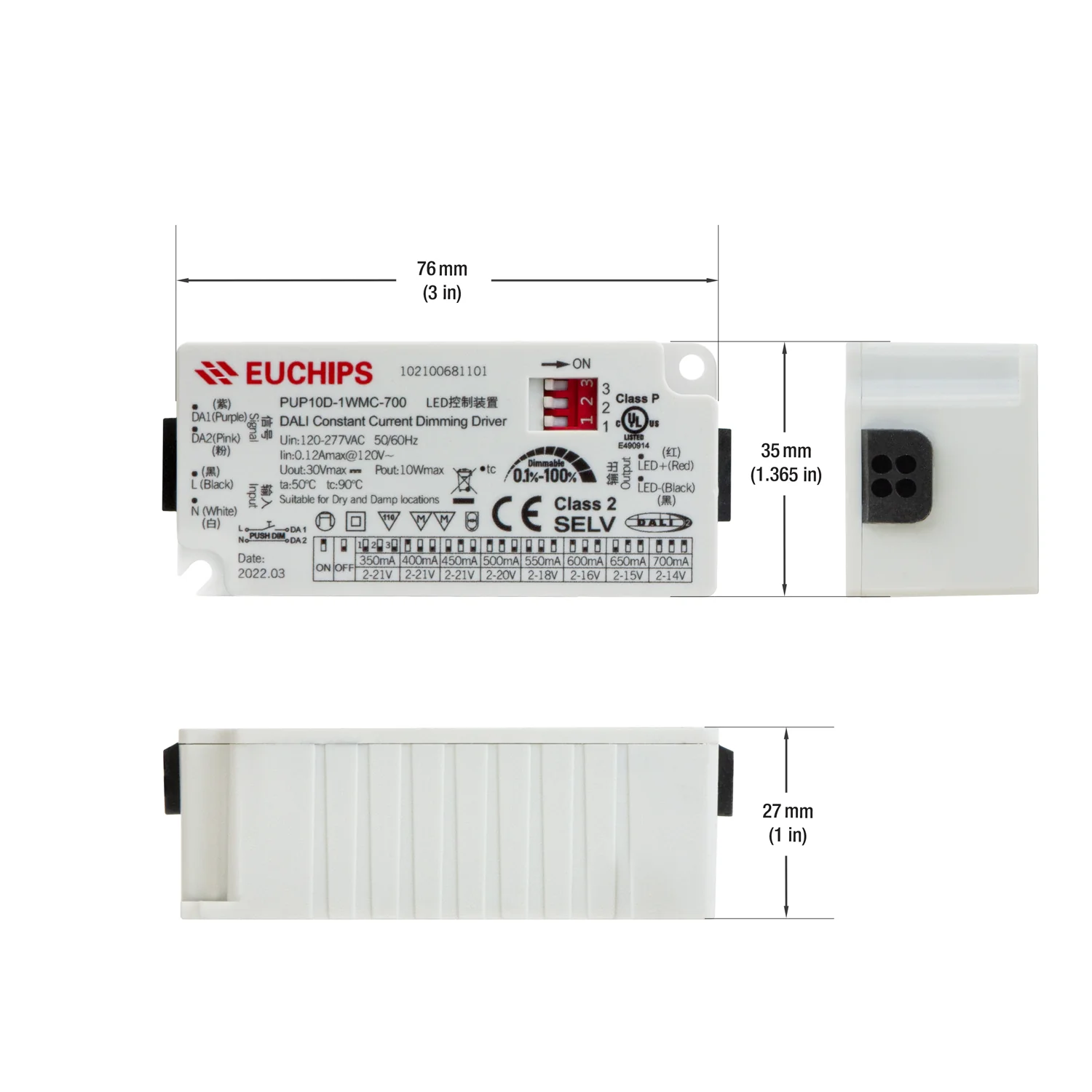

Dimensions	75.23 x 35.29 x 26.67mm (2.96 x 1.39 x 1in)
Certifications

PUP10D-1WMC-700 is a selectable constant current LED driver with 10W power output
Input voltage range: 100-240VAC, maximum input current: 0.12A at 100VAC
Multiple output current options: 350mA to 700mA
No-load output voltage: 30V max, input frequency: 50/60Hz
Dimmable through DALI and Touch DIM (Push DIM) dimming types
Dimming range: 0.1%-100% with dimming to off capability
IP20 rating for dry and damp locations
Efficiency of 78% at 230VAC full load
Working temperature range: -20℃~50℃, lifetime: 50,000 hours at Tc:85℃
Dimensions: 75.23 x 35.29 x 26.67mm (2.96 x 1.39 x 1in)
