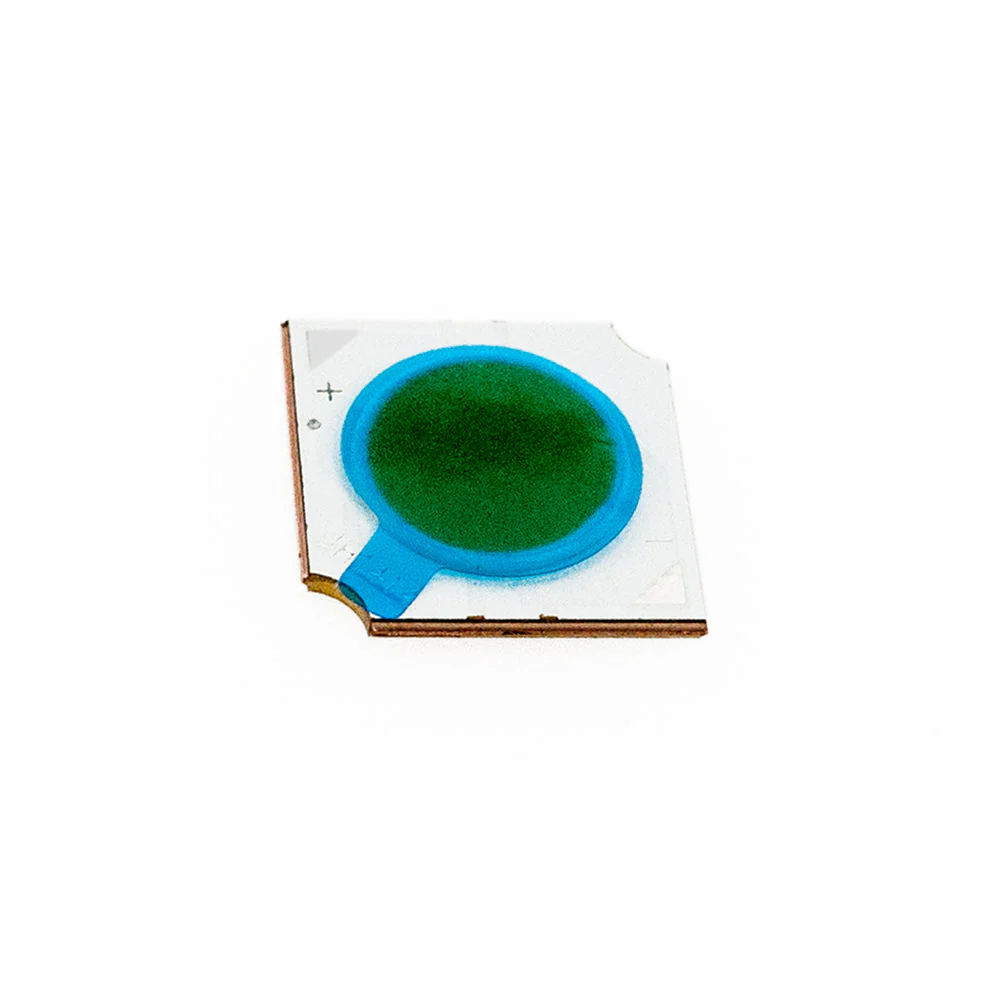

Constant Current COB LED Module, 350mA 5W CCT(3K, 3.5K, 4K, 6K)

Model No	5WW14E33-Y6C (For 3000K, 3500K) 5W14E33-Y6C (For 4000K, 6000K)
Voltage	15-17V DC(For 3000K) 14-16V DC (For 3500K. 4000K, 6000K)
Wattage	5W
Current	350mA

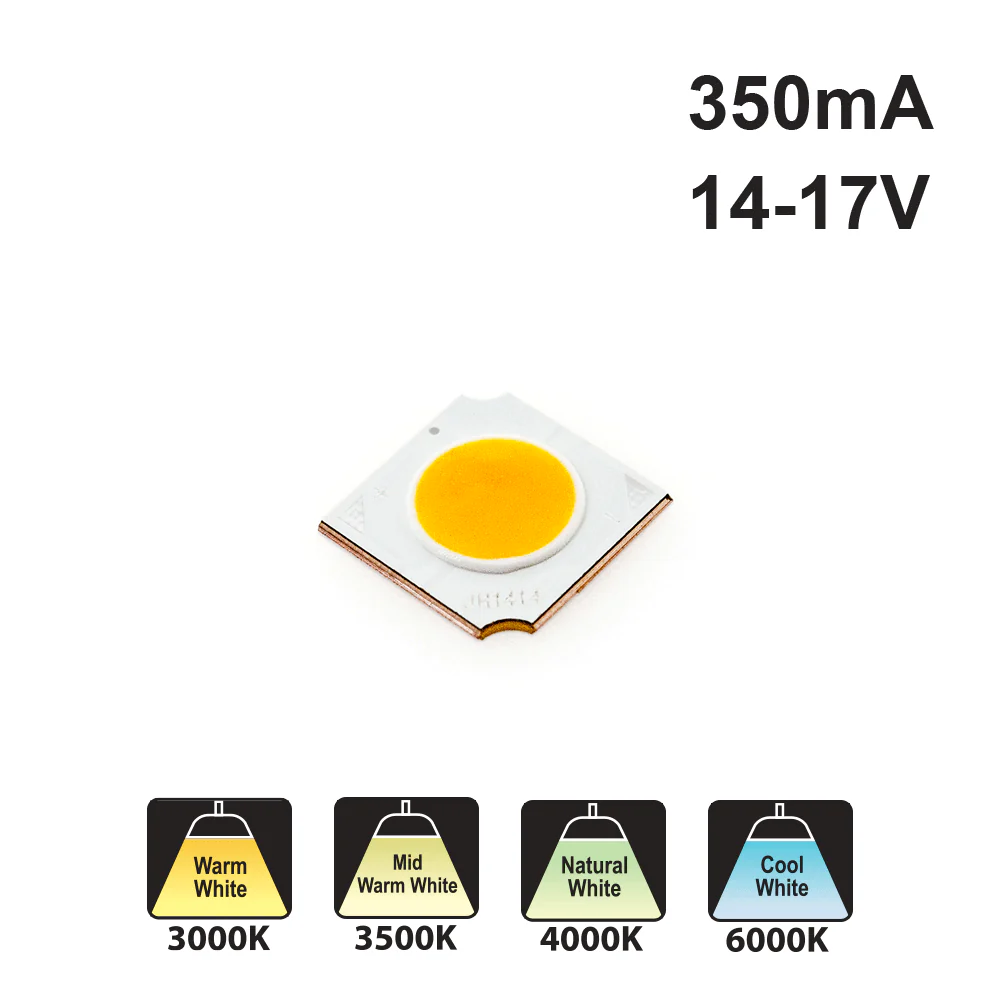

Available Color Temperature	3000K(Warm White) 3500K (Mid-Warm White) 4000K (Natural Light) 6000K (Cool White)
Luminous Flux	300-350lm (For 3000K) & 350-450lm (For 3500K, 4000K, 6000K)
Material	Metallic base

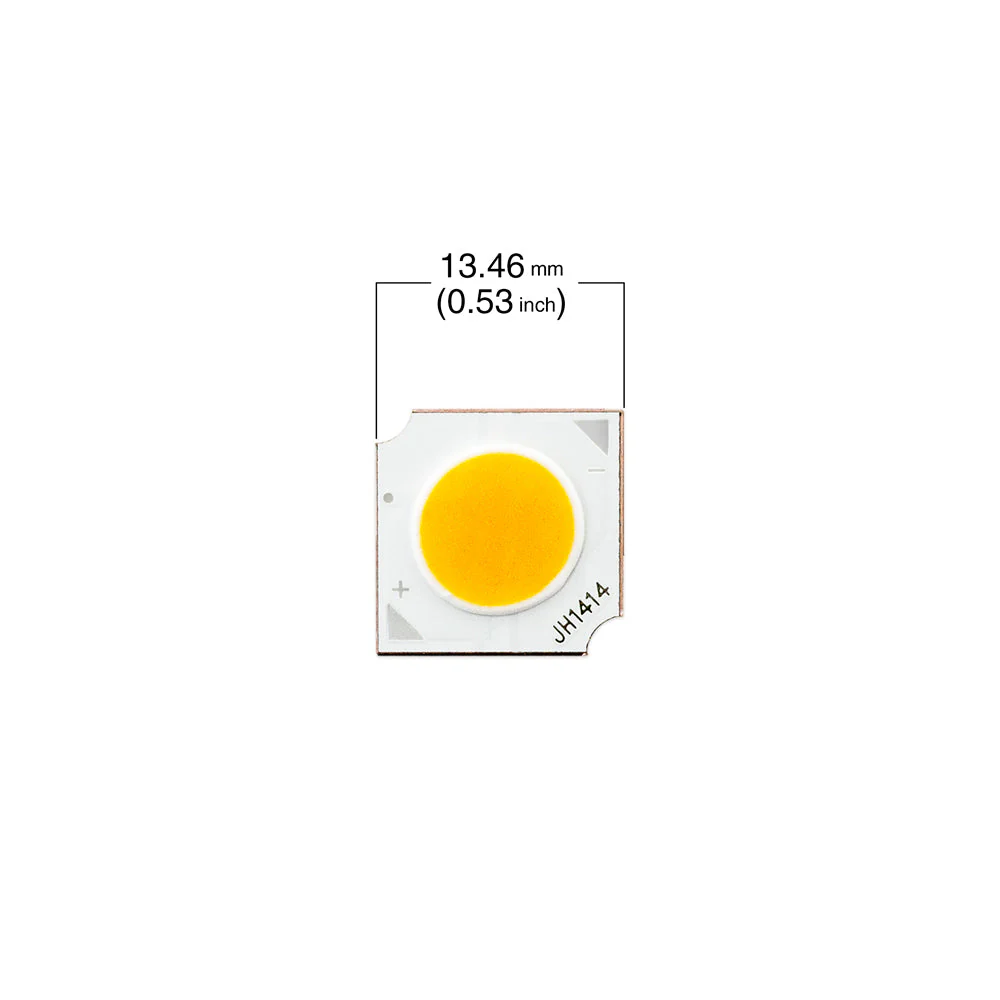

Dimensions	13.4 x 13.4 x 1.5mm (0.5 x 0.5 x 0.05inch)







Features:

• The Constant Current COB LED Module provides low power consumption and high energy efficiency.
• Model number: 5WW14E33-Y6C (for 3000K, 3500K) and 5W14E33-Y6C (for 4000K, 6000K).
• Voltage range: 15-17V DC (for 3000K) and 14-16V DC (for 3500K, 4000K, 6000K).
• Wattage: 5W and current: 350mA. Luminous flux: 300-350lm (for 3000K) and 350-450lm (for 3500K, 4000K, 6000K).
• Dimensions: 13.4 mm x 13.4 mm (0.5 inch x 0.5 inch) with a metallic base material.
• Available in different color temperatures: Warm White, Natural White, and Cool White.
• Good DIY product for replacing damaged LEDs of any fixture with the same voltage and wattage.
• Provides high-quality illumination and is energy-efficient and versatile in its applications.

• Use Thermal Grease or Thermal Pad for installation.
