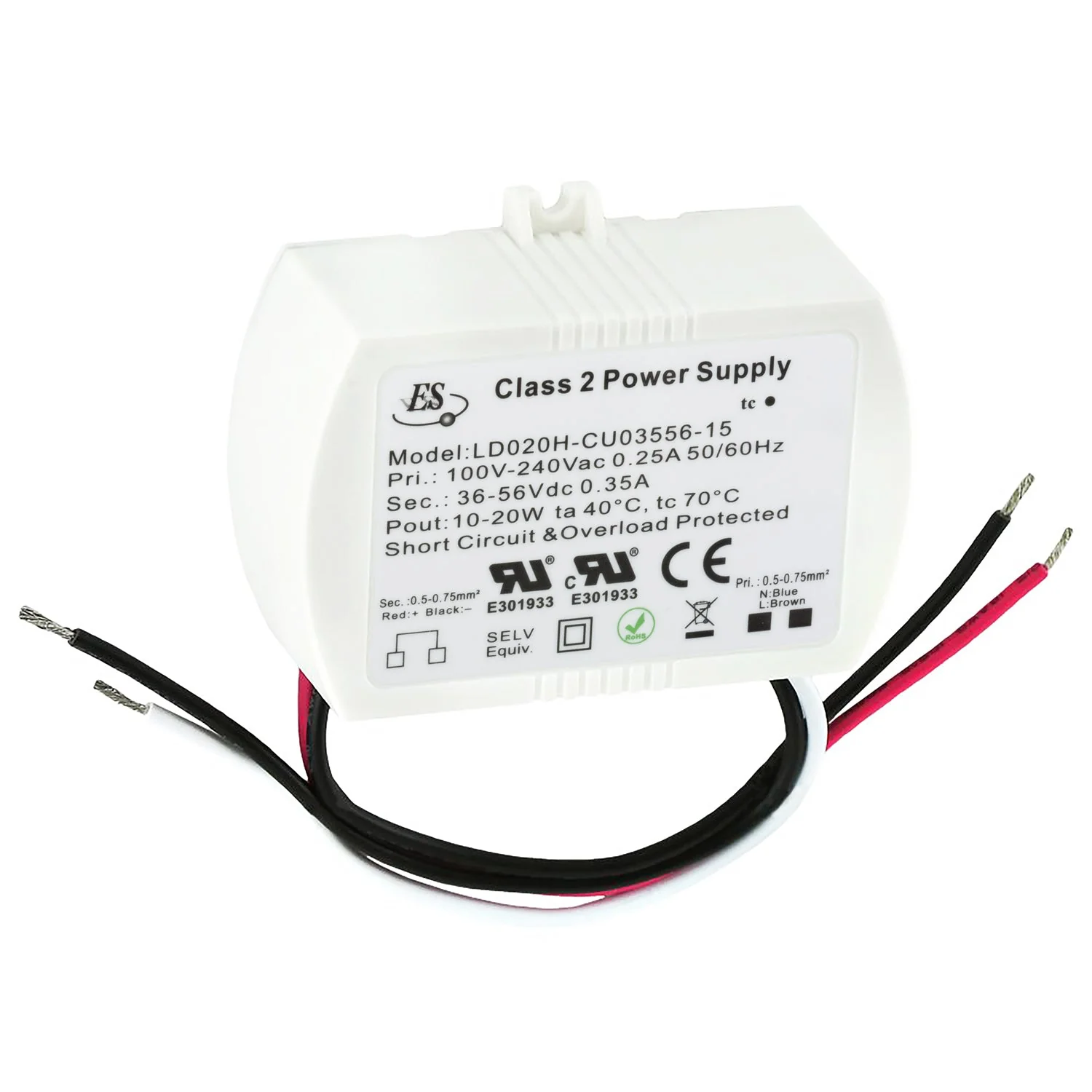

ES LD020H-CU03556-15 Non-Dimmable Constant Current LED Driver, 350mA 36-56V 10-20W—
$38.91
The Story
| Model | LD020H-CU03556-15 |
| Input Voltage | 100-240V AC |
| Input Current | 0.25A |
| Frequency | 50/60Hz |
| Output Voltage | 36-56V DC |
| Output Regulated Current | 350mA |
| Output Power | 10-20W |
| Ambient Temperature (Ta) | 40°C |
| Case Temperature (Tc) | 70°C |
| Dimension | 85 x 54 x 32mm (3.35x2.12x1.27 in) |
| Class Certification | Class 2/ Class II |
| Certifications |

|
Feature:
- Applicable for Dray and Damp Locations
- Short Circuit and Overload Protected
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Model | LD020H-CU03556-15 |
| Input Voltage | 100-240V AC |
| Input Current | 0.25A |
| Frequency | 50/60Hz |
| Output Voltage | 36-56V DC |
| Output Regulated Current | 350mA |
| Output Power | 10-20W |
| Ambient Temperature (Ta) | 40°C |
| Case Temperature (Tc) | 70°C |
| Dimension | 85 x 54 x 32mm (3.35x2.12x1.27 in) |
| Class Certification | Class 2/ Class II |
| Certifications |
|
Feature:
- Applicable for Dray and Damp Locations
- Short Circuit and Overload Protected
