CDAC-80-5028-120V-27 COB Paragon LED Module with HT5828 LED Holder, 120V 30W 2700K—
$84.44
The Story
| Model No | CDAC-80-5028-120V-27 |
| COB Holder Model No | HT5828 |
|
LED Type |
COB LED |
| No LED chips | 80 |
| Wattage | 30W |
| Voltage | 120V AC |
| Power Factor | PF>0.85 |
| Luminous Intensity | 3150 Lumens |
| Color Temperature | 2700K (Soft White) |
| Dimmable | Yes |
| Rendering Index | CRI>80 |
| IP Rating | IP20 (Indoor rated) |
| COB Holder Dimensions | ∅58mm (2.3in) x H8mm (0.3 in) |
| COB Module Outer Diameter | ∅28mm (1.1 in) |
| Operating Temperature | -40 ~ +105℃ |
| Storage Temperature | -40 ~ +105℃ |
| Included Content | COB Module, COB LED Array Holder, Thermal Pad |
| Certifications |  |
Features:
- Low power consumption and high energy efficiency.
- Suitable for damp locations.
- Requires an aluminum heat sink to prevent overheating, which can lead to serious luminous decay.
- COB LEDs are brighter, consume less power, and provide higher quality beam output compared to older LED technologies.
- Ground light fixtures during the lamp design process.
- COB LEDs are commonly used in almost every kind of luminaire.

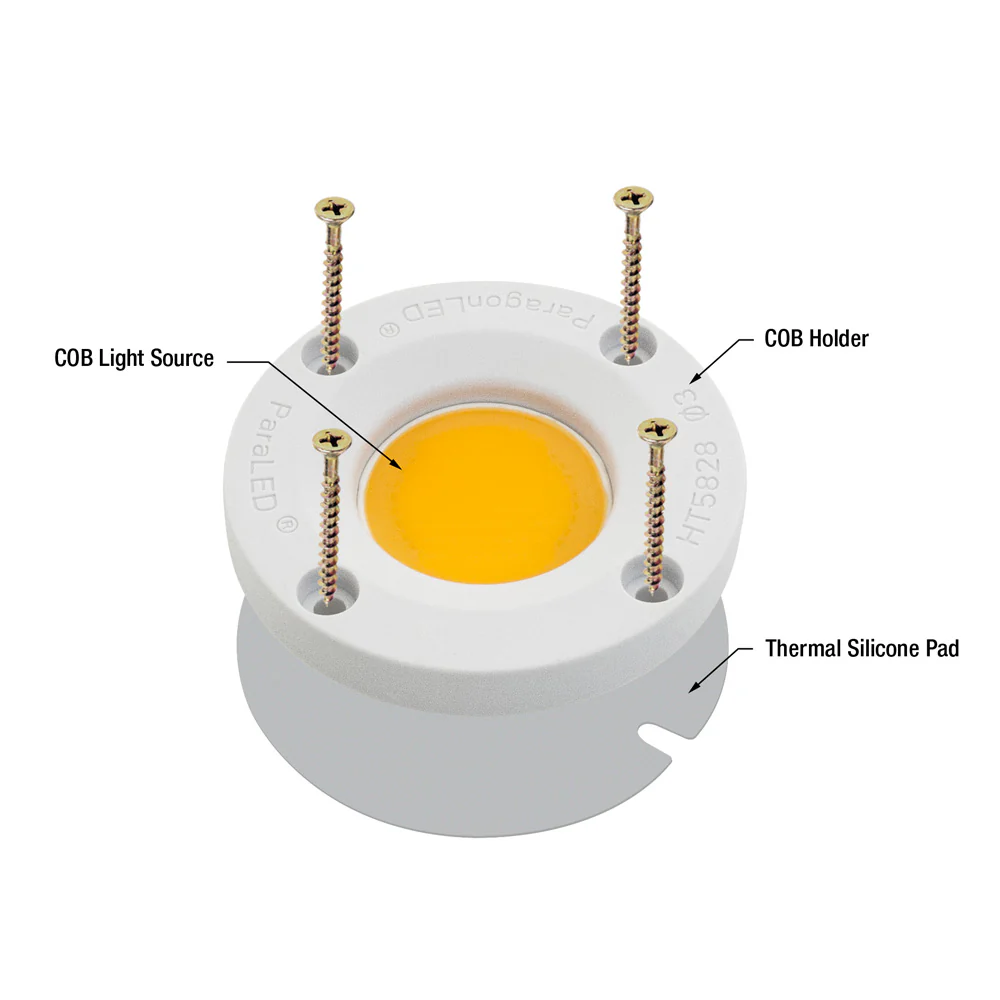

- The COB holder, equipped with a glass diffuser, enables secure mechanical installation, electrical connection, and attachment to a heat sink.
- The silicone grease thermal pad acts as a heat sink and aids in better heat dissipation, thereby increasing the module's lifespan.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Model No | CDAC-80-5028-120V-27 |
| COB Holder Model No | HT5828 |
|
LED Type |
COB LED |
| No LED chips | 80 |
| Wattage | 30W |
| Voltage | 120V AC |
| Power Factor | PF>0.85 |
| Luminous Intensity | 3150 Lumens |
| Color Temperature | 2700K (Soft White) |
| Dimmable | Yes |
| Rendering Index | CRI>80 |
| IP Rating | IP20 (Indoor rated) |
| COB Holder Dimensions | ∅58mm (2.3in) x H8mm (0.3 in) |
| COB Module Outer Diameter | ∅28mm (1.1 in) |
| Operating Temperature | -40 ~ +105℃ |
| Storage Temperature | -40 ~ +105℃ |
| Included Content | COB Module, COB LED Array Holder, Thermal Pad |
| Certifications | |
Features:
- Low power consumption and high energy efficiency.
- Suitable for damp locations.
- Requires an aluminum heat sink to prevent overheating, which can lead to serious luminous decay.
- COB LEDs are brighter, consume less power, and provide higher quality beam output compared to older LED technologies.
- Ground light fixtures during the lamp design process.
- COB LEDs are commonly used in almost every kind of luminaire.
- The COB holder, equipped with a glass diffuser, enables secure mechanical installation, electrical connection, and attachment to a heat sink.
- The silicone grease thermal pad acts as a heat sink and aids in better heat dissipation, thereby increasing the module's lifespan.
