PCK 02-005-930-120-C1 YUNLT LED Module, 120V 5W 3000K(Warm White)

Model No	PCK 02-005-930-120-C1
Wattage	5W
Voltage	120V AC
Luminous Intensity	400 lumens
Color Temperature	3000K (Warm White)
Dimmable	Yes
Rendering Index	CRI>90
IP Rating	IP20 (Indoor rated)

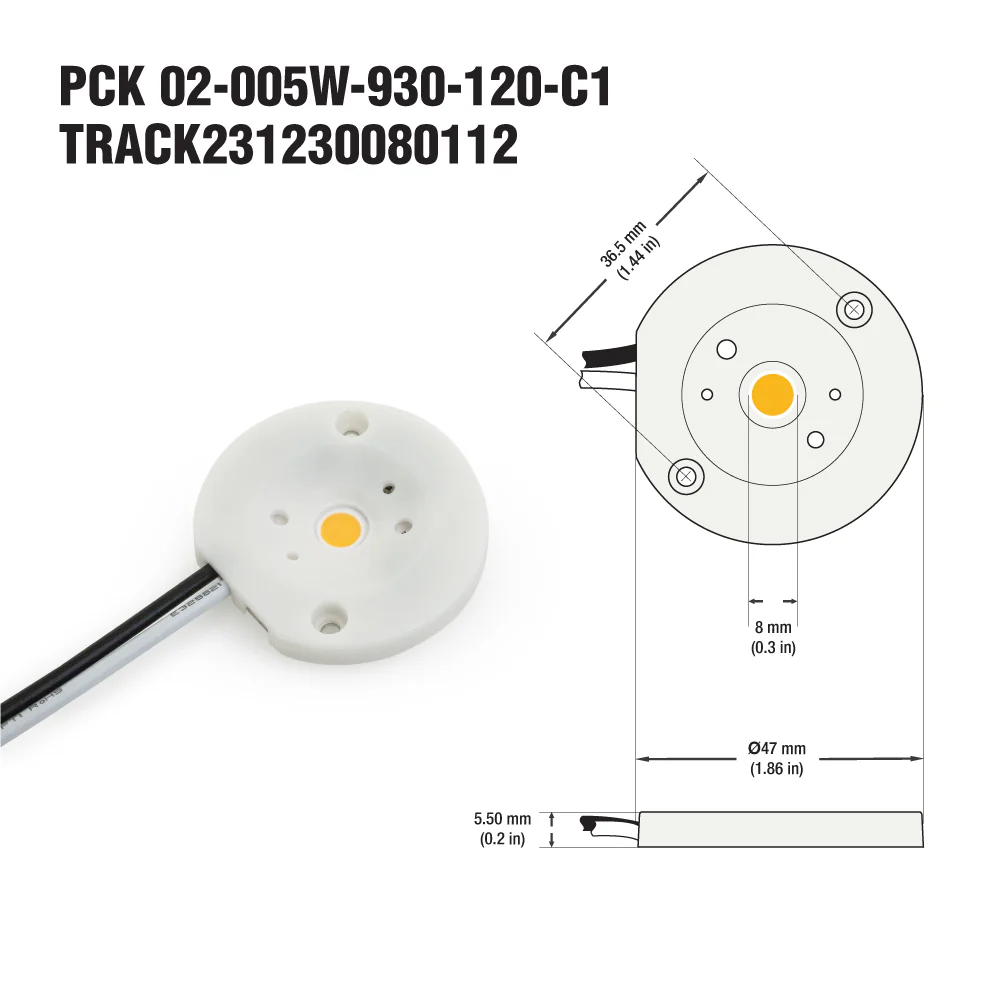

COB Holder Dimensions	∅47 x H5.5 mm (1.8 x 0.2 in)
COB Module Outer Diameter	∅8mm (0.3 in)
Wire Size	30cm (11.8in) 18AWG
Operating Temperature	-60 ~ +105℃
Storage Temperature	-60 ~ +105℃
Assembly process Temperature	<300℃
Solder joint point	<105℃
Dielectric Breakdown Voltage of Thermal Pad	>4KV

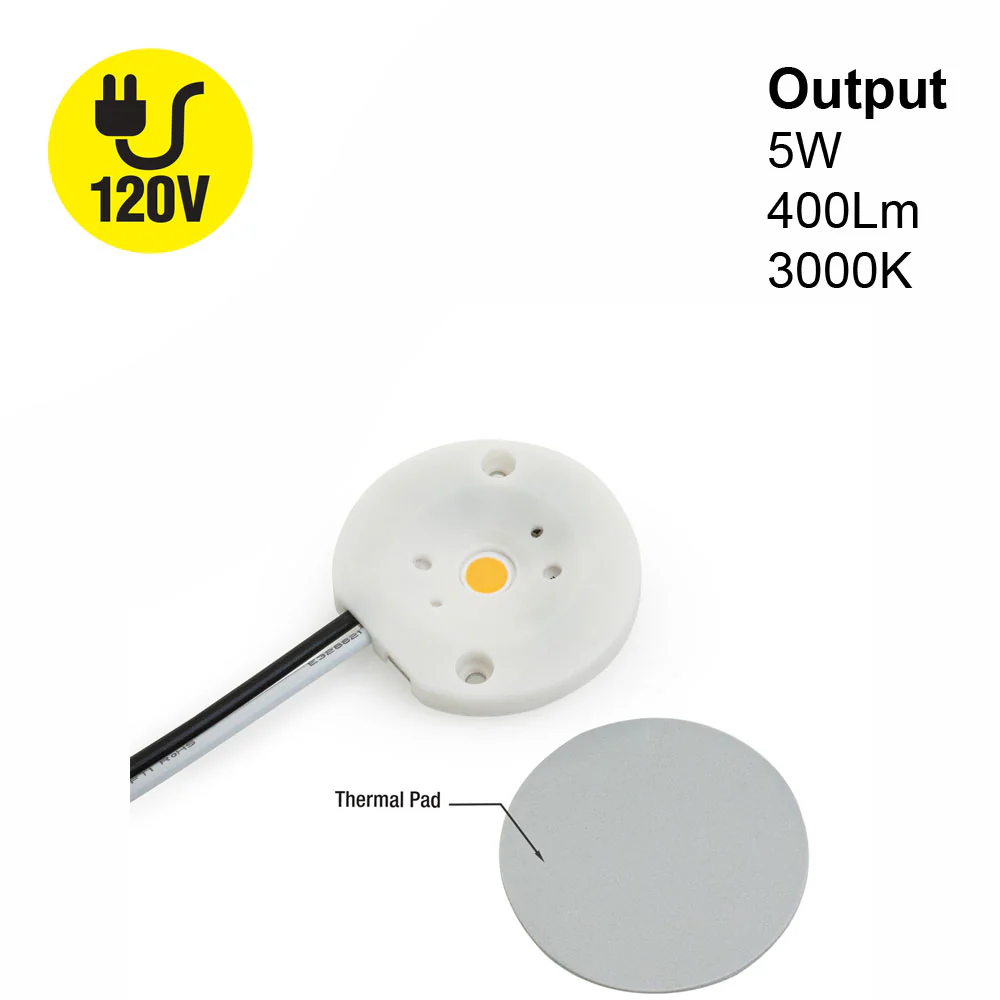

Included Content	COB Module, COB Holder, Thermal Pad
Certifications

Features:

• Operates on 120V DC with a power consumption of 5W
• Produces warm white light with color temperature of 3000K and CRI>90
• Dimmable and suitable for use in damp locations (IP20 rating)
• Requires aluminum heat sink to prevent overheating and luminous decay
• More energy-efficient and produces brighter and higher quality beam output than older LED technologies
• Suitable for use in almost every kind of luminaire
• Grounding light fixtures is essential for safe and efficient operation

• Silicone grease thermal pad provides heat sink and better heat dissipation
• Operates at temperatures ranging from -60 ~ +105℃, and solder joint point should be kept below 105℃
