$40.38
Super Slim VBD-024-060VWSW Non-Dimmable LED Driver, 24V 2.5A 60W—
$40.38
The Story
| Model | VBD-024-060VWSW |
| Input voltage | 100-277V AC |
| Input Current | 0.9A |
| Frequency | 50/60Hz |
| Power Factor | 0.95 |
| Output voltage | 24V DC |
| Output regulated current | 2.5A |
| Output Power | 60W |
| Dimmable | No |
| Waterproof | Yes |
| IP Rating | IP67 (Outdoor Rated) |
| Class Certification | Class 2/ Class P/ Type HL |

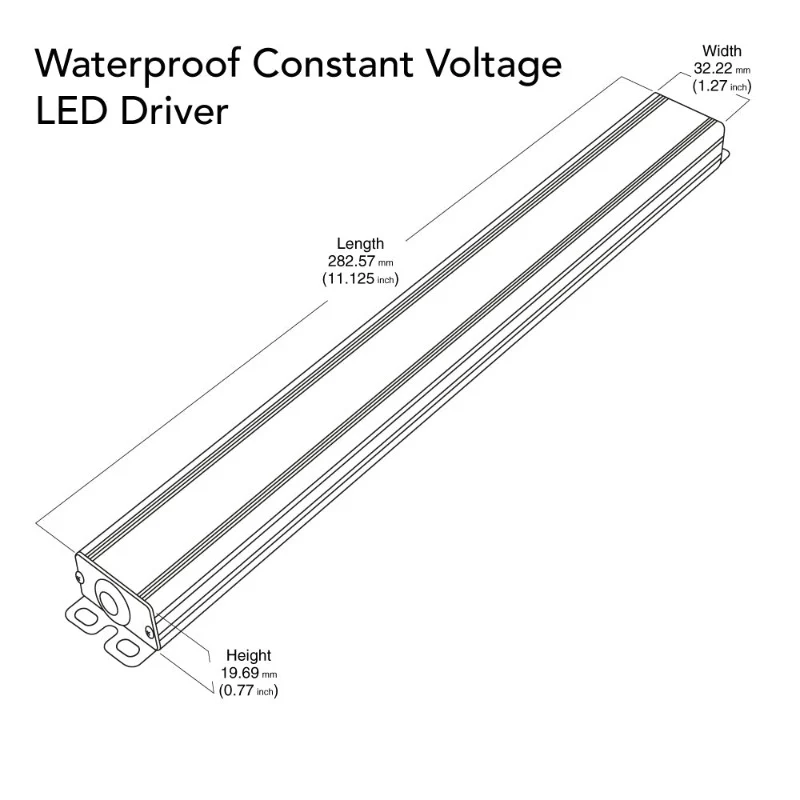

| Dimensions | 282.57 x 32.22 x 19.69mm (11.125 x 1.27 x 0.77 in) |
| Certification |

|
| Suitable for dry, damp, and wet locations |
Features:
- Converts input voltage range of 100-277V AC to a regulated 24V DC output voltage
- Compact and super slim design with dimensions of 282.57 x 32.22 x 19.69mm (11.125 x 1.27 x 0.77 in)
- Capable of delivering a maximum output power of 60W with an output regulated current of 2.5A
- Designed with an IP67 rating, making it waterproof and suitable for use in damp and wet locations
- Class 2/ Class P/ Type HL certified for use with LED lighting fixtures
- UL certified for safety and performance standards set by the electrical safety testing organization
- Suitable for use in dry, damp, and wet locations, making it versatile for various LED applications
