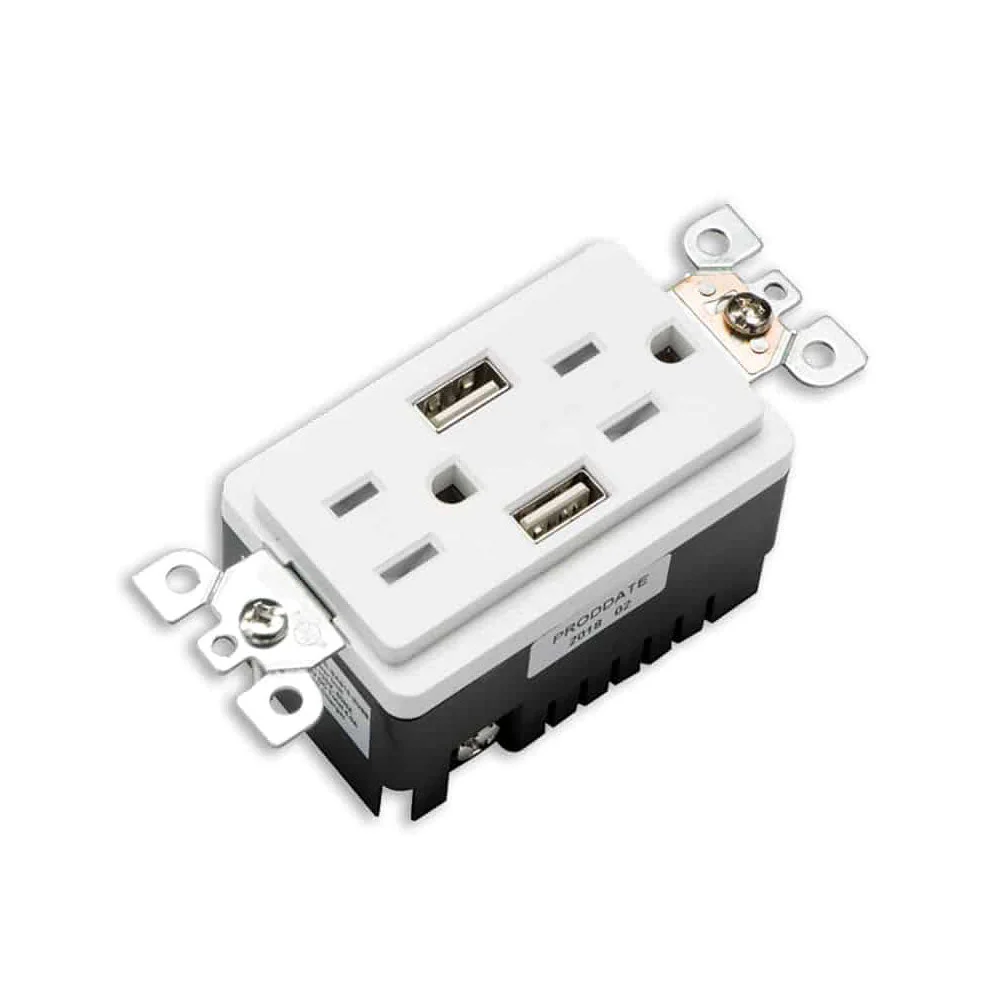

-70%Votatec USB Charger & Duplex Receptacle (TR) TYPE A BAA-023 125V 15A/20A—
$13.22
$3.97The Story
| Model No. | BAA-023 |
| Insulation Resistance | >50MΩ (DC500V) |
| Temperature | -20°C~60°C |
| Electric strength | Pressure resistance 1500V 50Hz Duration 1 Min |
| Wire Specifications | #14- #10AWG |
| USB Voltage & Current | 5VDC 4A |
| Rated Voltage | 125V/60Hz |
| Rated Current | 15A/20A |
| Available colors | White, Black |
| Housing material | flame retardant grades UL94-V2 |
| Standard | UL498 UL943 CSA-C22.2 No.42 USB1.0/2.0/3.0 |
| Unloaded plug | ≥5000Sec Loop detection |
| Type | Tamper Resistance |
| Certification |
|
Features:
- Dual-function design combining a tamper-resistant duplex receptacle with USB charging ports for enhanced convenience.
- USB ports provide a reliable 5VDC output with a total current of 4A, suitable for fast charging of multiple devices.
- Rated for 125V/60Hz with a current capacity of 15A/20A, ideal for residential and commercial applications.
- Supports a wide temperature range from -20°C to 60°C, ensuring consistent performance in diverse environments.
- Built with high insulation resistance of >50MΩ (DC500V) for improved electrical safety and reliability.
- Designed to withstand 1500V pressure at 50Hz for 1 minute, ensuring robust electric strength.
- Compatible with wire specifications ranging from #14 to #10AWG for versatile installation options.
- Certified under UL498, UL943, CSA-C22.2 No.42, and supports USB1.0, USB2.0, and USB3.0 standards.
- Constructed with flame-retardant housing material rated UL94-V2 for enhanced fire safety.
- Tamper-resistant design protects against accidental contact with live parts, ensuring child safety.
- Offers durability with an unloaded plug lifecycle of ≥5000 seconds in loop detection.
- Available in sleek white and black finishes to match a variety of interior styles.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Model No. | BAA-023 |
| Insulation Resistance | >50MΩ (DC500V) |
| Temperature | -20°C~60°C |
| Electric strength | Pressure resistance 1500V 50Hz Duration 1 Min |
| Wire Specifications | #14- #10AWG |
| USB Voltage & Current | 5VDC 4A |
| Rated Voltage | 125V/60Hz |
| Rated Current | 15A/20A |
| Available colors | White, Black |
| Housing material | flame retardant grades UL94-V2 |
| Standard | UL498 UL943 CSA-C22.2 No.42 USB1.0/2.0/3.0 |
| Unloaded plug | ≥5000Sec Loop detection |
| Type | Tamper Resistance |
| Certification |
|
Features:
- Dual-function design combining a tamper-resistant duplex receptacle with USB charging ports for enhanced convenience.
- USB ports provide a reliable 5VDC output with a total current of 4A, suitable for fast charging of multiple devices.
- Rated for 125V/60Hz with a current capacity of 15A/20A, ideal for residential and commercial applications.
- Supports a wide temperature range from -20°C to 60°C, ensuring consistent performance in diverse environments.
- Built with high insulation resistance of >50MΩ (DC500V) for improved electrical safety and reliability.
- Designed to withstand 1500V pressure at 50Hz for 1 minute, ensuring robust electric strength.
- Compatible with wire specifications ranging from #14 to #10AWG for versatile installation options.
- Certified under UL498, UL943, CSA-C22.2 No.42, and supports USB1.0, USB2.0, and USB3.0 standards.
- Constructed with flame-retardant housing material rated UL94-V2 for enhanced fire safety.
- Tamper-resistant design protects against accidental contact with live parts, ensuring child safety.
- Offers durability with an unloaded plug lifecycle of ≥5000 seconds in loop detection.
- Available in sleek white and black finishes to match a variety of interior styles.
