$113.80

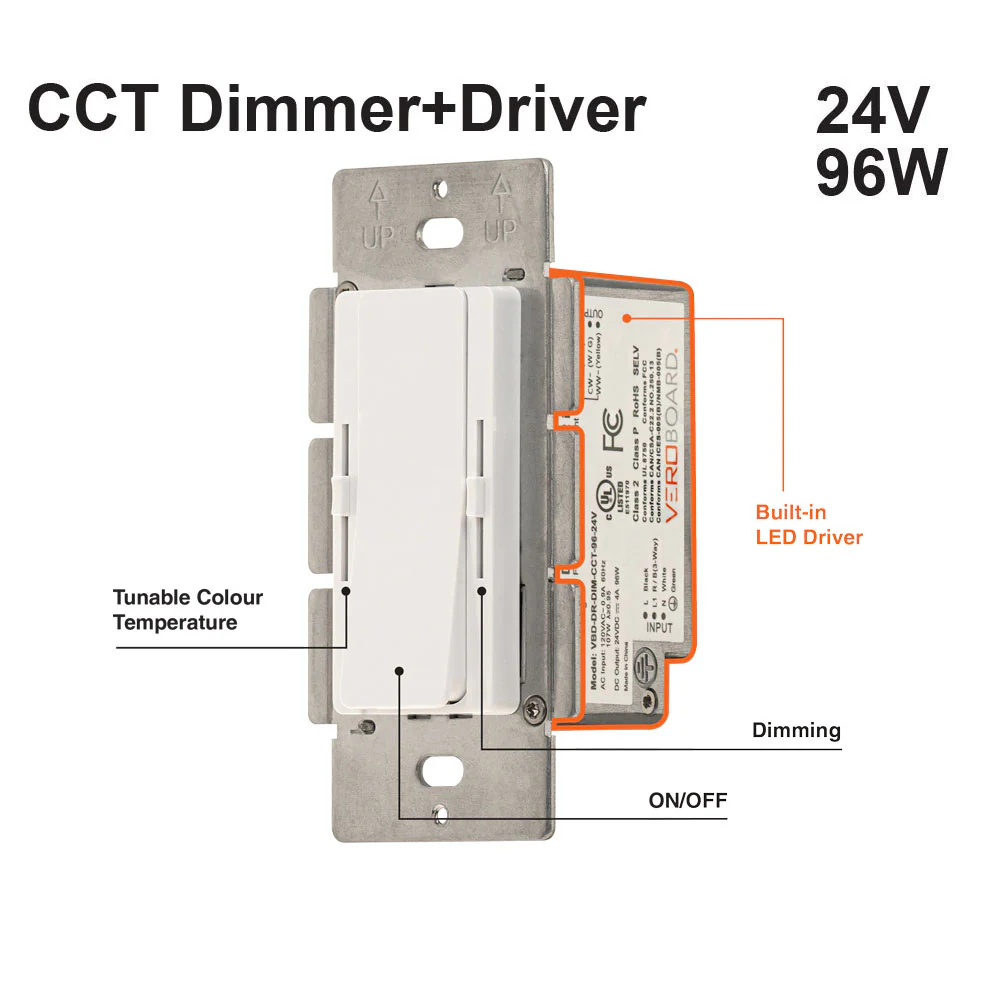

Single Gang CCT Dimmer+Driver Control Hybrid 96W 24V class2. Single pole/ 3Way—
$113.80
The Story
| Model No | VBD-DR-DIM-CCT-96-24V |
| Input Voltage | 120V AC, 60Hz |
| Output Voltage | 24V DC |
| Wattage | 96W |
| Output Current | 4A |
| Class Certification | Class 2 |
| Switching | Single Pole / 3-Way |
| IP Rated | IP20 |
| Dimming | 100% - 0.3% Load Sensing Auto-trim Adjust Color Temperature |

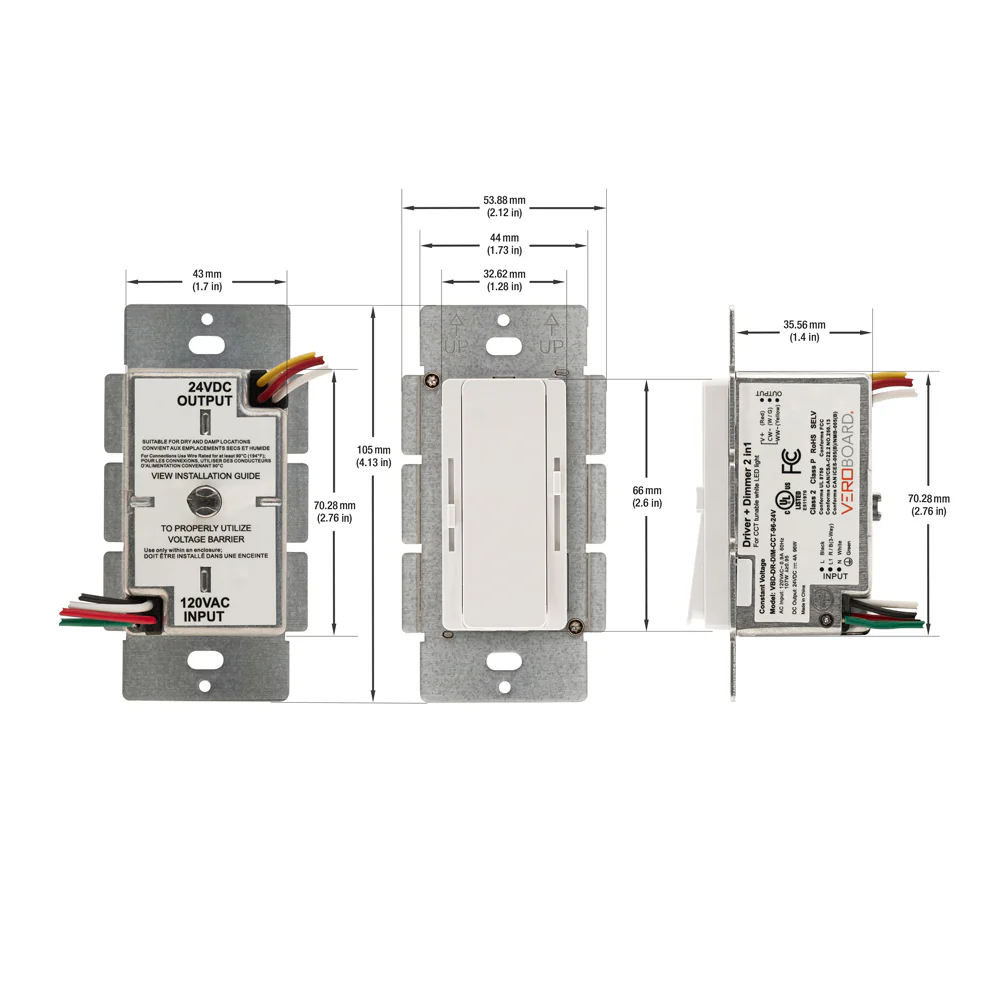

| Dimensions | 105 x 53.8 x 35.56 mm (4.1 x 2.1 x 1.4 in) |
| Certification |  |
Feature:

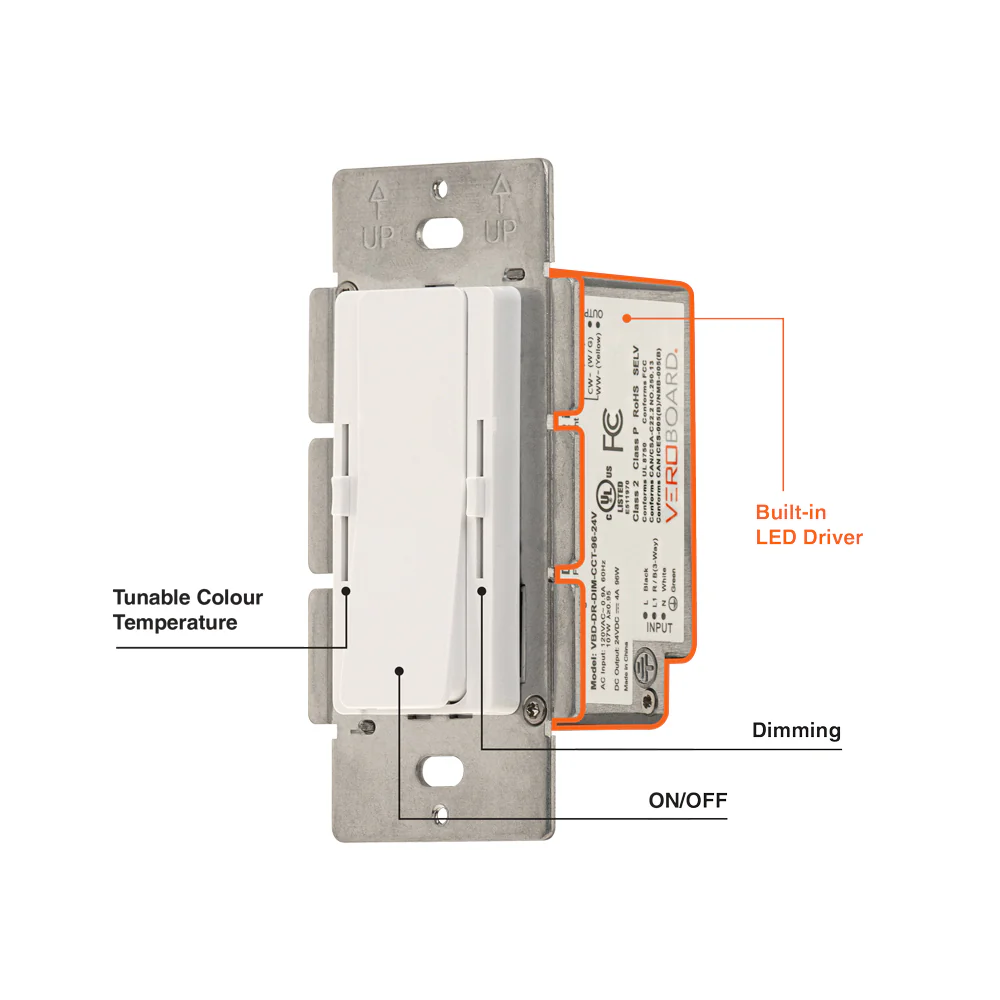

- 2-in-1 Design: Combines a constant voltage driver and dimmer in one compact unit, simplifying installation.
- Made for Tunable White LEDs: Optimized for 24V tunable white LED strips with smooth and precise brightness control.
- Reliable Output: Delivers up to 96W (4A) at 24V DC from a 120V AC input (60Hz).
- Smooth Dimming: Dims from 100% down to 0.3%, compatible with single-pole and 3-way switches.
- Smart Load Adjustment: Auto-trim feature adjusts output based on connected load for optimal performance.
- Certified & Indoor Rated: IP20 rated for dry locations and certified by UL, FCC, and RoHS.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Model No | VBD-DR-DIM-CCT-96-24V |
| Input Voltage | 120V AC, 60Hz |
| Output Voltage | 24V DC |
| Wattage | 96W |
| Output Current | 4A |
| Class Certification | Class 2 |
| Switching | Single Pole / 3-Way |
| IP Rated | IP20 |
| Dimming | 100% - 0.3% Load Sensing Auto-trim Adjust Color Temperature |
| Dimensions | 105 x 53.8 x 35.56 mm (4.1 x 2.1 x 1.4 in) |
| Certification | |
Feature:
- 2-in-1 Design: Combines a constant voltage driver and dimmer in one compact unit, simplifying installation.
- Made for Tunable White LEDs: Optimized for 24V tunable white LED strips with smooth and precise brightness control.
- Reliable Output: Delivers up to 96W (4A) at 24V DC from a 120V AC input (60Hz).
- Smooth Dimming: Dims from 100% down to 0.3%, compatible with single-pole and 3-way switches.
- Smart Load Adjustment: Auto-trim feature adjusts output based on connected load for optimal performance.
- Certified & Indoor Rated: IP20 rated for dry locations and certified by UL, FCC, and RoHS.
