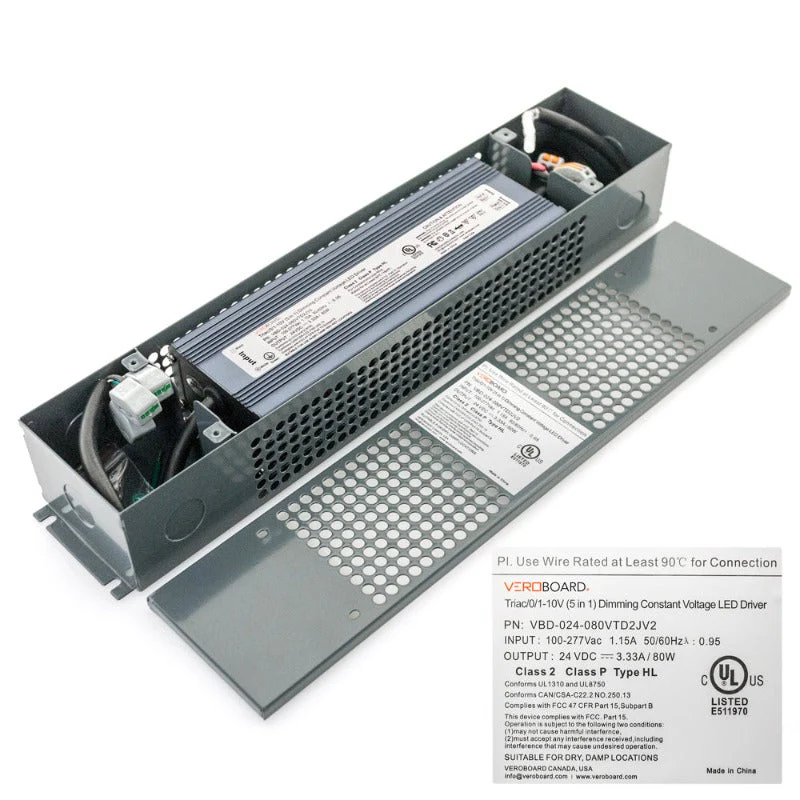

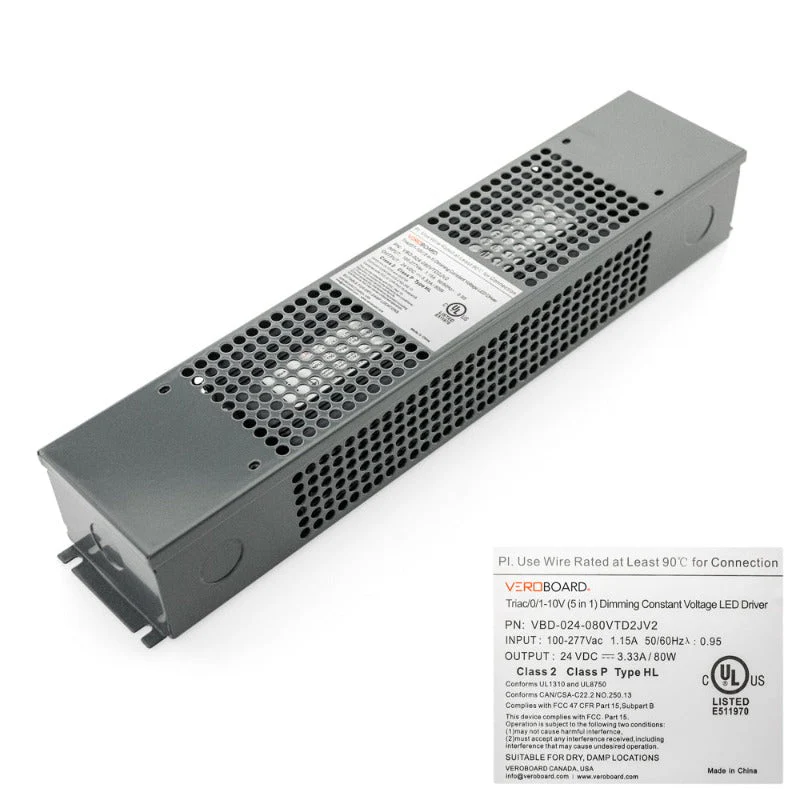

VBD-024-080VTD2JV2 Triac/0-10V Dimmable LED Driver, 24V 80W 100-277V AC

Model	VBD-024-080VTD2JV2
Input Voltage	100-277V AC
Input Current	1.15A
Efficiency	50/60Hz
Power Factor	0.95
Output Voltage	24V DC
Output regulated Current	3.33A
Output Power	80W max
Dimmable	Yes (Triac/0/10V Dimming)
Class Certification	Class 2/ Class P/ Type HL/ SELV
IP Rating	IP67 (outdoor Rated)
Dimensions (Without Box)	203 x 69.5 x 42mm (8 x 2.75 x 1.65 in)
Dimensions (Box)	361.95 x 77.78 x 56mm (14.25 x 3.06 x 2.2 in)
Certifications

Compatible with Forward-Phase, 0-10V, Magnetic low Voltage, ELV & Triac dimmers

Suitable for Dry, Damp, and Wet locations.



Features:

• 24V, 80W, 100-277V AC input LED driver
• Triac/0-10V dimming capabilities with 5 different dimming methods
• Power factor of 0.95 and highly efficient at 50/60Hz
• Regulated output voltage of 24V DC with a maximum output current of 3.33A
• Class 2, Class P, Type HL, and SELV certified, and has an IP67 rating making it suitable for outdoor use
• FCC and UL certified
• Dimensions without the box: 203 x 69.5 x 42mm (8 x 2.75 x 1.65 in)
• Dimensions with the box: 361.95 x 77.78 x 56mm (14.25 x 3.06 x 2.2 in)
