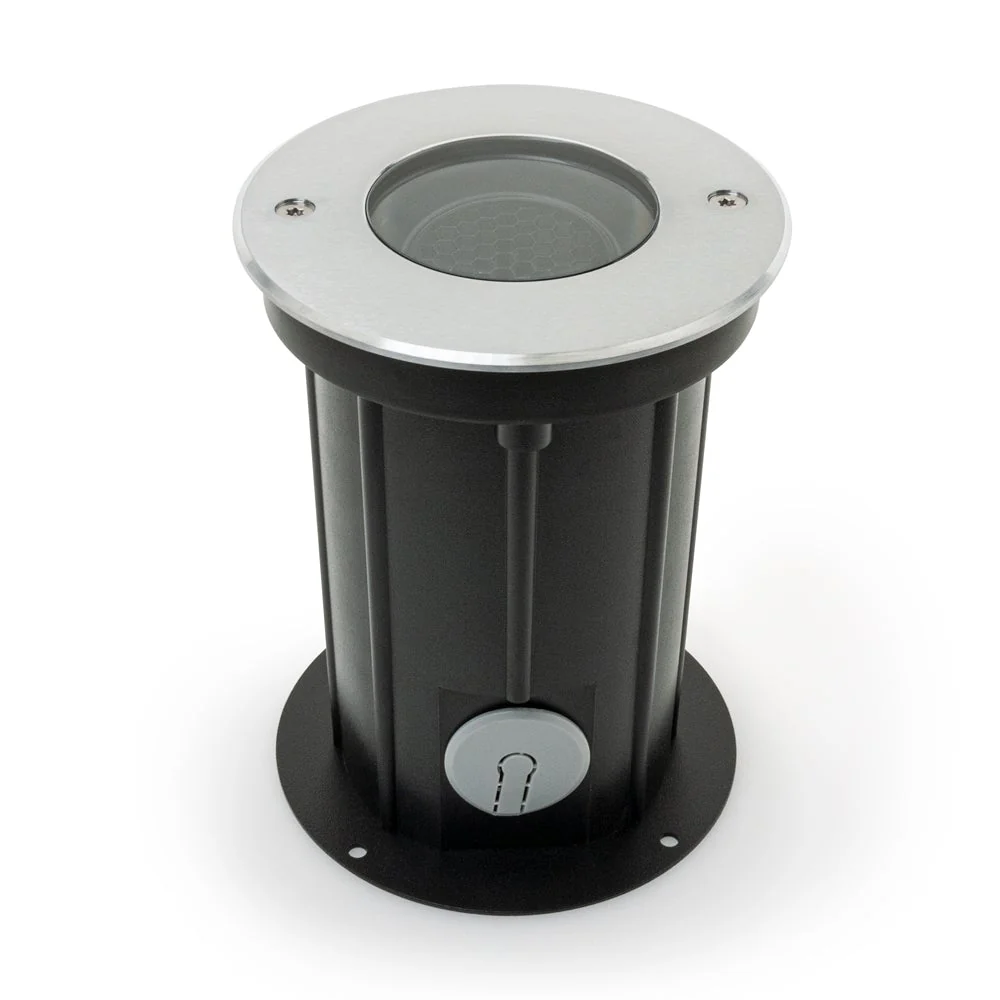

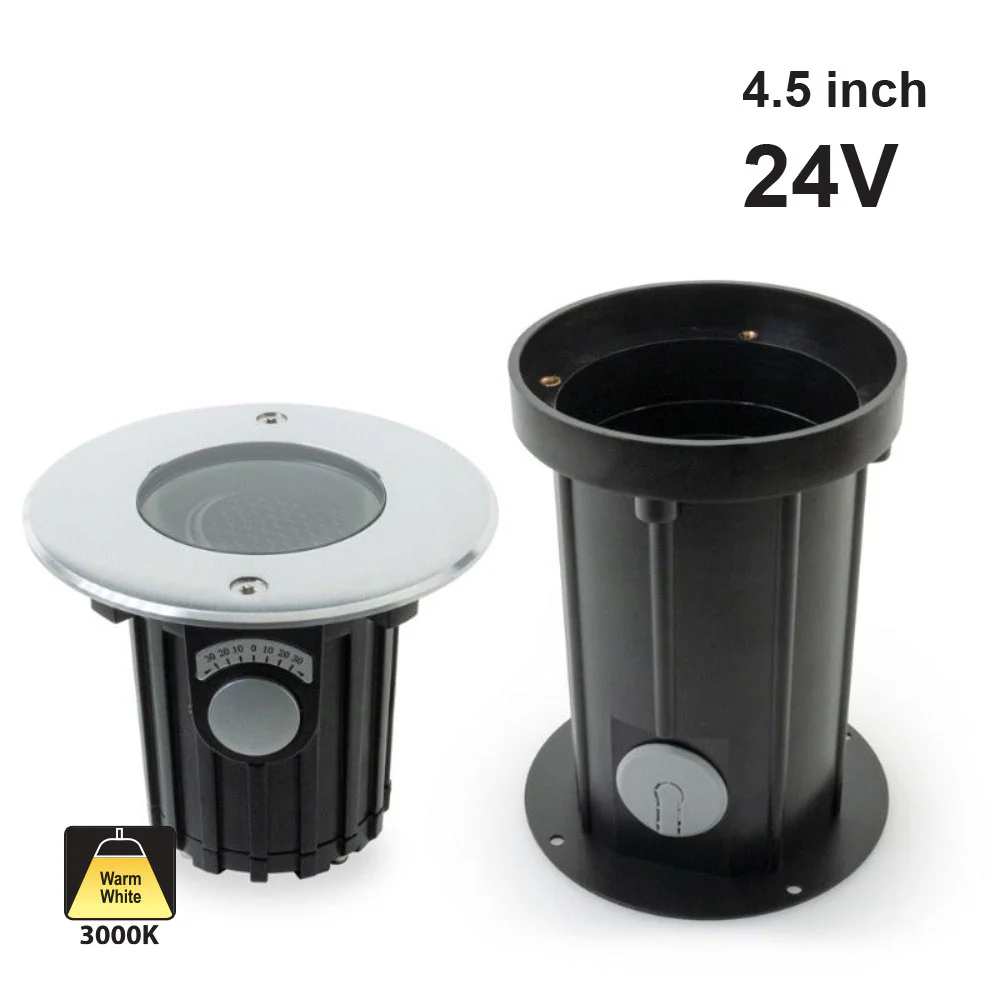

XB2DFR0257 Round Adjustable Beam Direction Up light, 24V 3.6W 3000K(Warm White)



Model	XB2DFR0257
Operating Voltage	24V DC

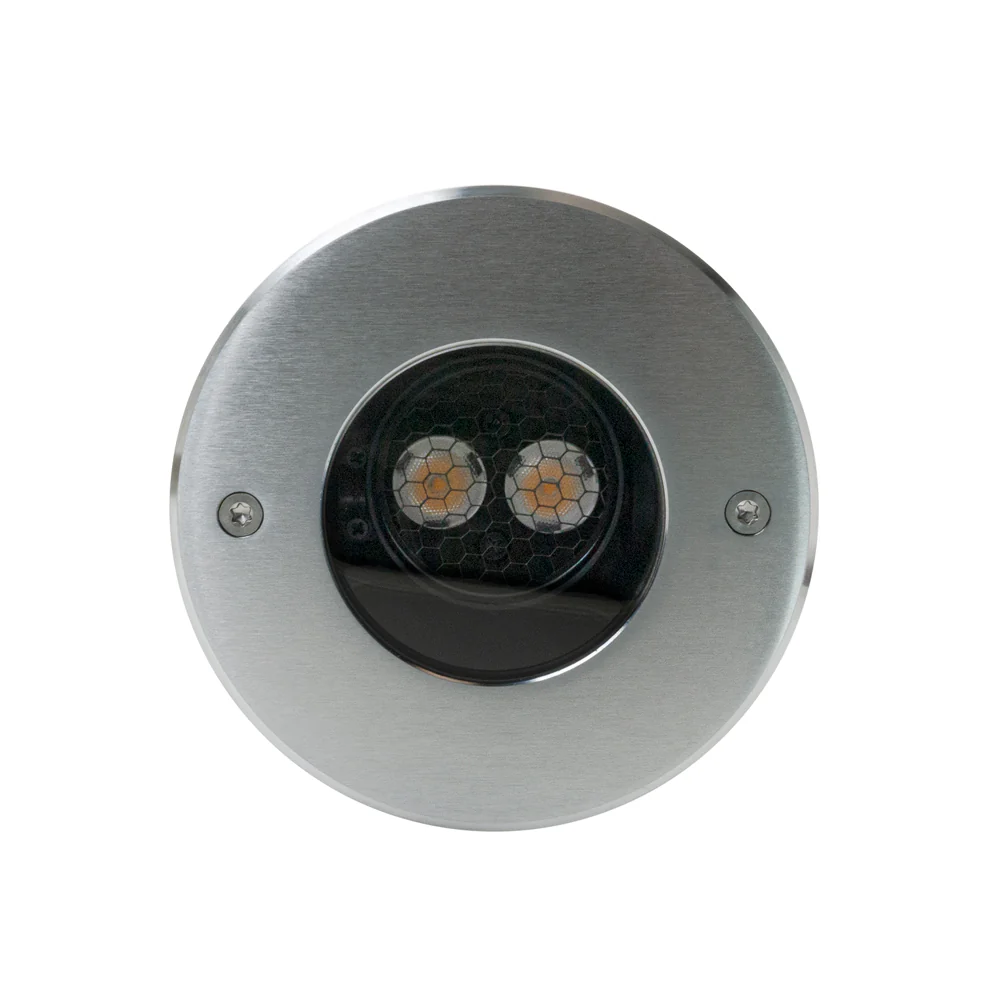

Light Source	2 x 1.5W LED
Total Power Consumption	3.6W
Color Temperature	3000K (Warm White)
Brightness	300 Lumens
Bulb Type	Integrated COB LED
Housing Material	Die-cast Aluminum body

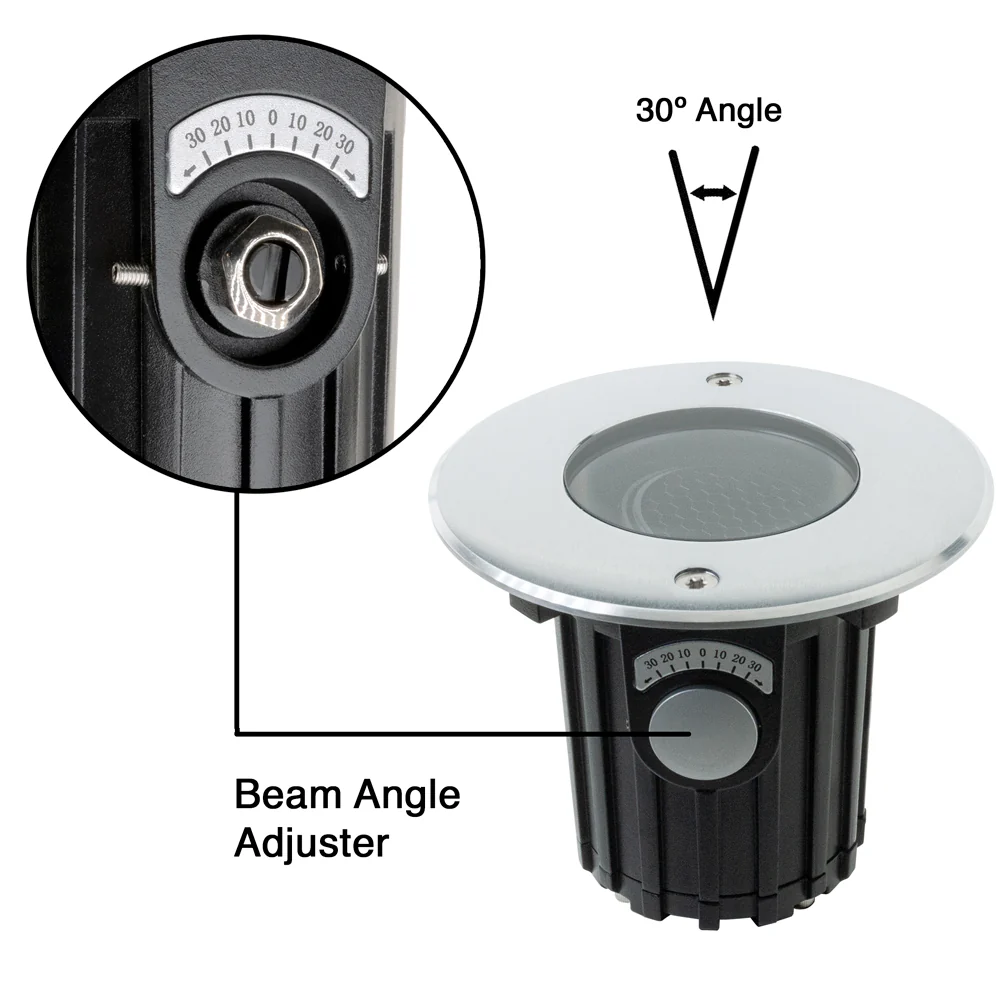

Beam Angle:	±30° (Adjustable beam direction)
Cap Material	Stainless Steel
IP Rating	IP67
IK Rating	IK09

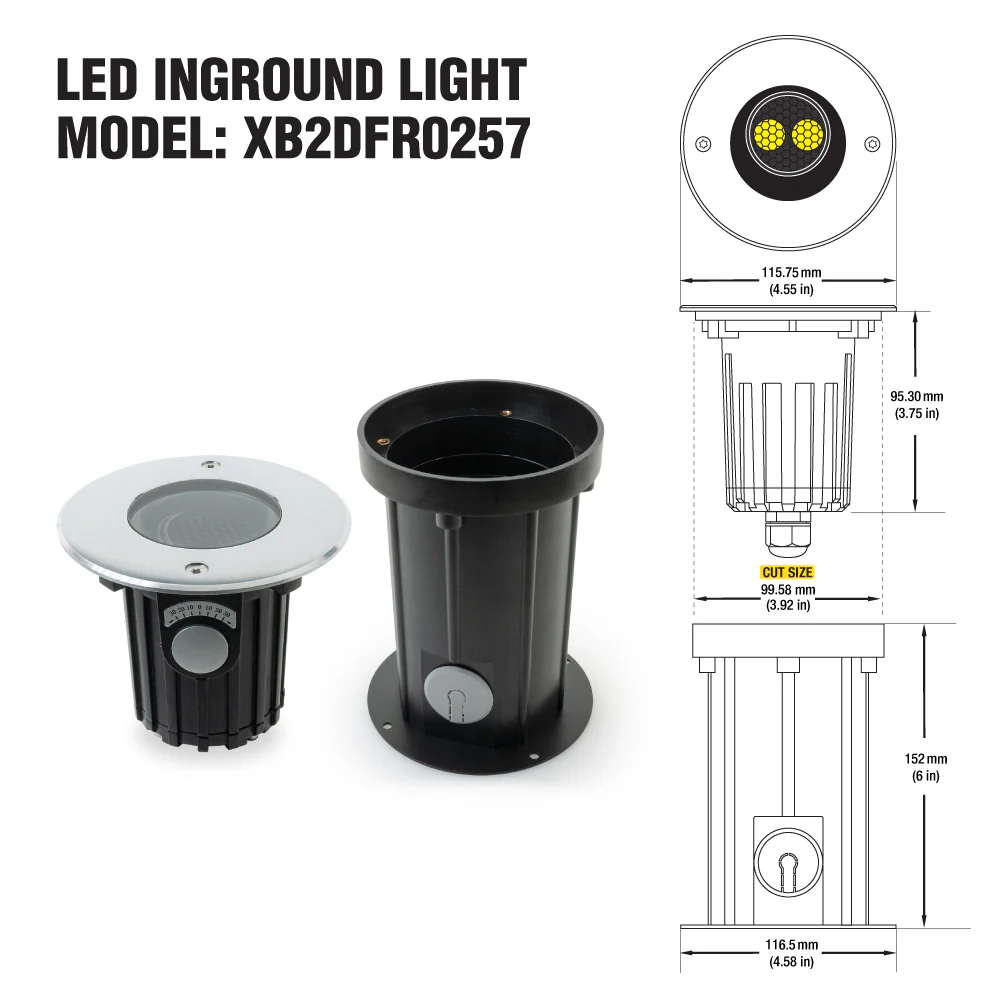

Cut Size	Ø99.58mm (3.92in)
Dimensions with Housing	Diameter – 115.75 mm (4.55 inches) Height – 152 mm (6 inches) Base Diameter – 116.5 mm (4.58 inches)
Dimensions without Housing	Diameter – 115.75 mm (4.55 inches) Height – 95.30 mm (3.75 inches)
Cable Size	530 x Ø7.5mm(21 x 0.3in)
Wire Gauge	2 x 16AWG
Certification



Features:

• Specifically designed for floor integration, offering versatile design possibilities in architectural illumination.
• Adjustable beam angle feature allows for precise light projection in the desired direction.

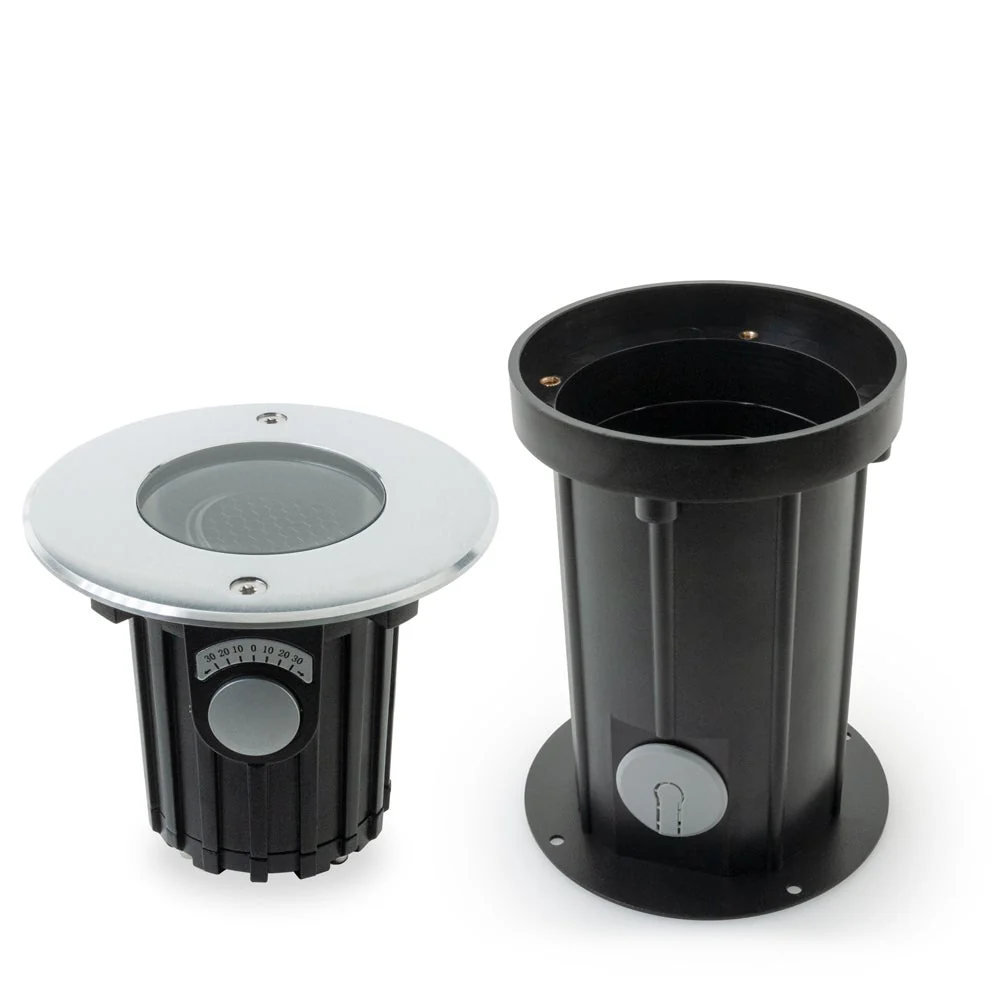

• Comes with 1.5 feet of wire and housing (optional installation using housing).
• Multiple lights can be connected to a single switch depending on the wattage of the transformer.
• Rated at IP67, ensuring the light remains lit in all weather conditions and is resistant to being stepped upon.
• Contact us for any queries or assistance with our high-quality products.
• Shipment available, subject to location.
• Comes with a 2-year store warranty for added assurance.
