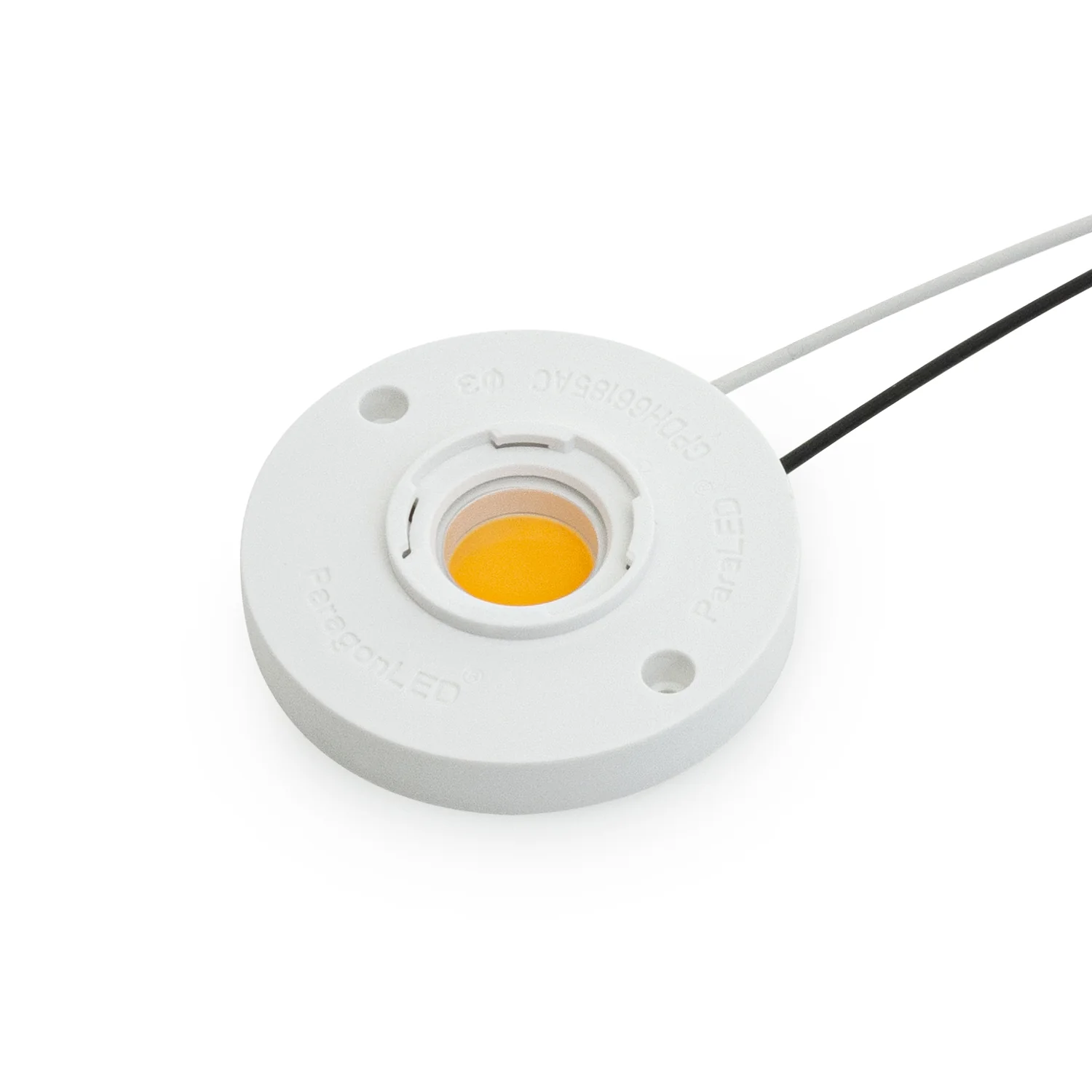

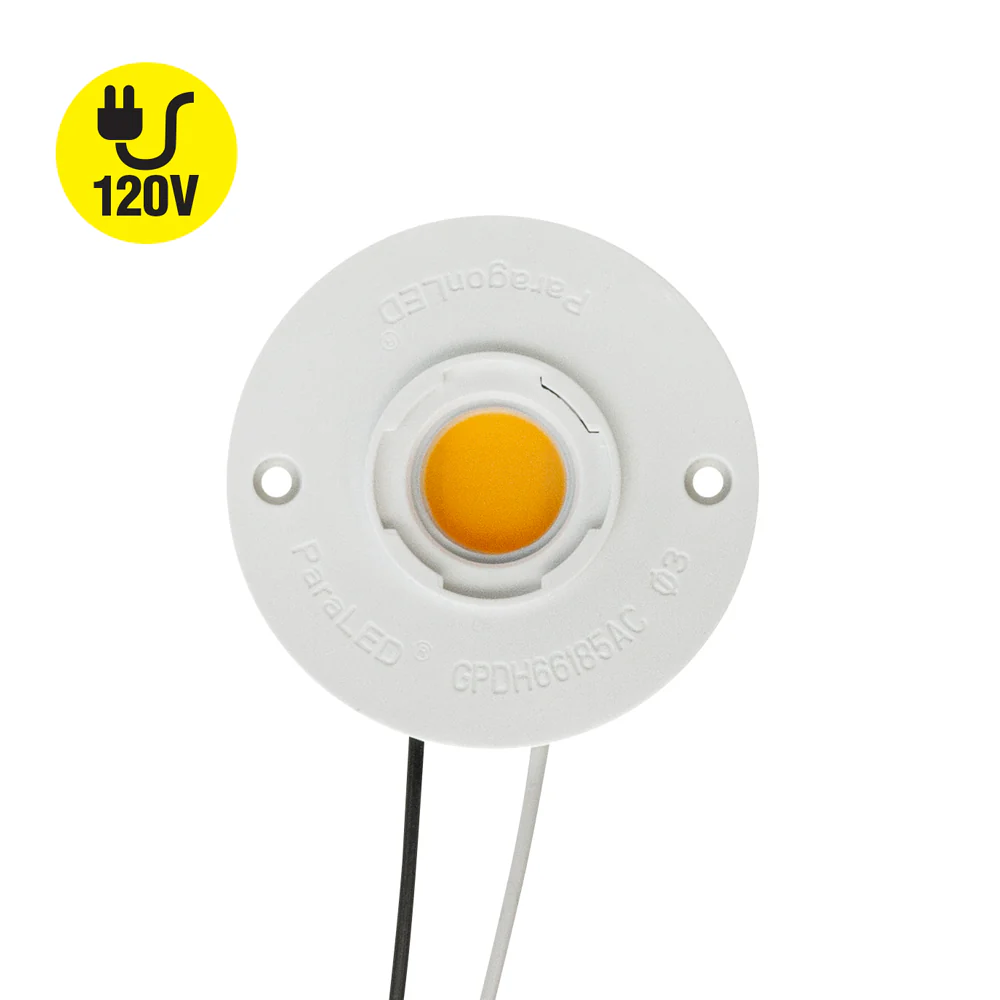

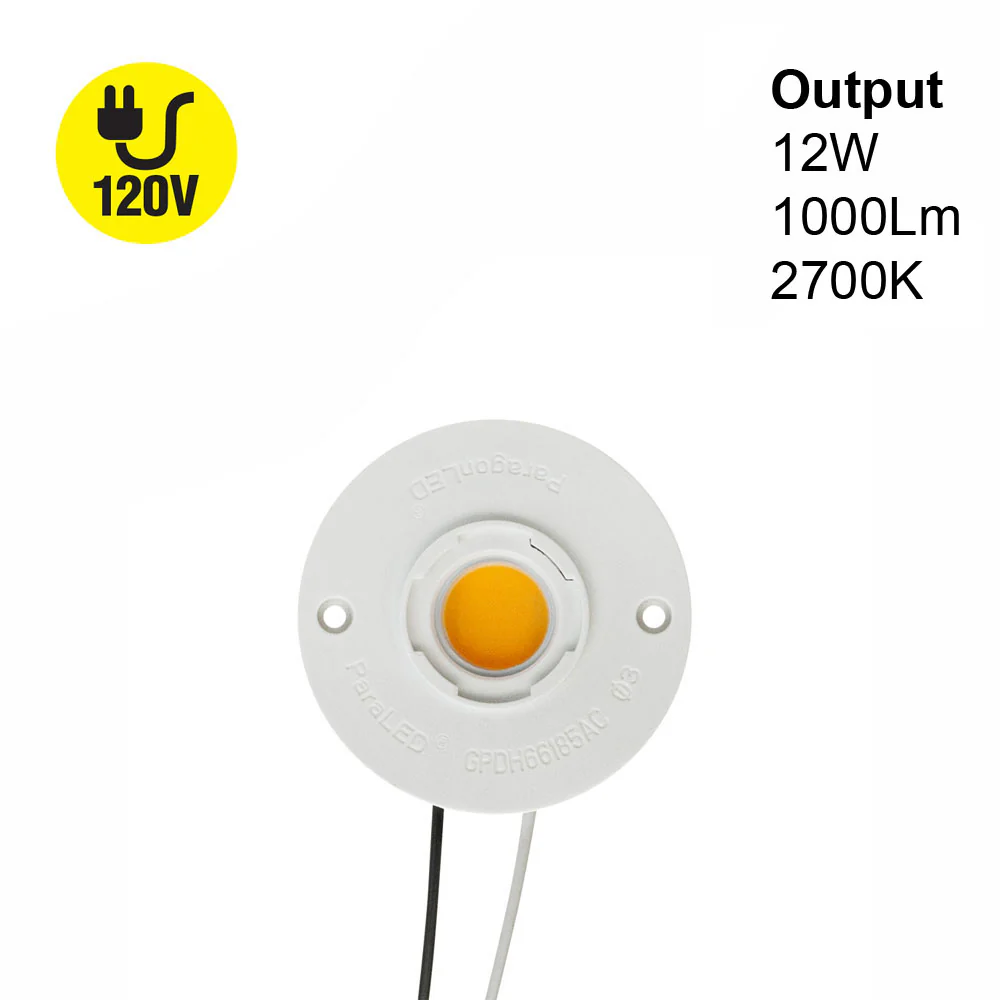

CBHT-42-36185-120V-27 COB Paragon LED Module with GPDH66185AC LED Holder, 120V 12W 2700K



Model No	CBHT-42-36185-120V-27
COB Holder Model No	GPDH66185AC
LED Type	COB LED
Wattage	12W
Voltage	120V AC
Power Factor	PF>0.98
Luminous Intensity	1000 lumens
Color Temperature	2700K (Soft White)
Dimmable	Yes
Rendering Index	CRI>90
IP Rating	IP20 (Indoor rated)

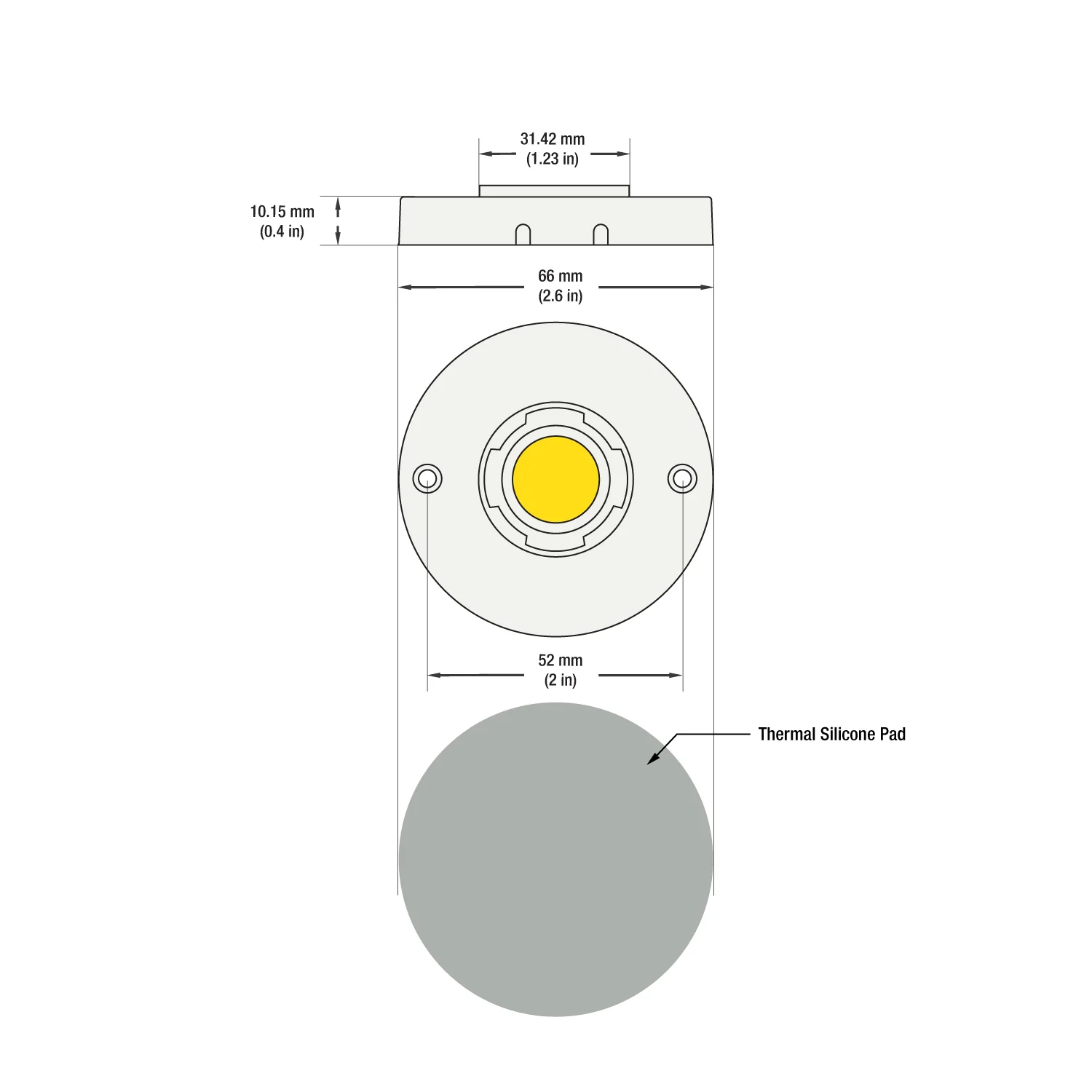

COB Holder Dimensions	∅66mm (2.6 in) x H12.60mm (0.5 in)
COB Module Outer Diameter	∅31.4 mm (1.2 in)
Operating Temperature	-40 ~ +105℃
Storage Temperature	-40 ~ +105℃
Assembly process Temperature	<300℃
Solder joint point	<105℃
Dielectric Breakdown Voltage of Thermal Pad	>4KV
Included Content	COB Module, PC lampshade (Diffuser), COB LED Array Holder, Thermal Pad
Certifications

Features:

• Low power consumption and high energy efficiency.
• Suitable for damp locations.
• Requires an aluminum heat sink to prevent overheating, which can cause serious luminous decay.
• COB LEDs are brighter, consume less power, and provide higher quality beam output compared to older LED technologies.
• It is important to ground light fixtures while designing lamps.
• This product includes a polycarbonate diffuser that can be easily attached or detached. The diffuser not only protects the module but also helps reduce glare and refract light in a wider beam.
• COB LEDs are commonly used in almost every kind of luminaire.

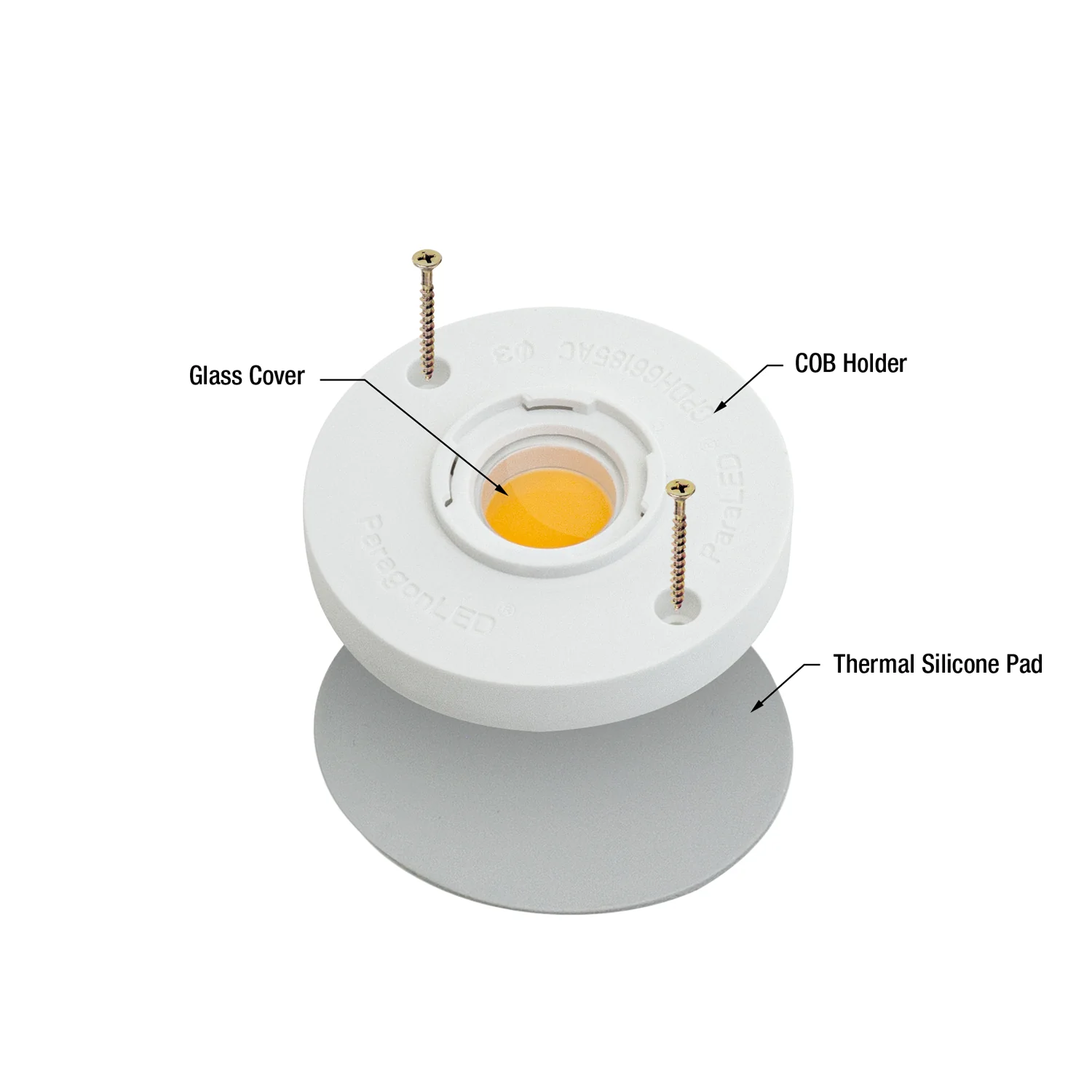

• The COB holder allows the module to be mechanically secured, electrically connected, and pressed to a heat sink.
• The silicone grease thermal pad provides a heat sink and aids in better heat dissipation, thereby increasing the lifespan of the module.
