OTTIMA OTM-TD12 Constant Current Triac Dimming LED Driver, 350mA 24-36V 12W

Model	OTM-TD12
Input Voltage	90-130V AC
Input Current	0.15A
Input Frequency	48-62Hz
Power Factor	PF>0.95
Efficiency	>85%
Output Regulated Current	350mA
Output Power	12W
Output Voltage	24-36V DC
Dimmable	Yes (Triac Dimming)
Ambient Temperature (Ta)	40°C
Case Temperature (Tc)	90°C
IP Rating	IP20 (Indoor use only)

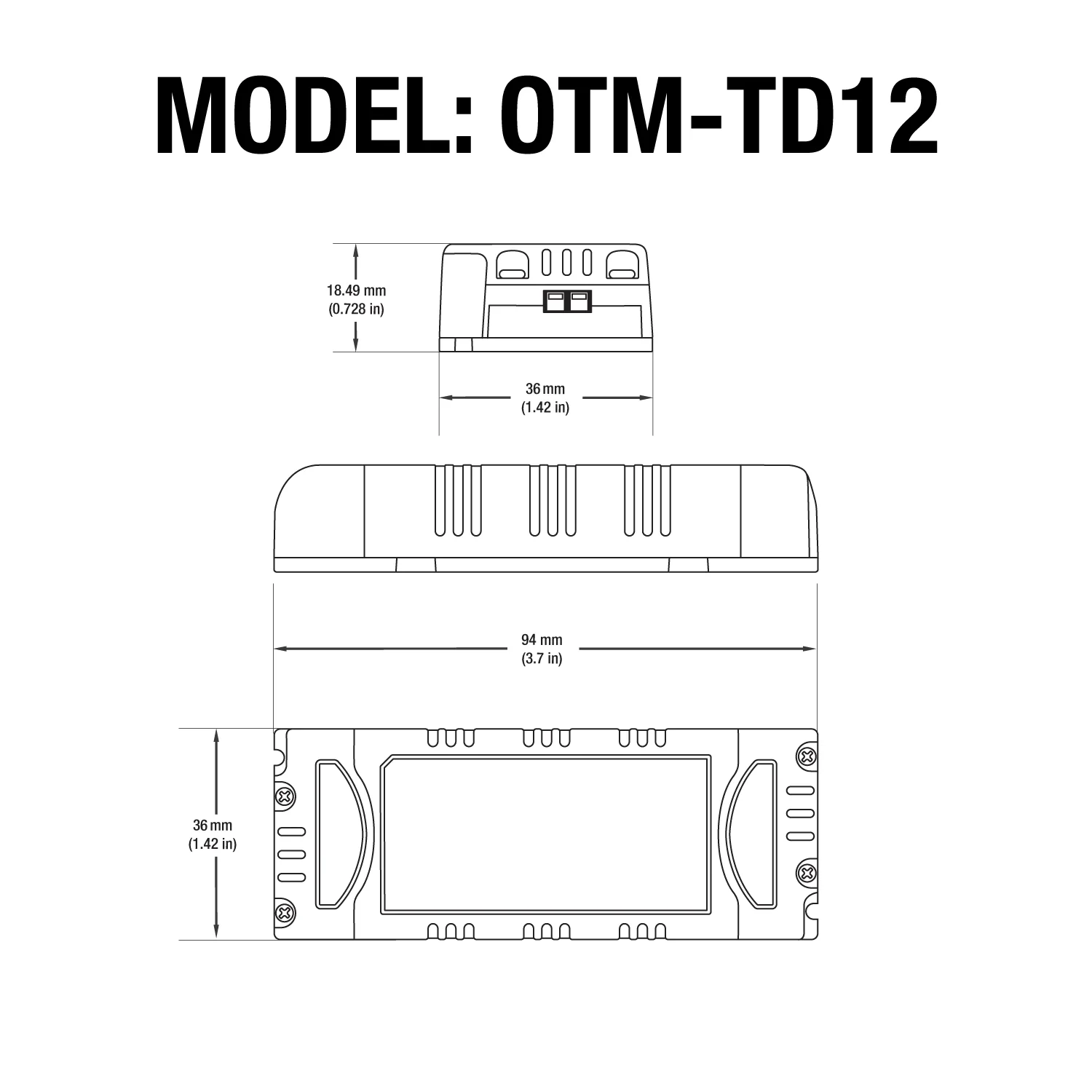

Dimensions	94 x 36 x 18.5 mm (3.7 x 1.42 x 0.72 in)
Class Certification	Class II
Certification



Features:

• OTTIMA OTM-TD12 Constant Current LED Driver
• Model number: OTM-TD12
• Input voltage range: 90-130V AC, input current: 0.15A, frequency range: 48-62Hz
• High power factor (PF > 0.95) and efficiency (>85%)
• Regulated output current: 350mA, output power: 12W
• Output voltage range: 24-36V DC
• Dimmable with Triac Dimming for adjustable brightness
• Ambient temperature (Ta): 40°C, case temperature (Tc): 90°C
• IP20 rating for indoor use
• Compact dimensions: 94 x 36 x 18.5 mm (3.7 x 1.42 x 0.72 in)
• Class II certification for double insulation and no grounding wire required
• Reliable and efficient solution for powering LED lights indoors with a constant current of 350mA and an output voltage range of 24-36V DC.
