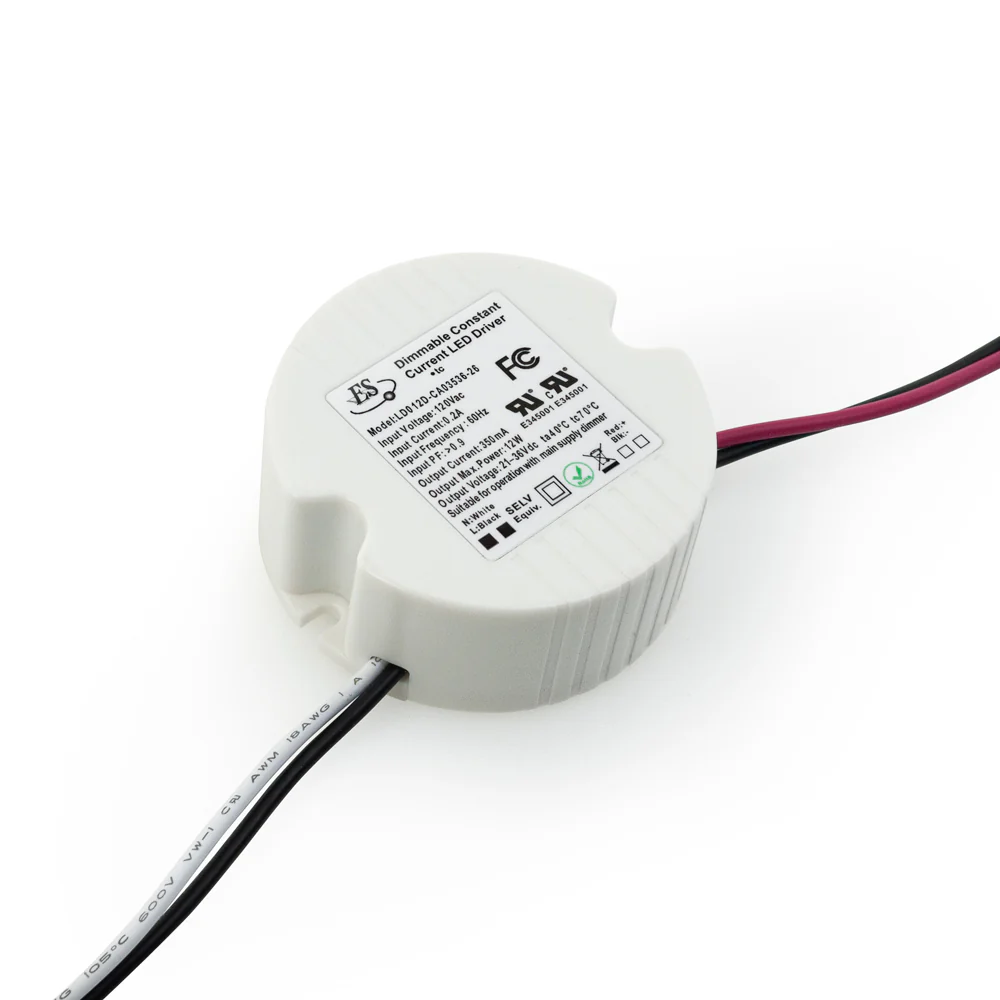

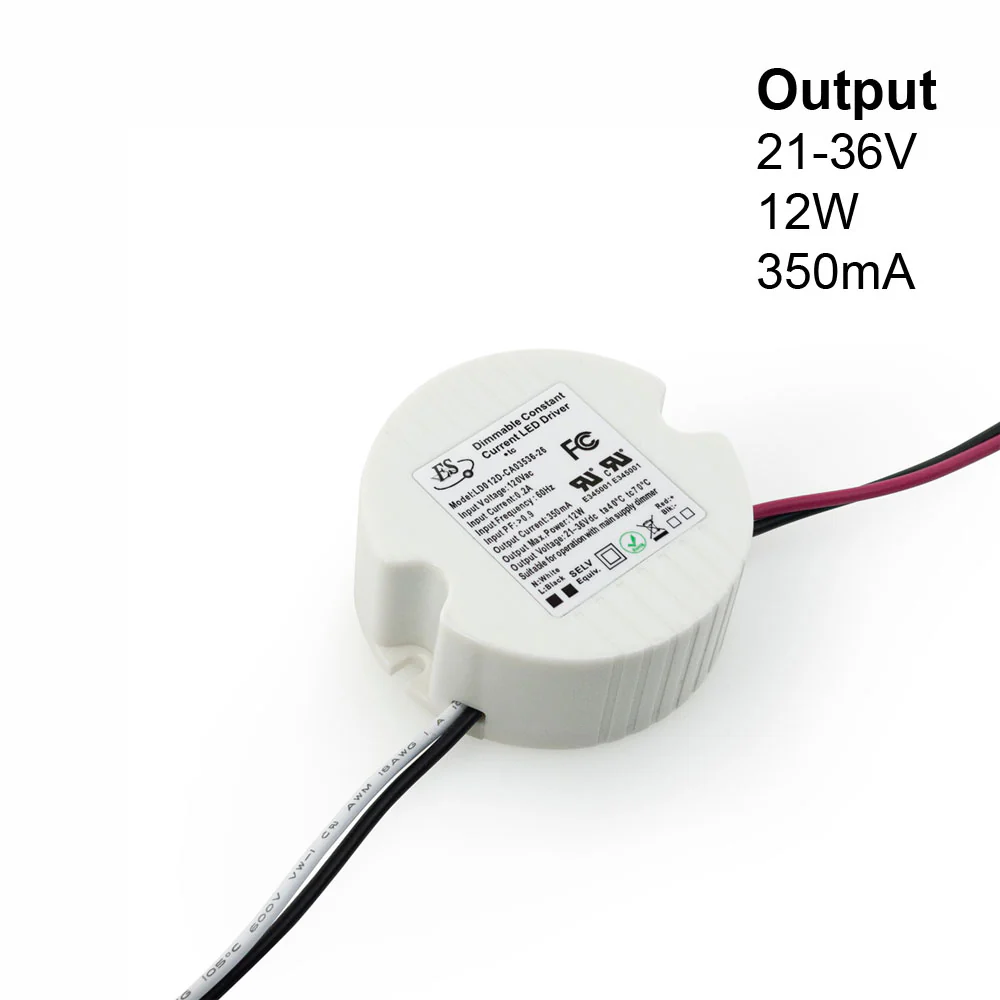

ES LD012D-CA03536-26 Constant Current LED Driver, 350mA 21-36V 12W max

Model	LD012D-CA03536-26
Input Voltage	120V AC
Input Current	0.2A
Frequency	60Hz
Power Factor	P.F>0.9
Output Regulated Current	350mA
Output Power	12W
Output Voltage	21-36V DC
Dimmable	Yes
Diameter	67mm (2.63 inches)
Depth	27mm (1.06 in)
Class Certification	Class II
Certifications

Suitable for operation with main supply dimmer

For Dry and Damp Locations



Features:

• ES LD012D-CA03536-26 Constant Current LED Driver for powering and controlling LED lights
• Input voltage of 120V AC and input current of 0.2A
• Operates at a frequency of 60Hz for reliable performance
• High power factor (P.F > 0.9) for energy efficiency and reduced power loss
• Regulated current output of 350mA suitable for LED lights with a voltage range of 21-36V DC
• Maximum output power of 12W
• Dimmable functionality for customizable lighting settings
• Compact circular design with a diameter of 67mm (2.63 inches) and a depth of 27mm (1.06 in)
• Class II classification for enhanced safety with double insulation against electrical shock
