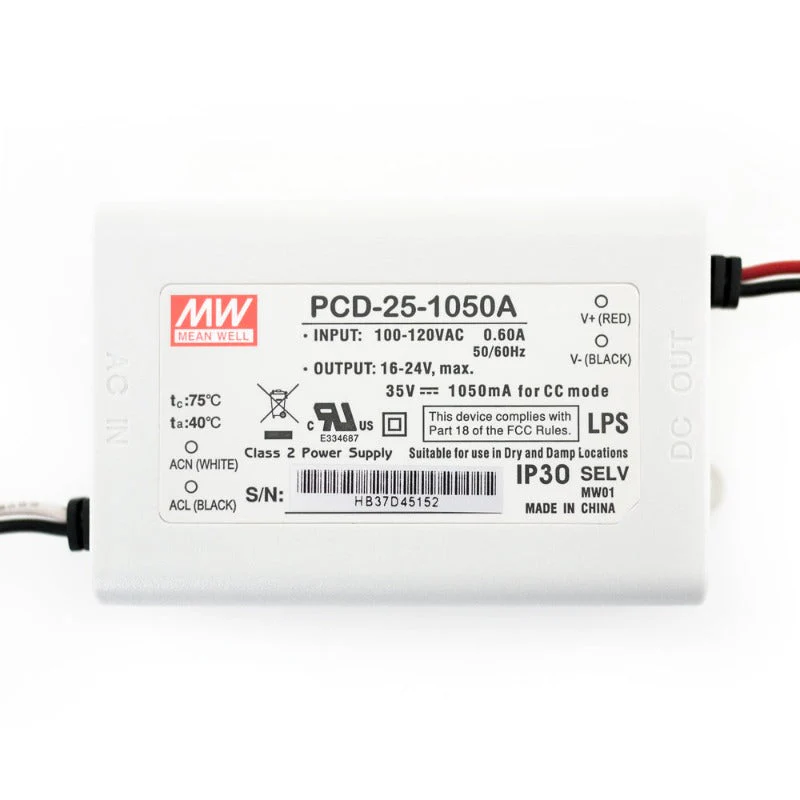

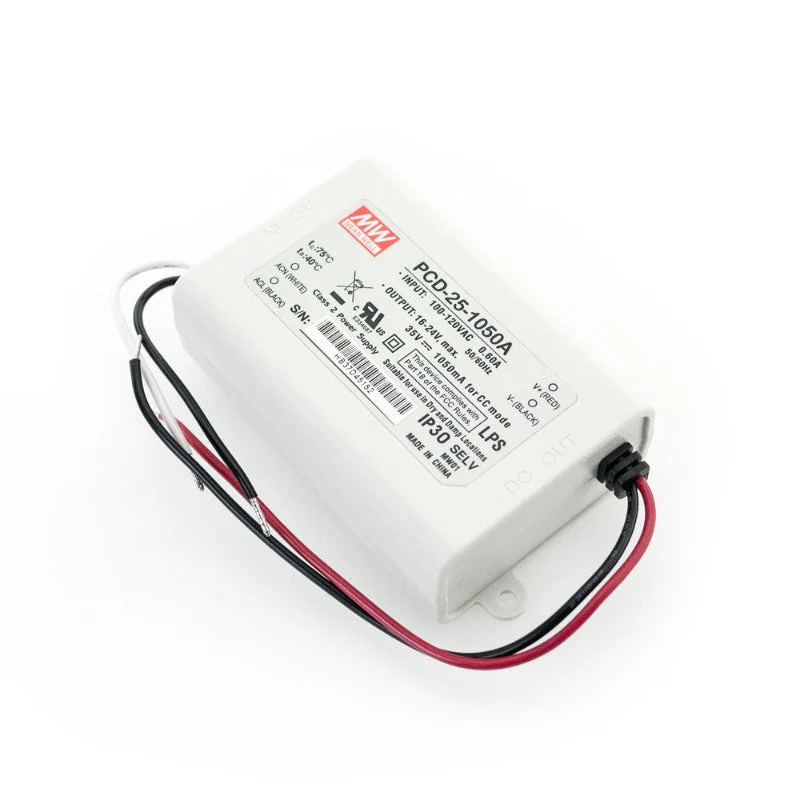

Mean Well PCD-25-1050A Constant Current LED Driver, 1050mA 16-24V 25W—
$35.24
The Story
| Model | PCD-25-1050A |
| Input Voltage | 100-120V AC |
| Input Current | 0.60A |
| Frequency | 50/60Hz |
| Output Voltage | 16-24V DC |
| Output Regulated Current: | 1050mA |
| Output Power | 25W |
| Dimmable | Yes |
| IP Rating | IP30 (Indoor Rated) |
| Dimensions | 83 x 56.84 x 29.30mm (3.26 x 2.23 x 1.15 in) |
| Class Certification | Class 2/ Class II |
| Certification |

|
Features:
- It regulates the power supply to LED lights
- Operates within an input voltage range of 100-120V AC
- Input current of 0.60A and frequency of 50/60Hz
- Output voltage ranges from 16-24V DC
- Provides a regulated current of 1050mA with an output power of 25W
- Dimmable, allowing users to adjust the brightness of their LED lights
- IP30 rating, suitable for indoor use and protected against dust
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Model | PCD-25-1050A |
| Input Voltage | 100-120V AC |
| Input Current | 0.60A |
| Frequency | 50/60Hz |
| Output Voltage | 16-24V DC |
| Output Regulated Current: | 1050mA |
| Output Power | 25W |
| Dimmable | Yes |
| IP Rating | IP30 (Indoor Rated) |
| Dimensions | 83 x 56.84 x 29.30mm (3.26 x 2.23 x 1.15 in) |
| Class Certification | Class 2/ Class II |
| Certification |
|
Features:
- It regulates the power supply to LED lights
- Operates within an input voltage range of 100-120V AC
- Input current of 0.60A and frequency of 50/60Hz
- Output voltage ranges from 16-24V DC
- Provides a regulated current of 1050mA with an output power of 25W
- Dimmable, allowing users to adjust the brightness of their LED lights
- IP30 rating, suitable for indoor use and protected against dust
