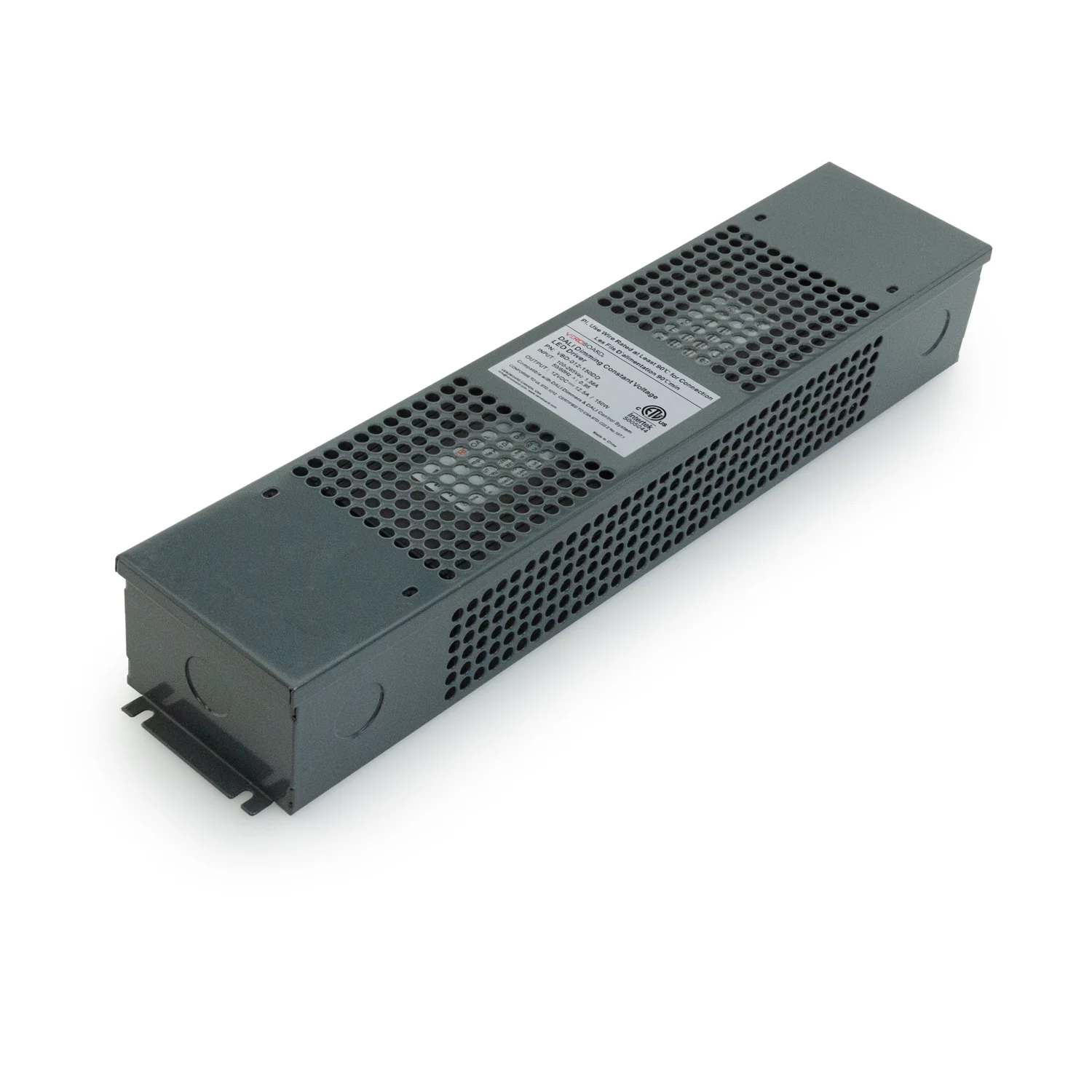

VBD-012-150DD Dali Dimmable Constant Voltage LED Driver, 12V 12.5A 150W

Model	VBD-012-150DD
Input Voltage	100-265V AC
Input Current	1.56A
Frequency	50/60 Hz
Output Voltage	12V DC
Output regulated Current	12.5A
Output Power	150W max
Power Factor	0.95
Dimmable	Yes (Dali Dimming)
IP Rating	IP65
Dimensions (Without Box)	234 x 76 x 43mm (9.2 x 3 x 1.6 in)
Dimensions (Box)	394 x 84 x 60mm (15.5 x 3.3 x 2.5 in)
Certification

Features:

• Input Voltage Range: 100V to 265V AC, compatible with a wide range of power sources.
• Input Current: 1.56A, indicating the amount of current drawn from the input power source.
• Frequency: 50/60 Hz, suitable for standard power frequencies.
• Power Factor: 0.95, ensuring efficient power utilization.
• Output Voltage: 12V DC, providing a constant voltage for LED lighting systems.
• Output Regulated Current: 12.5A, capable of supplying a stable current for LED applications.
• Maximum Output Power: 150W, suitable for powering LED lights with high power requirements.
• Dimmable Capability: Supports Dali Dimming, allowing for adjustable brightness levels.
• IP Rating: IP65, indicating water resistance and suitability for use in wet locations.
• Dimensions without Box: 234 x 76 x 43mm (9.2 x 3 x 1.6 in), compact size for easy installation.
• Dimensions with Box: 394 x 84 x 60mm (15.5 x 3.3 x 2.5 in), including the box dimensions.
• Input Voltage Range: 100V to 265V AC, compatible with a wide range of power sources.
• Input Current: 1.56A, indicating the amount of current drawn from the input power source.
• Frequency: 50/60 Hz, suitable for standard power frequencies.
• Power Factor: 0.95, ensuring efficient power utilization.
• Output Voltage: 12V DC, providing a constant voltage for LED lighting systems.
• Output Regulated Current: 12.5A, capable of supplying a stable current for LED applications.
• Maximum Output Power: 150W, suitable for powering LED lights with high power requirements.
• Dimmable Capability: Supports Dali Dimming, allowing for adjustable brightness levels.
• IP Rating: IP65, indicating water resistance and suitability for use in wet locations.
• Dimensions without Box: 234 x 76 x 43mm (9.2 x 3 x 1.6 in), compact size for easy installation.
• Dimensions with Box: 394 x 84 x 60mm (15.5 x 3.3 x 2.5 in), including the box dimensions.
