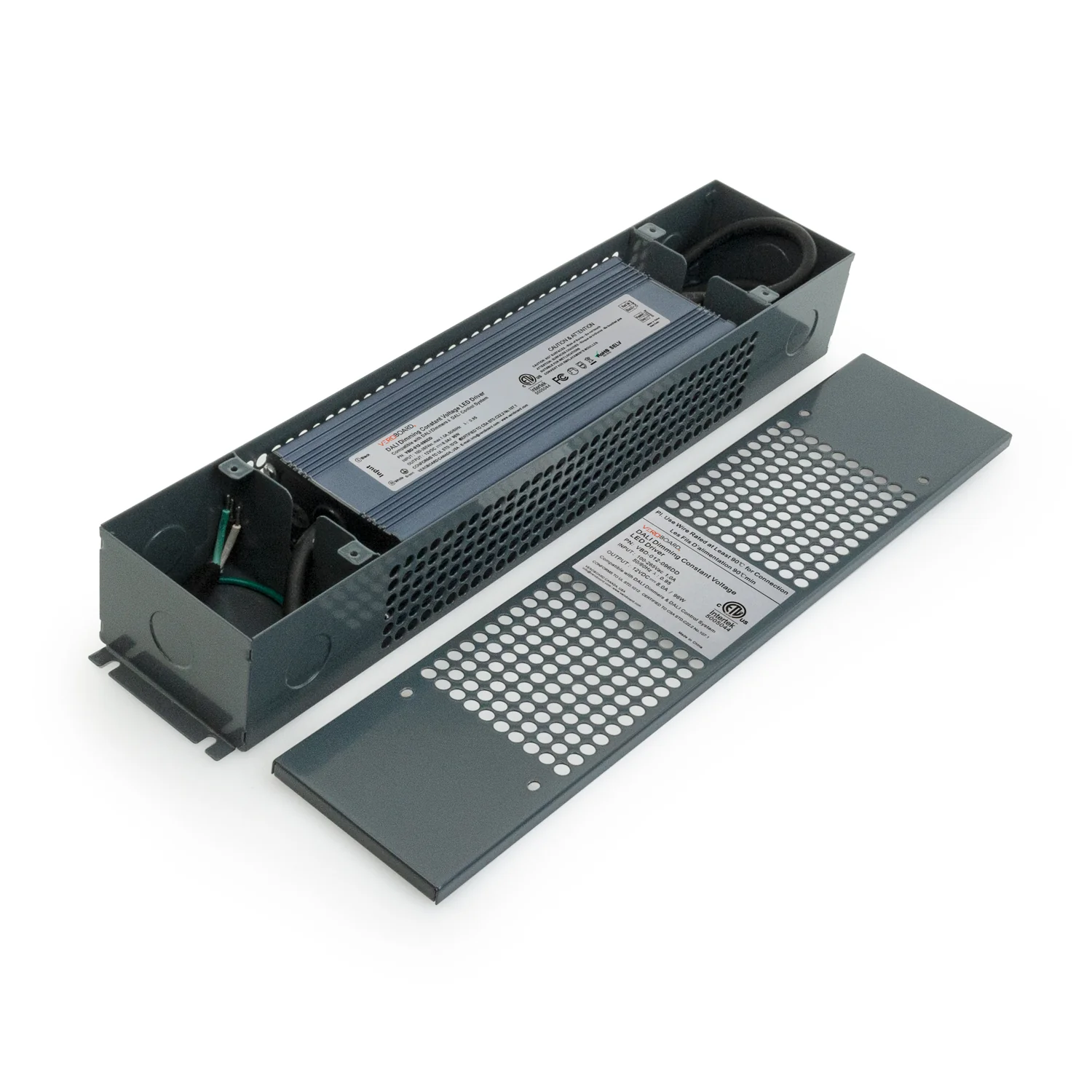

VBD-012-096DD Dali Dimmable Constant Voltage LED Driver, 12V 8A 96W

Model	VBD-012-096DD
Input Voltage	100-265V AC
Input Current	1.0A
Frequency	50/60 Hz
Output Voltage	12V DC
Output regulated Current	8.0A
Output Power	96W max
Power Factor	0.95
Dimmable	Yes (Dali Dimming)
IP Rating	IP65
Dimensions (Without Box)	203 x 67 x 40mm (8 x 2.6 x 1.5 in)
Dimensions (Box)	362 x 78 x 58mm (14.25 x 3 x 2.25 in)
Certification

Features:

• Output Voltage: 12V DC, providing a constant voltage suitable for LED lighting systems.
• Output Current: 8.0A, capable of delivering a stable current for LED applications.
• Maximum Output Power: 96W, suitable for powering LED lights with high power requirements.
• Input Voltage Range: 100V to 265V AC, compatible with a wide range of power sources.
• Input Current: 1.0A, indicating the amount of current drawn from the input power source.
• Frequency Range: 50/60 Hz, suitable for standard power frequencies.
• Power Factor: 0.95, ensuring efficient power utilization.
• Dimmable Capability: Supports Dali dimming technology, allowing for adjustable brightness levels.
• IP Rating: IP65, providing protection against dust and water, suitable for wet and damp locations.
• Dimensions without Box: 203 x 67 x 40mm (8 x 2.6 x 1.5 in), compact size for easy installation.
• Dimensions with Box: 362 x 78 x 58mm (14.25 x 3 x 2.25 in), including the box dimensions.
• Certification: Certified by ETL and FCC, ensuring safety and compliance with standards.
