$65.93

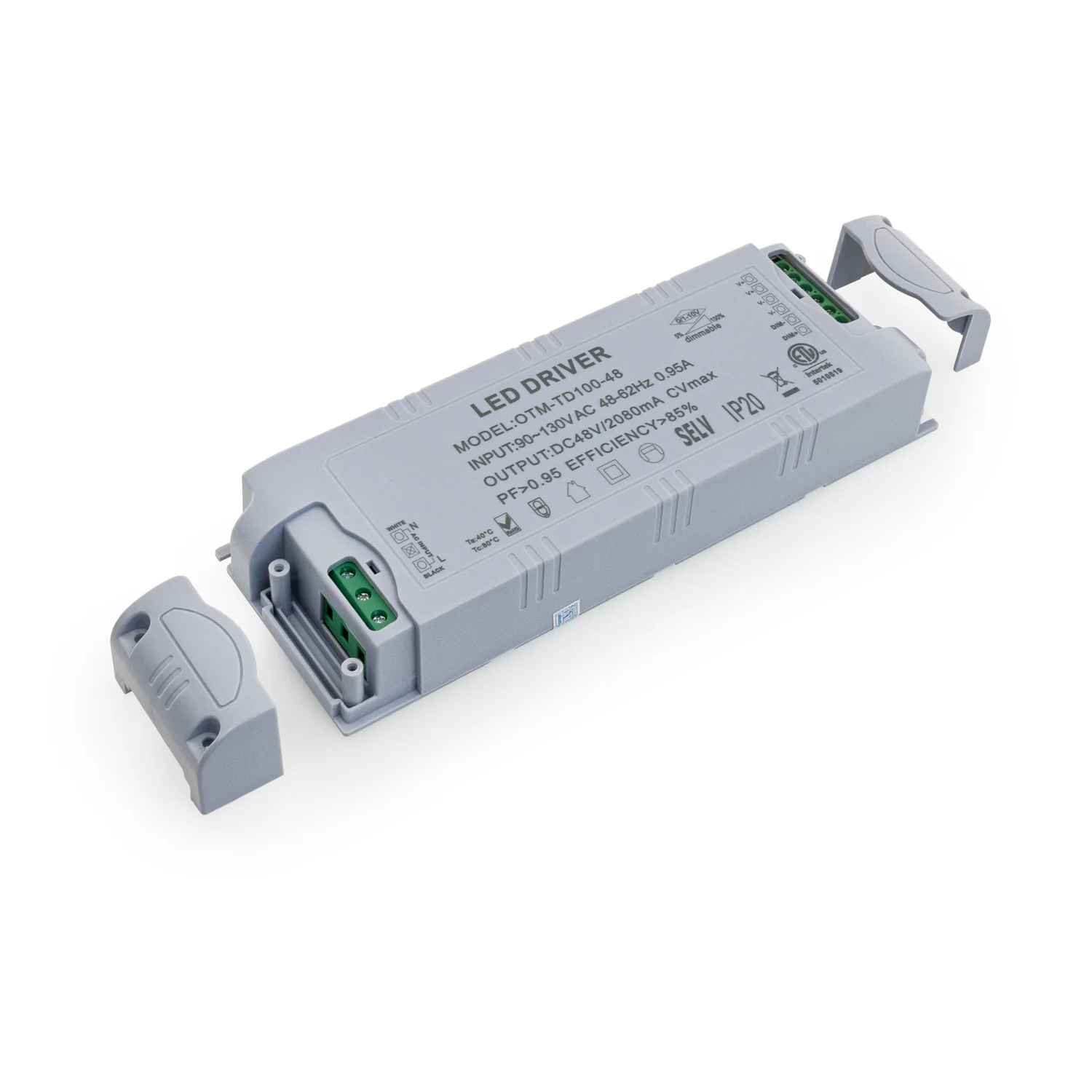

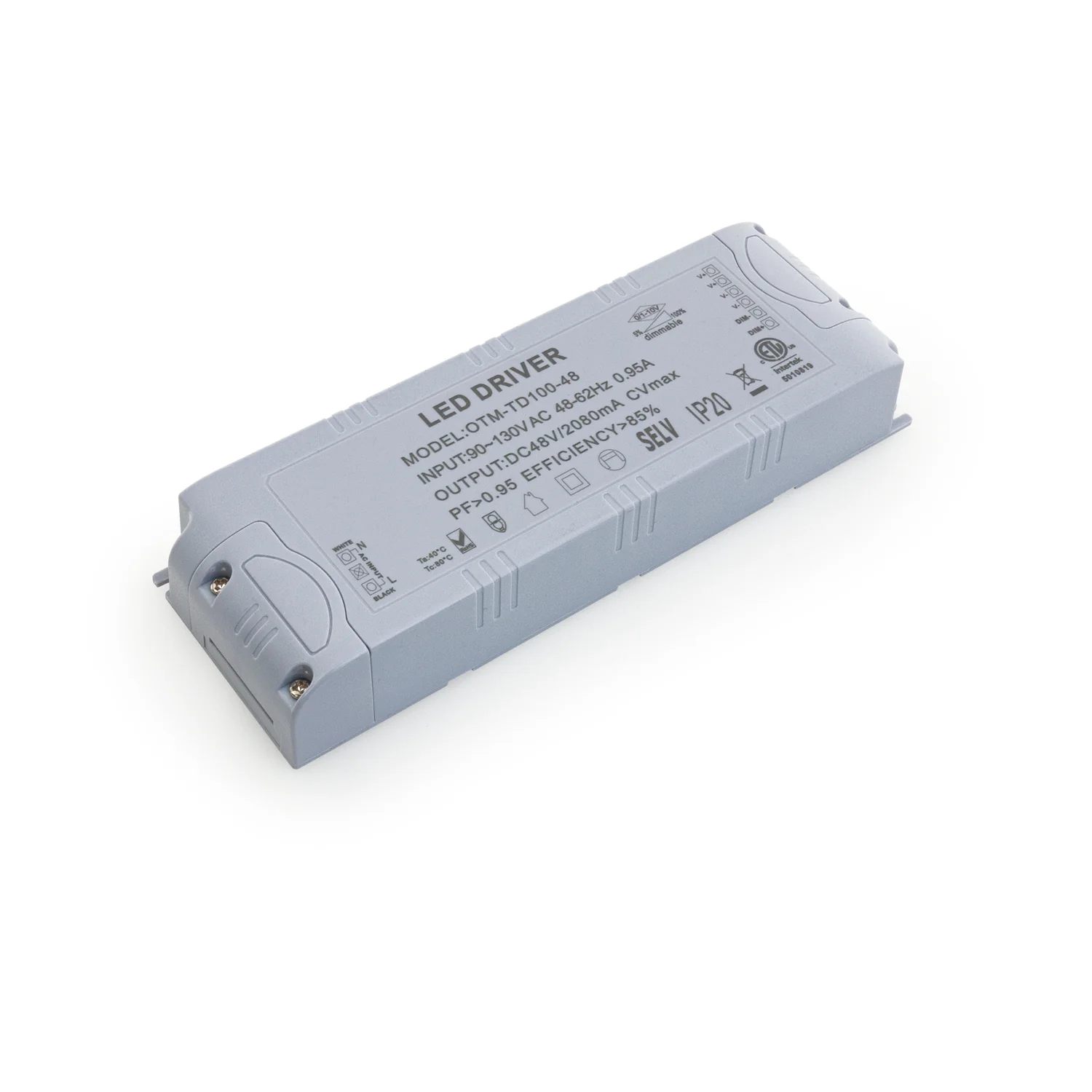

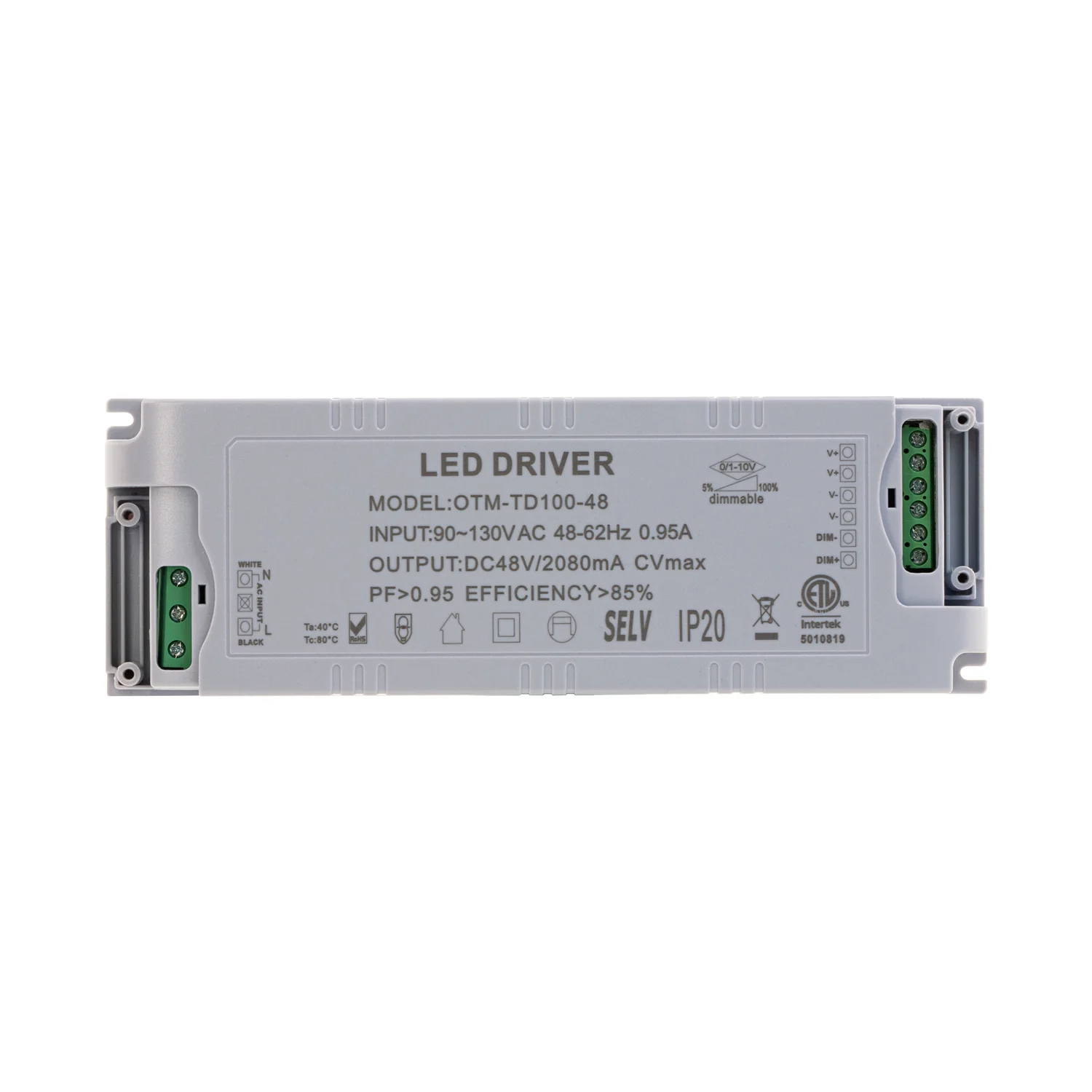

OTM-TD100-48 Constant Voltage LED Driver, 0-10V Dimmable LED Driver 48V 100W—
$65.93
The Story
| Model | OTM-TD100-48 |
| Input Voltage | 90-130V AC |
| Input Current | 0.95A |
| Frequency | 48-62Hz |
| Efficiency | 85% |
| Power Factor | PF>0.95 |
| Output Voltage | 48V DC |
| Output regulated Current | 2080mA |
| Output max Power | 100W max |
| Dimmable: | Yes (0-10V dimming) |
| IP Rating | IP20 |
| Class Certification | Class II |
| Dimensions | 132.45mm x 62.82mm (5.21in x 2.47in ) |
| Certifications |  |
| Short Circuit and Overload Protection |
| Suitable for dry and damp locations |
Features:
- The model number for this LED driver is OTM-TD100-48.
- It provides a constant voltage output of 48V DC for LED lighting systems.
- Input voltage range: 90-130V AC, input current: 0.95A, frequency range: 48-62Hz.
- Efficiency: 85%, power factor: >0.95, indicating good power factor correction.
- Regulated current output: 2080mA, maximum output power: 100W.
- Dimmable using 0-10V dimming techniques, allowing for easy control of brightness.
- Rated for indoor use with an IP20 rating and Class II certification (double insulation, no ground connection required).
- Dimensions without the box: L190.50mm x W63.63mm (7.5 x 2.5 in).
- Dimensions with the box: 328.60 x 75.36 x 56.26mm (12.93 x 2.96 x 2.21 in).
- ETL certified, ensuring it meets safety standards set by the Electrical Testing Laboratories.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Model | OTM-TD100-48 |
| Input Voltage | 90-130V AC |
| Input Current | 0.95A |
| Frequency | 48-62Hz |
| Efficiency | 85% |
| Power Factor | PF>0.95 |
| Output Voltage | 48V DC |
| Output regulated Current | 2080mA |
| Output max Power | 100W max |
| Dimmable: | Yes (0-10V dimming) |
| IP Rating | IP20 |
| Class Certification | Class II |
| Dimensions | 132.45mm x 62.82mm (5.21in x 2.47in ) |
| Certifications | |
| Short Circuit and Overload Protection |
| Suitable for dry and damp locations |
Features:
- The model number for this LED driver is OTM-TD100-48.
- It provides a constant voltage output of 48V DC for LED lighting systems.
- Input voltage range: 90-130V AC, input current: 0.95A, frequency range: 48-62Hz.
- Efficiency: 85%, power factor: >0.95, indicating good power factor correction.
- Regulated current output: 2080mA, maximum output power: 100W.
- Dimmable using 0-10V dimming techniques, allowing for easy control of brightness.
- Rated for indoor use with an IP20 rating and Class II certification (double insulation, no ground connection required).
- Dimensions without the box: L190.50mm x W63.63mm (7.5 x 2.5 in).
- Dimensions with the box: 328.60 x 75.36 x 56.26mm (12.93 x 2.96 x 2.21 in).
- ETL certified, ensuring it meets safety standards set by the Electrical Testing Laboratories.
