$30.84

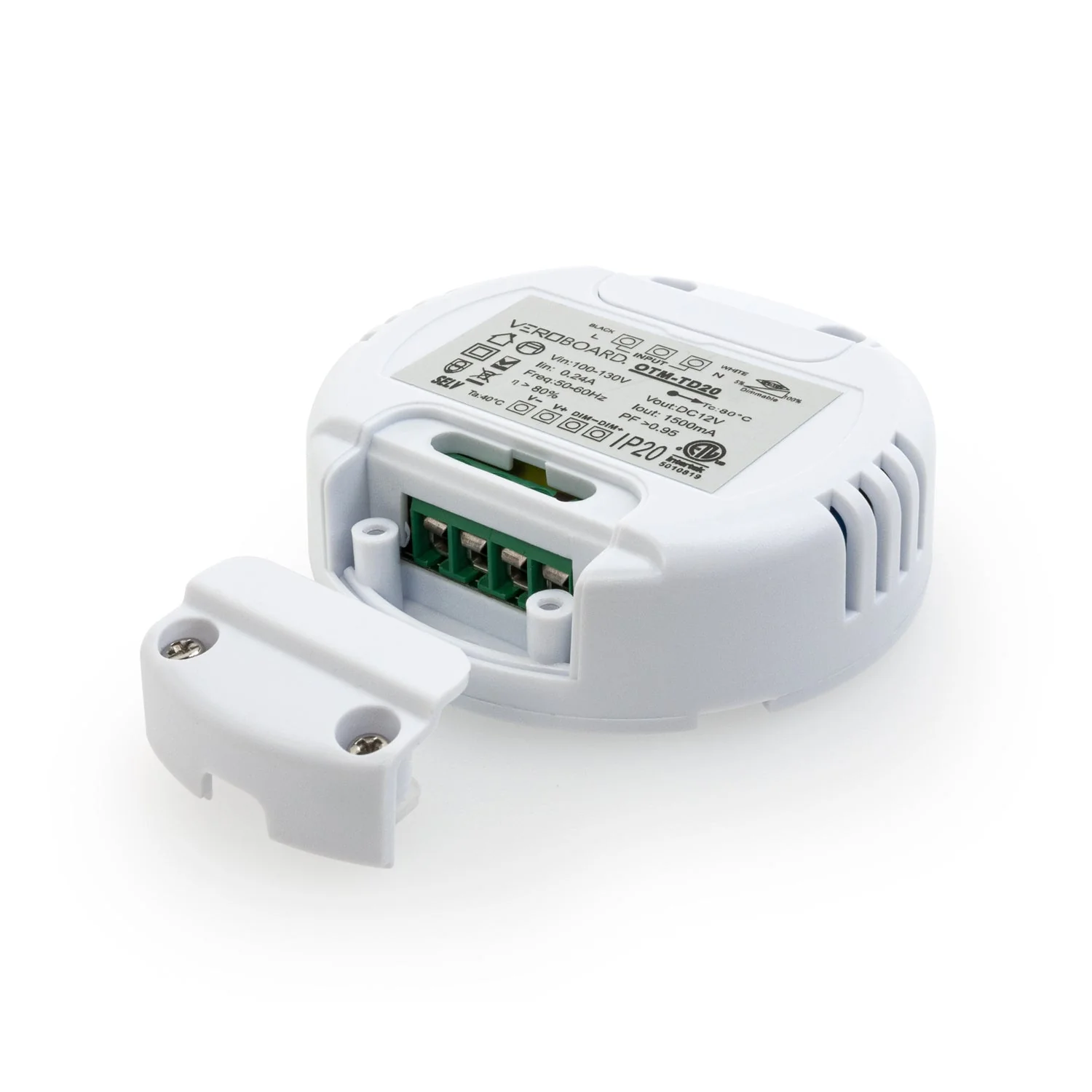

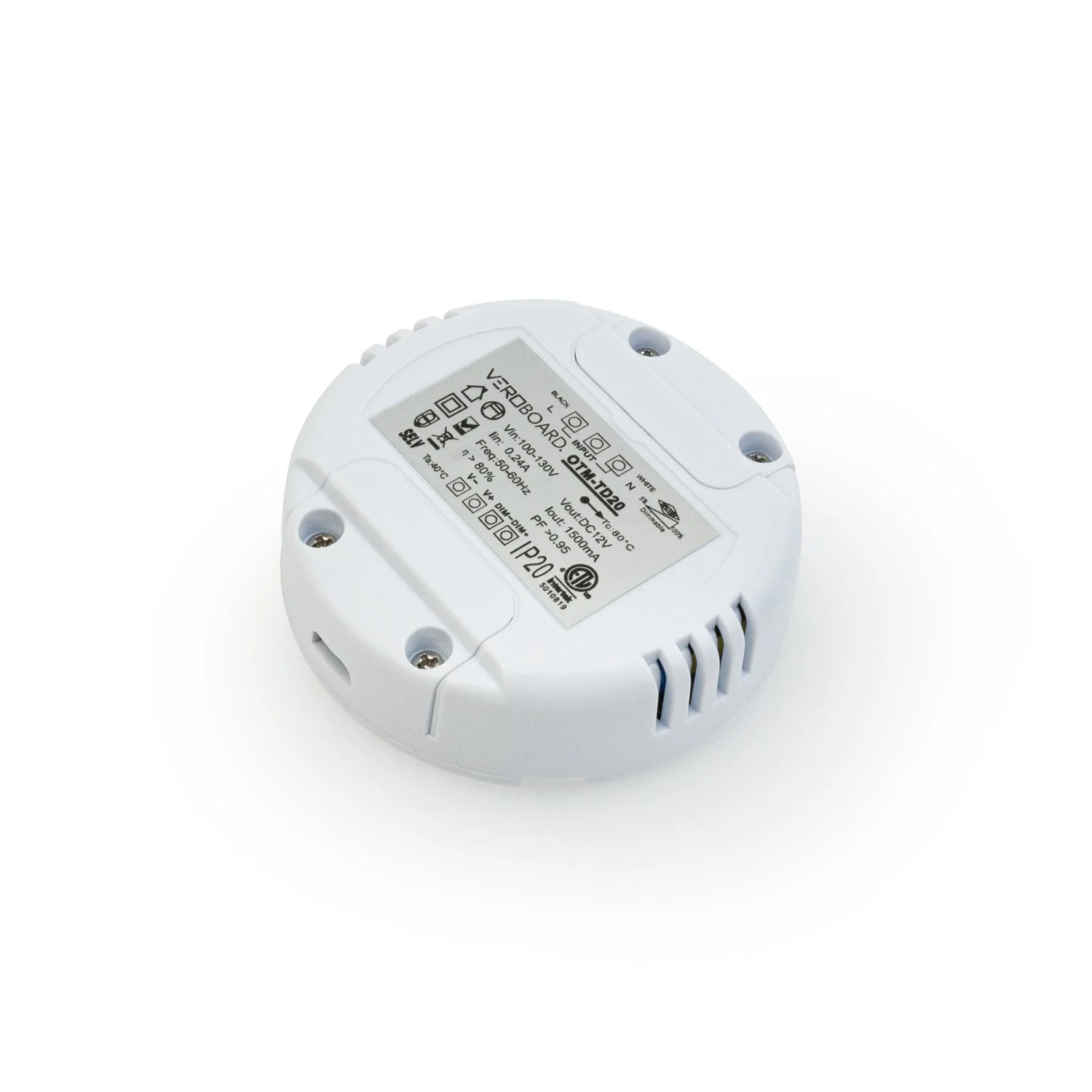

OTM-TD20 Constant Voltage LED Driver, 0-10V Dimming LED Driver 12V 18W—
$30.84
The Story
| Model | OTM-TD20 |
| Input Voltage | 100-130V AC |
| Input Current | 0.24A |
| Frequency | 50-60Hz |
| Efficiency | >80% |
| Output Voltage | 12V DC |
| Output regulated Current | 1500mA |
| Output Power | 18W max |
| Power Factor | >0.95 |
| Dimmable | Yes (0-10V Dimming) |
| IP Rating | IP20 |
| Ambient Temperature (Ta) | 40°C |
| Case Temperature (Tc) | 80°C |
| Class Certification | Class II/ SELV |
| Dimensions | 66.16mm x 20.15mm (2.6 in) Dia x (0.8 in) Depth |
| Certification |

|
|
Compatible with 0-10V Dimmers |
| Applicable for Dry and Damp locations |
| Short circuit and Overload Protected |
| Class II Power Supply, Double-layer insulation |
| Easily fits in a 1-Gang Standard Box or Single Gang Box |
Features:
- Model number: OTM-TD20
- Constant voltage LED driver with 0-10V dimming support
- Input voltage range: 100-130V AC
- Input current: 0.24A
- Frequency: 50-60Hz
- Efficiency >80%
- Output voltage: 12V DC
- Regulated current: 1500mA
- Maximum power output: 18W
- Power factor >0.95
- IP rating: IP20
- Ambient temperature: up to 40°C
- Maximum case temperature: 80°C
- Class II/SELV certified for protection against electric shock
- Dimensions: 66.16mm x 20.15mm (2.6 in) diameter x (0.8 in) depth
- ETL certified for safety and performance standards in the US and Canada.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Model | OTM-TD20 |
| Input Voltage | 100-130V AC |
| Input Current | 0.24A |
| Frequency | 50-60Hz |
| Efficiency | >80% |
| Output Voltage | 12V DC |
| Output regulated Current | 1500mA |
| Output Power | 18W max |
| Power Factor | >0.95 |
| Dimmable | Yes (0-10V Dimming) |
| IP Rating | IP20 |
| Ambient Temperature (Ta) | 40°C |
| Case Temperature (Tc) | 80°C |
| Class Certification | Class II/ SELV |
| Dimensions | 66.16mm x 20.15mm (2.6 in) Dia x (0.8 in) Depth |
| Certification |
|
|
Compatible with 0-10V Dimmers |
| Applicable for Dry and Damp locations |
| Short circuit and Overload Protected |
| Class II Power Supply, Double-layer insulation |
| Easily fits in a 1-Gang Standard Box or Single Gang Box |
Features:
- Model number: OTM-TD20
- Constant voltage LED driver with 0-10V dimming support
- Input voltage range: 100-130V AC
- Input current: 0.24A
- Frequency: 50-60Hz
- Efficiency >80%
- Output voltage: 12V DC
- Regulated current: 1500mA
- Maximum power output: 18W
- Power factor >0.95
- IP rating: IP20
- Ambient temperature: up to 40°C
- Maximum case temperature: 80°C
- Class II/SELV certified for protection against electric shock
- Dimensions: 66.16mm x 20.15mm (2.6 in) diameter x (0.8 in) depth
- ETL certified for safety and performance standards in the US and Canada.
