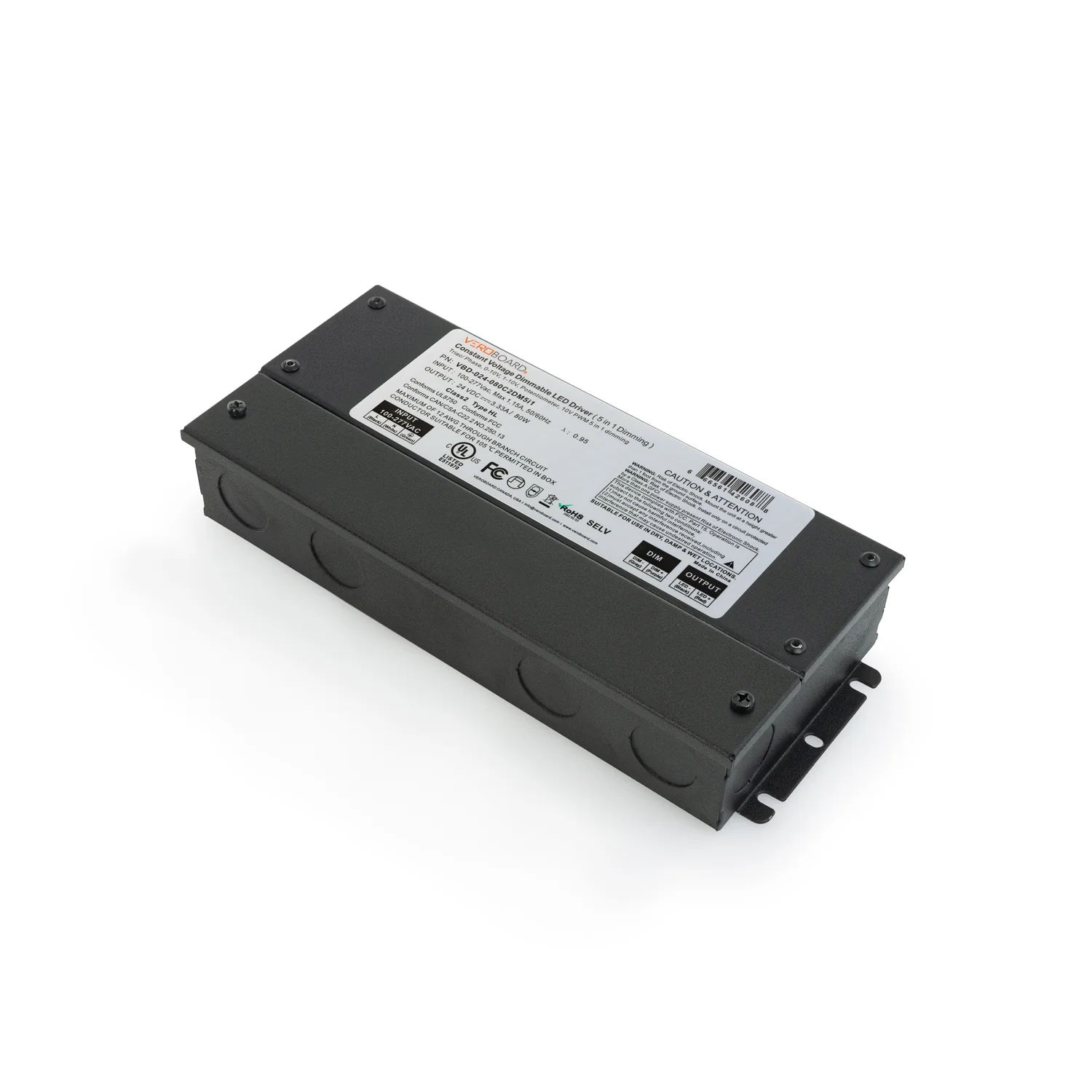

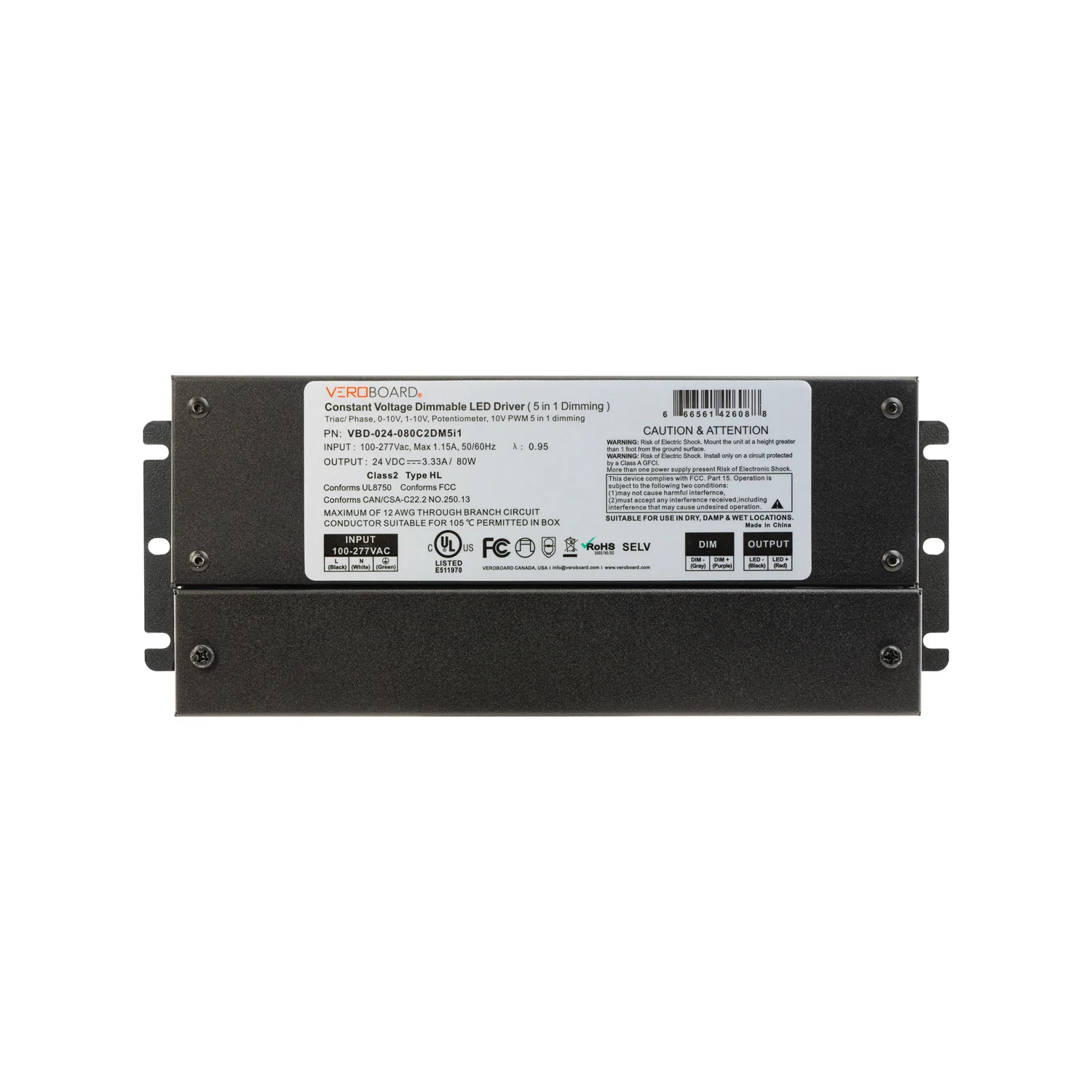

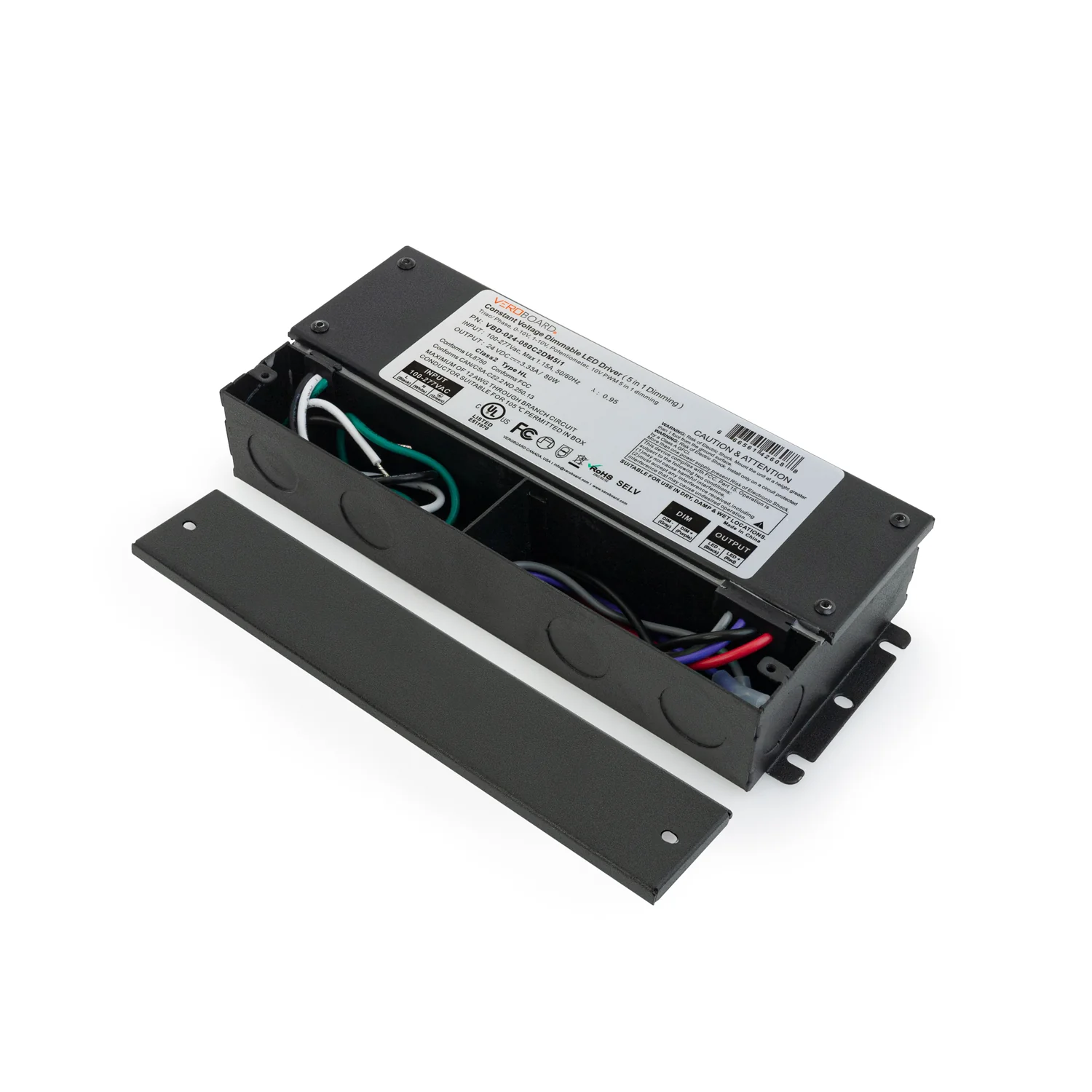

-70%5in1 Dimming Triac/Phase/MLV/ELV/0-10V/Potentiometer/10V PWM LED Driver, 24V 80W—
$113.07
$33.92The Story
| Model | VBD-024-080C2DM5i1 |
| Input Voltage | 100-277V AC |
| Input Current | 1.15A |
| Frequency | 50-60 Hz |
| Power Factor | >0.95 |
| Output Voltage | 24V DC |
| Output regulated Current | 3.33A |
| Output Power | 80W max |
| Dimmable | Yes (Triac/Phase/MLV/ELV/0-10V/Potentiometer/10V PWM) |
| IP Rating | IP67 (Dry, Damp and Wet Locations) |
| Dimensions | 221mm x 94.34mm x 40.80mm (8.7in x 3.75in x 1.6 in) |
| Class Certification | Class 2 |
| Certifications: |    |
| Applicable for dry, damp, and wet locations |
| Compatible with Forward-Phase, Magnetic low Voltage & Triac dimmers |
Features:
- Versatile dimming driver for LED lighting systems
- Input voltage range of 100-277V AC, input current of 1.15A, and frequency of 50-60 Hz
- High power factor of >0.95 for efficient power utilization
- Output voltage of 24V DC, regulated output current up to 3.33A, and maximum output power of 80W
- Dimmable with Triac, Phase, MLV, ELV, 0-10V, Potentiometer, and 10V PWM dimming control
- Rated IP67 for use in dry, damp, and wet locations
- Compact dimensions of 221mm x 94.34mm x 40.80mm (8.7in x 3.75in x 1.6 in)
- Class 2 certified for safe operation in low voltage applications
- UL and FCC certified for electrical safety and compliance with electromagnetic interference standards.
