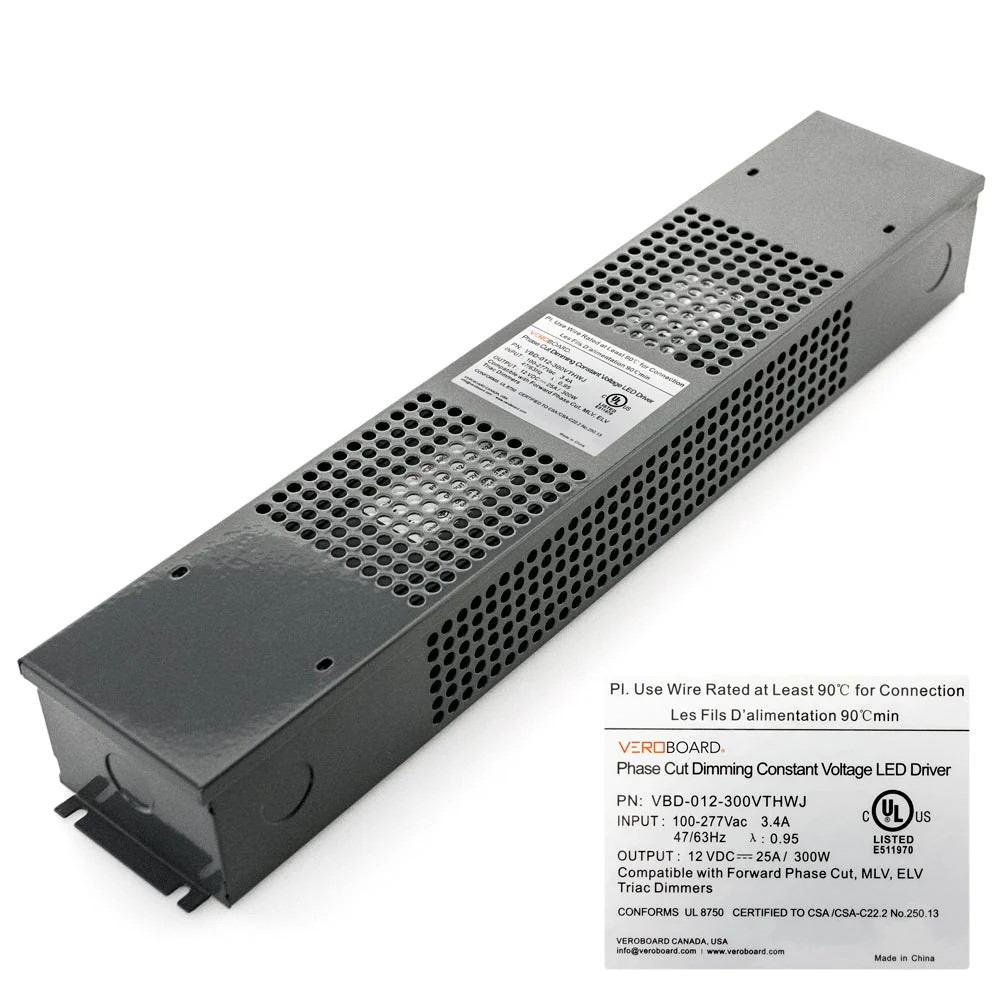

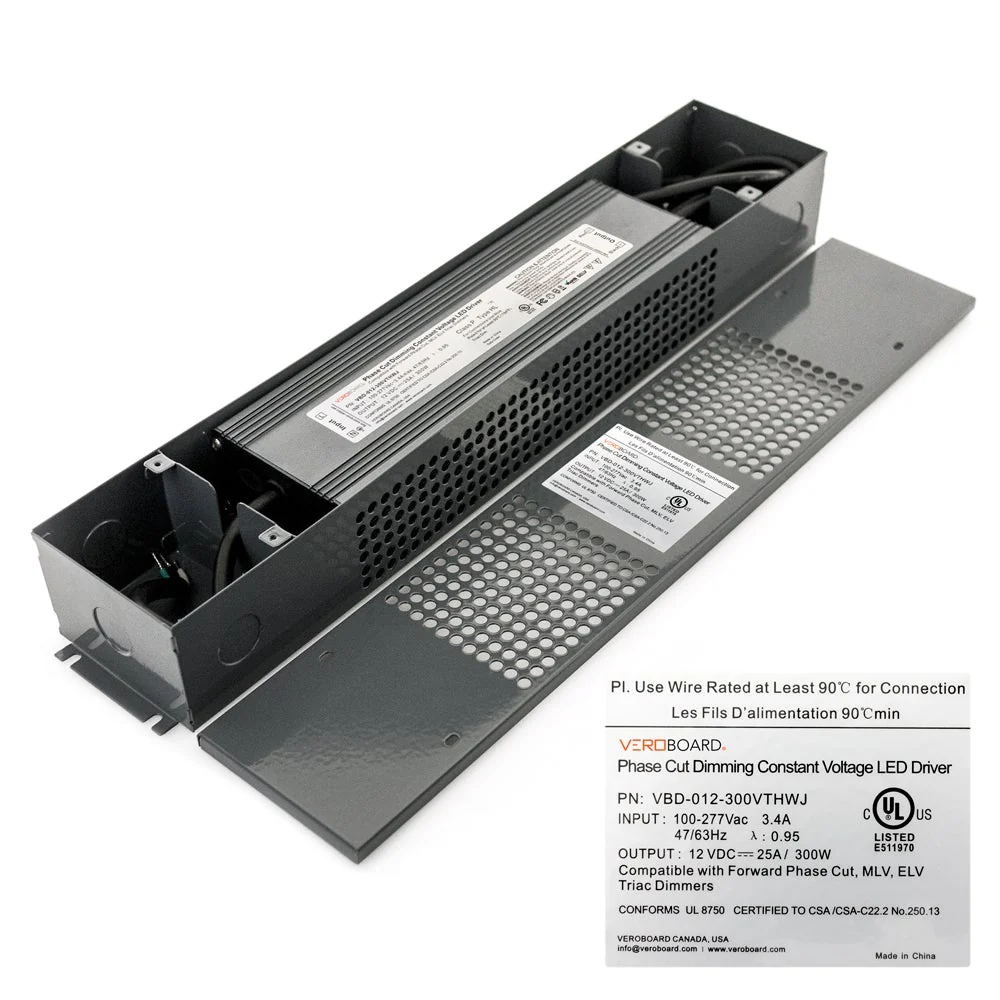

-70%VBD-012-300VTHWJ Triac Dimmable Constant Voltage LED Driver, 12V 25A 300W—
$178.42
$53.53The Story
| Model | VBD-012-300VTHWJ |
| Input Voltage | 100 – 277V AC |
| Input Current | 3.4A |
| Frequency | 47/63Hz |
| Power Factor | 0.95 |
| Output Voltage | 12V DC |
| Output regulated Current | 25A |
| Output Power | 300W max |
| Dimmable | Yes (Phase/ Triac/ Magnetic Low Voltage Dimming) |
| Class Certification | Class P Type HL/ SELV |
| IP Rating | IP65 |

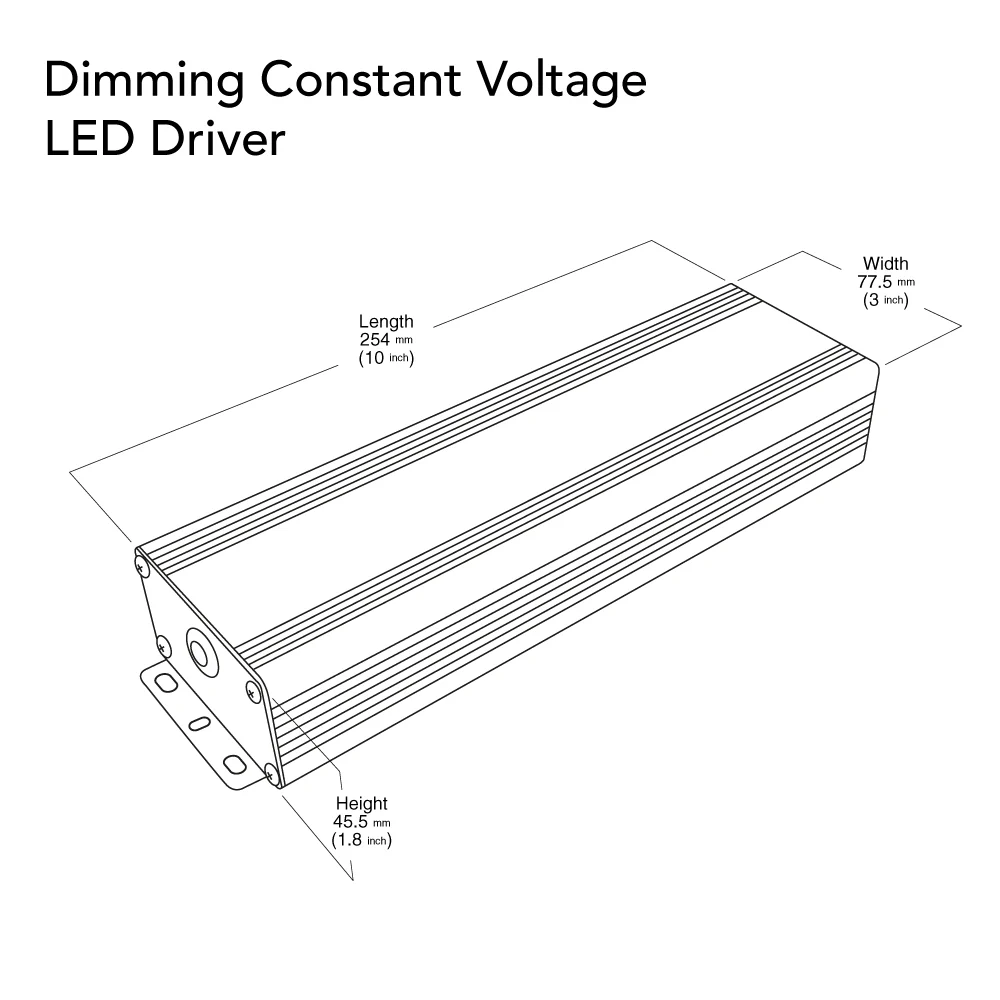

| Dimensions (Without Box) | 254x 77.5x 45.5mm(10 x 3 x 1.8 in) |
| Dimensions (Box) | 440 x 86 x 59.4mm (17.31 x 3.38 x 2.34 in) |
| Certifications |    |
|
Compatible with Forward-Phase, Magnetic low Voltage & Triac dimmers |
| Suitable for Dry, Damp, and Wet locations. |
Features:
- Power supply unit designed for use with LED lighting systems.
- Model: VBD-012-300VTHWJ.
- Input voltage range of 100-277V AC, input current of 3.4A, and frequency range of 47/63Hz.
- High power factor of 0.95 for energy efficiency.
- Regulated output voltage of 12V DC and maximum output power of 300W.
- Output regulated current of 25A, suitable for various LED lights.
- Dimming capability with Phase, Triac, and Magnetic Low Voltage dimming options.
- IP65 rating for outdoor use, resistant to moisture, dust, and outdoor elements.
- Dimensions: 254x 77.5x 45.5mm(10 x 3 x 1.8 in) without the box, 440 x 86 x 59.4mm (17.31 x 3.38 x 2.34 in) with the box.
- Class P Type HL/ SELV certification for use in hazardous locations.
- ETL certification for safety and compliance with North American electrical standards.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Model | VBD-012-300VTHWJ |
| Input Voltage | 100 – 277V AC |
| Input Current | 3.4A |
| Frequency | 47/63Hz |
| Power Factor | 0.95 |
| Output Voltage | 12V DC |
| Output regulated Current | 25A |
| Output Power | 300W max |
| Dimmable | Yes (Phase/ Triac/ Magnetic Low Voltage Dimming) |
| Class Certification | Class P Type HL/ SELV |
| IP Rating | IP65 |
| Dimensions (Without Box) | 254x 77.5x 45.5mm(10 x 3 x 1.8 in) |
| Dimensions (Box) | 440 x 86 x 59.4mm (17.31 x 3.38 x 2.34 in) |
| Certifications | |
|
Compatible with Forward-Phase, Magnetic low Voltage & Triac dimmers |
| Suitable for Dry, Damp, and Wet locations. |
Features:
- Power supply unit designed for use with LED lighting systems.
- Model: VBD-012-300VTHWJ.
- Input voltage range of 100-277V AC, input current of 3.4A, and frequency range of 47/63Hz.
- High power factor of 0.95 for energy efficiency.
- Regulated output voltage of 12V DC and maximum output power of 300W.
- Output regulated current of 25A, suitable for various LED lights.
- Dimming capability with Phase, Triac, and Magnetic Low Voltage dimming options.
- IP65 rating for outdoor use, resistant to moisture, dust, and outdoor elements.
- Dimensions: 254x 77.5x 45.5mm(10 x 3 x 1.8 in) without the box, 440 x 86 x 59.4mm (17.31 x 3.38 x 2.34 in) with the box.
- Class P Type HL/ SELV certification for use in hazardous locations.
- ETL certification for safety and compliance with North American electrical standards.
