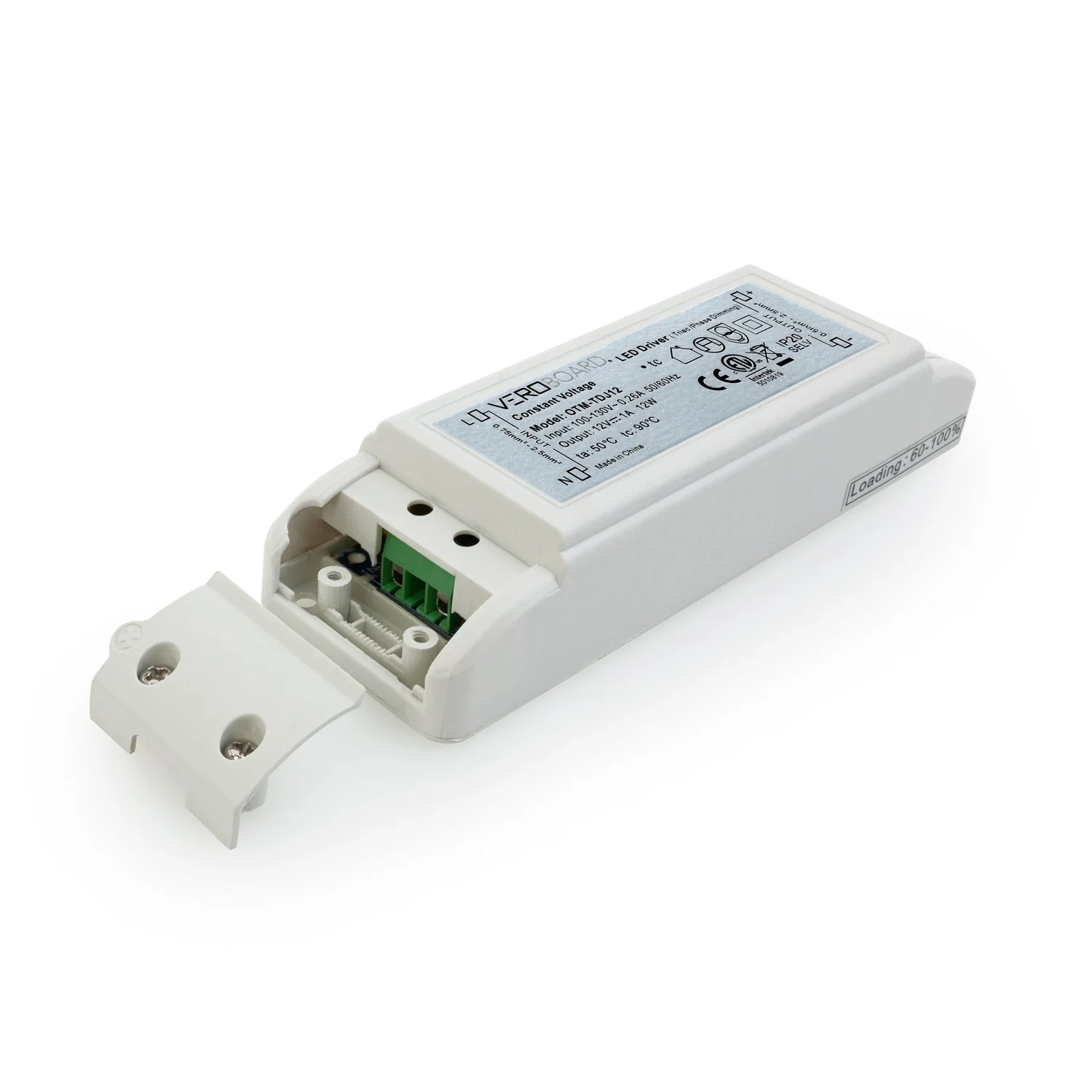

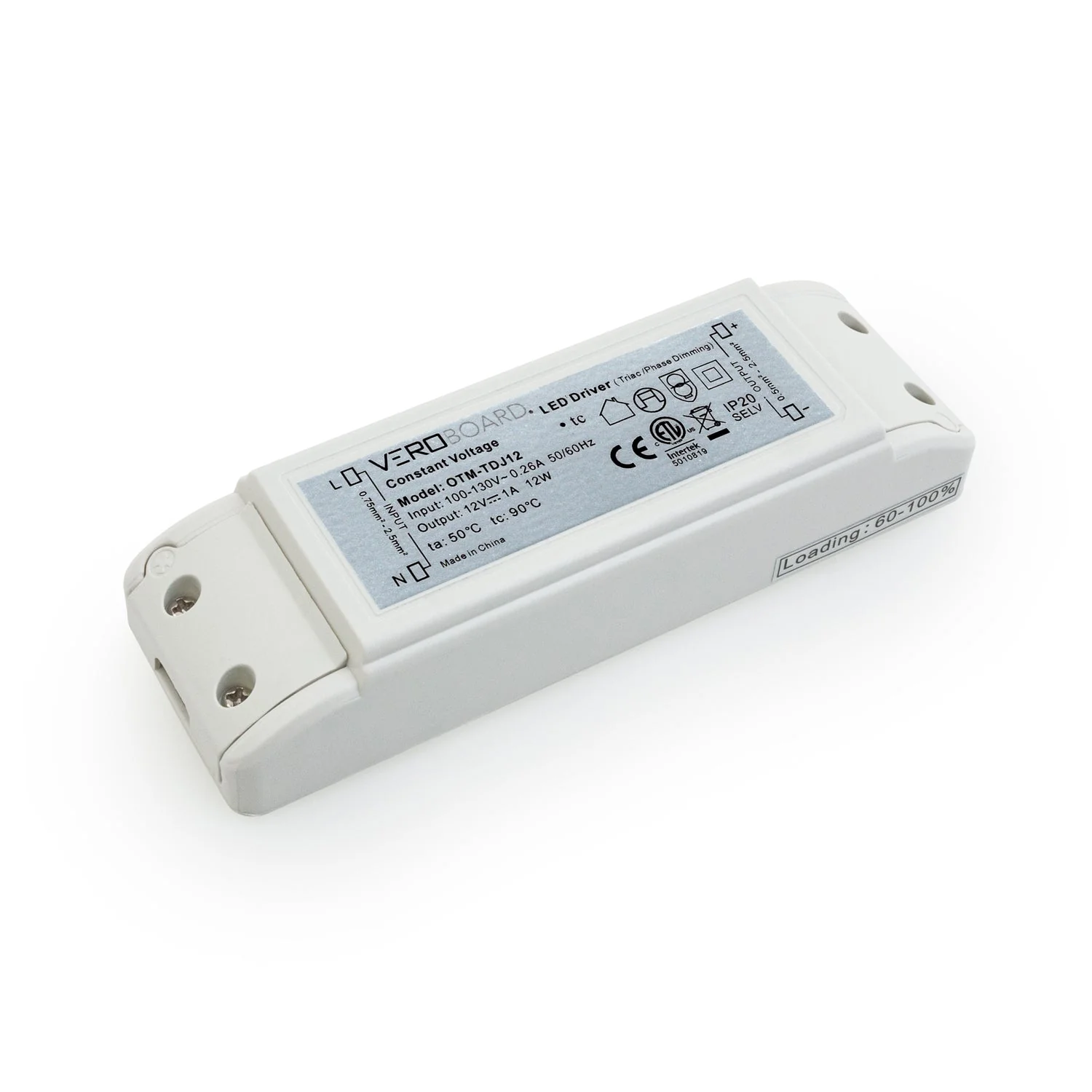

-70%OTM-TDJ12 Constant Voltage Triac Dimming LED Driver,12V 1.0A 12W—
$22.76
$6.83The Story
| Model | OTM-TDJ12 |
| Input Voltage | 100-130V AC |
| Input Current | 0.26A |
| Frequency | 50/60Hz |
| Output Voltage | 12V DC |
| Output regulated Current | 1.0A |
| Output Power | 12W |
| Dimmable | Yes (Triac/Phase Dimming) |
| IP Rating | IP20 (Indoor Rated) |
| Ambient Temperature (Ta) | 50°C |
| Case Temperature (Tc) | 90°C |
| Class Certification | Class II/ SELV |
| Dimensions | 140 x 45 x 27.27mm (5.5 x 1.77 x 1.07in) |
| Certification |

|
|
Compatible with Forward-Phase & Triac dimmers |
| Short circuit and overload protected |
| Applicable for Dry and Damp locations |
| Class II certified, Double-layer insulation |
Features:
- Compact and efficient power supply for LED lighting systems.
- Input voltage range: 100-130V AC, input current: 0.26A, frequency: 50/60Hz.
- Output voltage: 12V DC, output current regulation: up to 1.0A.
- Maximum output power: 12W, suitable for low-power LED lighting applications.
- Triac/Phase dimming technology for adjustable brightness levels.
- IP20 rating for indoor use.
- Maximum ambient temperature (Ta): 50°C, case temperature (Tc): 90°C.
- Class II and SELV certifications for low-voltage safety standards.
- Compact dimensions: 140 x 45 x 27.27mm (5.5 x 1.77 x 1.07in).
- ETL certified for safety and compliance with rigorous testing by Intertek.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Model | OTM-TDJ12 |
| Input Voltage | 100-130V AC |
| Input Current | 0.26A |
| Frequency | 50/60Hz |
| Output Voltage | 12V DC |
| Output regulated Current | 1.0A |
| Output Power | 12W |
| Dimmable | Yes (Triac/Phase Dimming) |
| IP Rating | IP20 (Indoor Rated) |
| Ambient Temperature (Ta) | 50°C |
| Case Temperature (Tc) | 90°C |
| Class Certification | Class II/ SELV |
| Dimensions | 140 x 45 x 27.27mm (5.5 x 1.77 x 1.07in) |
| Certification |
|
|
Compatible with Forward-Phase & Triac dimmers |
| Short circuit and overload protected |
| Applicable for Dry and Damp locations |
| Class II certified, Double-layer insulation |
Features:
- Compact and efficient power supply for LED lighting systems.
- Input voltage range: 100-130V AC, input current: 0.26A, frequency: 50/60Hz.
- Output voltage: 12V DC, output current regulation: up to 1.0A.
- Maximum output power: 12W, suitable for low-power LED lighting applications.
- Triac/Phase dimming technology for adjustable brightness levels.
- IP20 rating for indoor use.
- Maximum ambient temperature (Ta): 50°C, case temperature (Tc): 90°C.
- Class II and SELV certifications for low-voltage safety standards.
- Compact dimensions: 140 x 45 x 27.27mm (5.5 x 1.77 x 1.07in).
- ETL certified for safety and compliance with rigorous testing by Intertek.
