$25.70

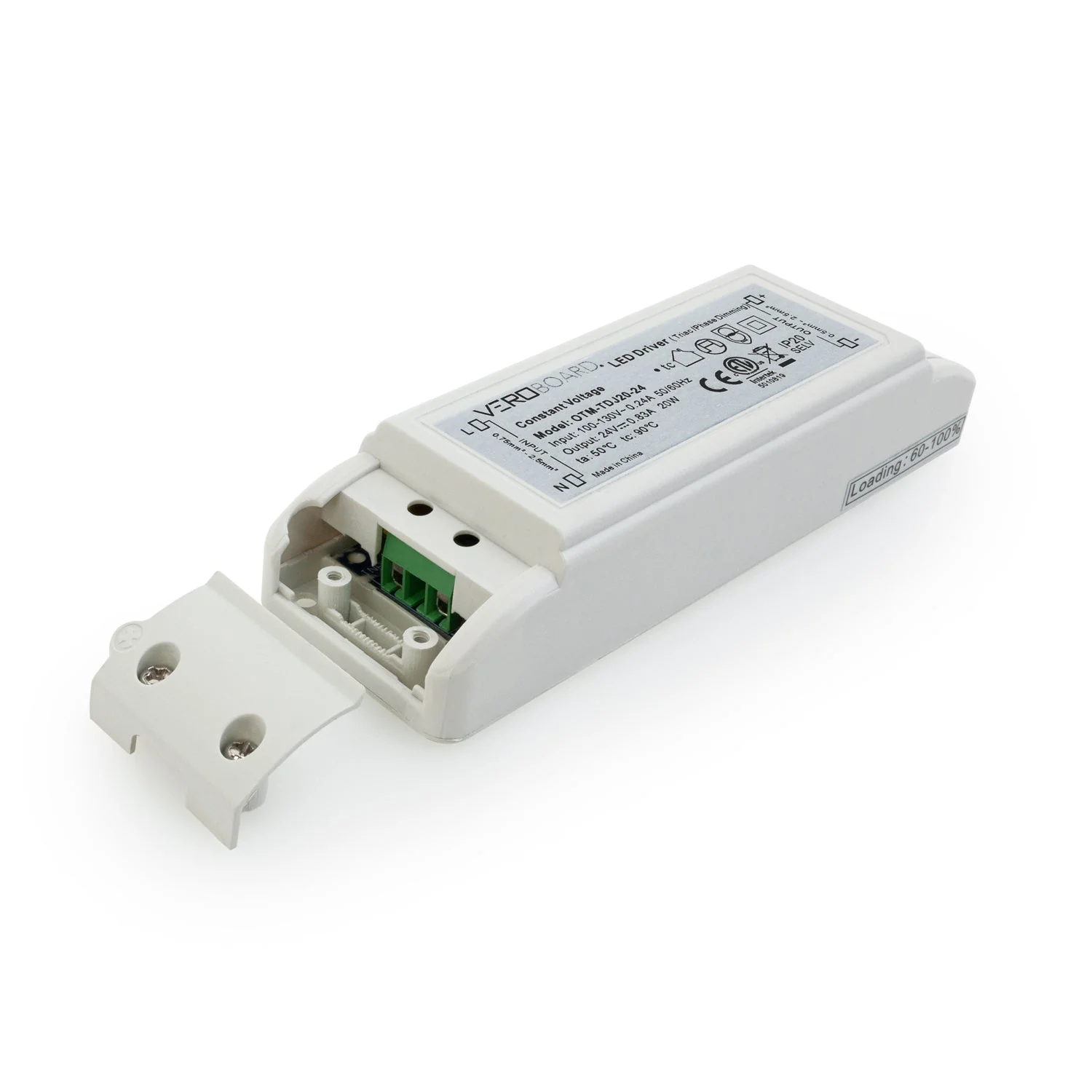

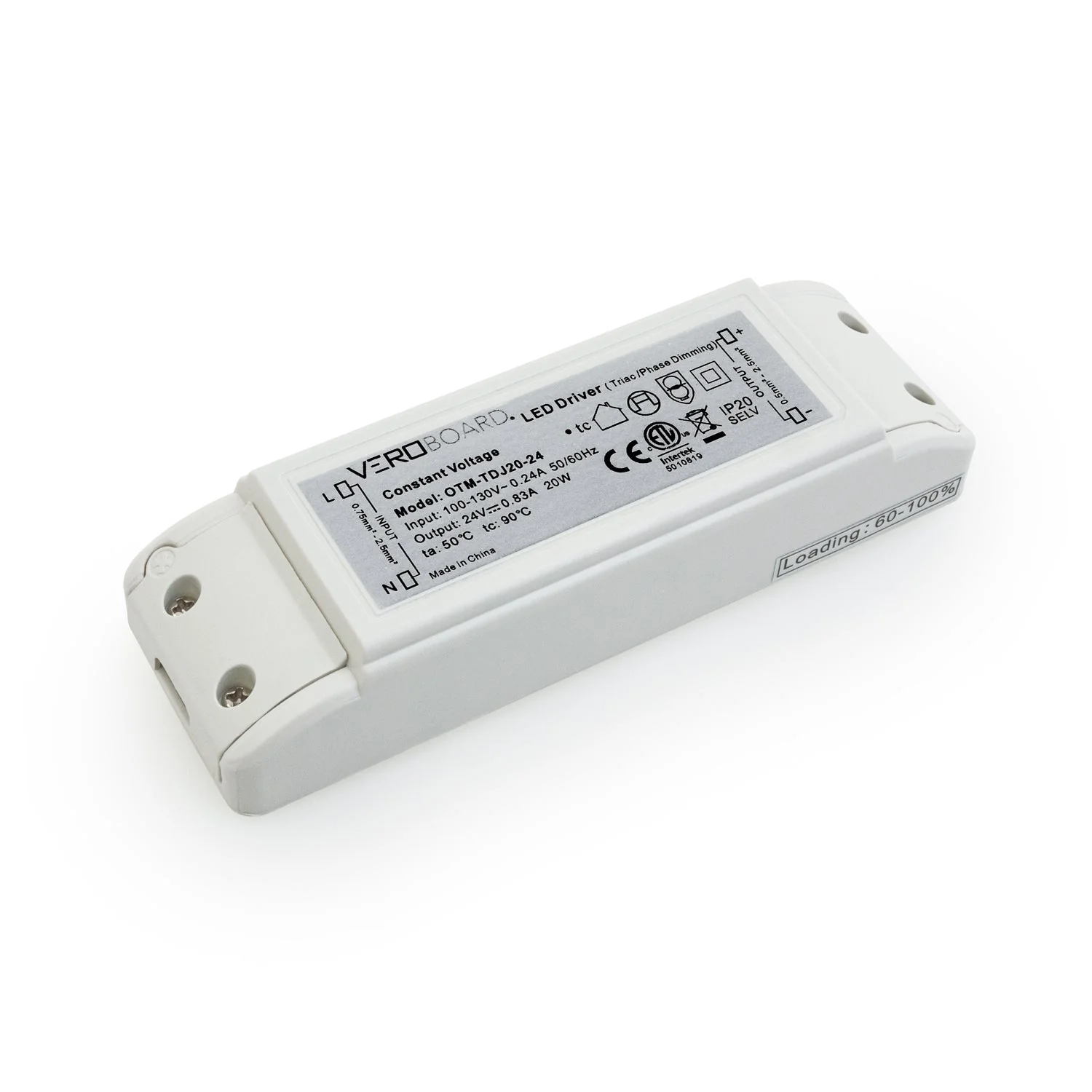

OTM-TDJ20-24 Constant Voltage Triac Dimming LED Driver, 24V 0.83A 20W—
$25.70
The Story
| Model | OTM-TDJ20-24 |
| Input Voltage | 100-130V AC |
| Input Frequency | 50-60Hz |
| Output Voltage | 24V DC |
| Input Current | 0.24A |
| Output regulated Current | 0.83A |
| Output max Power | 20W |
| Dimmable | Yes (Triac/Phase Dimming) |
| IP Rating | IP20 (Indoor Rated) |
| Ambient Temperature (Ta) | 50°C |
| Case Temperature (Tc) | 90°C |
| Class Certification | Class II/ SELV |
| Dimensions | 140 x 45 x 27.27mm (5.5 x 1.77 x 1.07in) |
| Certification |

|
|
Compatible with Forward-Phase & Triac dimmers |
| Short circuit and overload protected |
| Applicable for Dry and Damp locations |
| Class II certified, Double-layer insulation |
Features:
- OTM-TDJ20-24 Triac Dimmable Constant Voltage LED Driver
- Converts 100-130V AC input voltage and 50-60Hz frequency to 24V DC output voltage
- Input current: 0.24A, output regulated current: 0.83A
- Maximum output power: 20W
- Dimmable using Triac/Phase Dimming method
- IP20 rating for indoor use and protection against solid objects larger than 12.5mm
- Ambient temperature (Ta) withstands up to 50°C, case temperature (Tc) should not exceed 90°C
- Class II/ SELV certification for double insulation protection and Safety Extra Low Voltage (SELV) operation
- Dimensions: 140 x 45 x 27.27mm (5.5 x 1.77 x 1.07in)
- ETL certified
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
| Model | OTM-TDJ20-24 |
| Input Voltage | 100-130V AC |
| Input Frequency | 50-60Hz |
| Output Voltage | 24V DC |
| Input Current | 0.24A |
| Output regulated Current | 0.83A |
| Output max Power | 20W |
| Dimmable | Yes (Triac/Phase Dimming) |
| IP Rating | IP20 (Indoor Rated) |
| Ambient Temperature (Ta) | 50°C |
| Case Temperature (Tc) | 90°C |
| Class Certification | Class II/ SELV |
| Dimensions | 140 x 45 x 27.27mm (5.5 x 1.77 x 1.07in) |
| Certification |
|
|
Compatible with Forward-Phase & Triac dimmers |
| Short circuit and overload protected |
| Applicable for Dry and Damp locations |
| Class II certified, Double-layer insulation |
Features:
- OTM-TDJ20-24 Triac Dimmable Constant Voltage LED Driver
- Converts 100-130V AC input voltage and 50-60Hz frequency to 24V DC output voltage
- Input current: 0.24A, output regulated current: 0.83A
- Maximum output power: 20W
- Dimmable using Triac/Phase Dimming method
- IP20 rating for indoor use and protection against solid objects larger than 12.5mm
- Ambient temperature (Ta) withstands up to 50°C, case temperature (Tc) should not exceed 90°C
- Class II/ SELV certification for double insulation protection and Safety Extra Low Voltage (SELV) operation
- Dimensions: 140 x 45 x 27.27mm (5.5 x 1.77 x 1.07in)
- ETL certified
