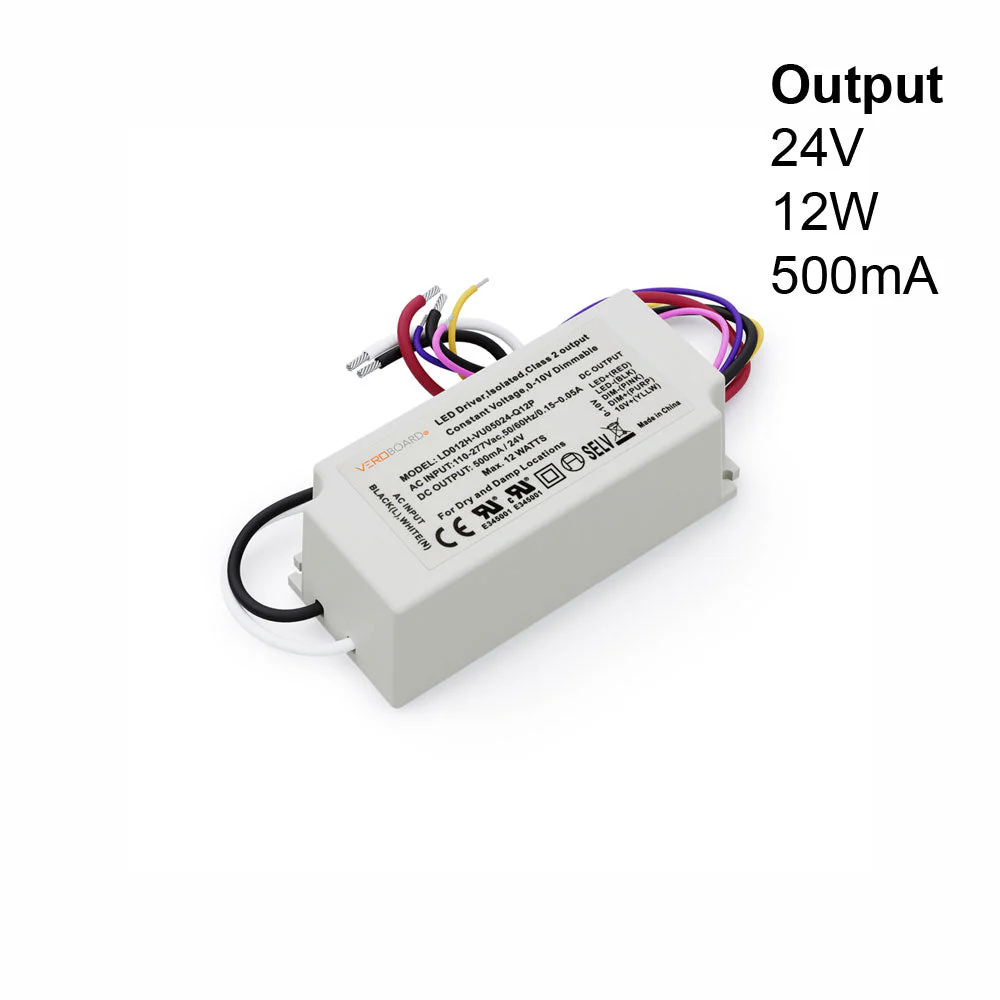

LD012H-VU05024-Q12P 0-10V Dimmable Constant Voltage LED Driver 24V 12W
HomeStore

LD012H-VU05024-Q12P 0-10V Dimmable Constant Voltage LED Driver 24V 12W

LD012H-VU05024-Q12P 0-10V Dimmable Constant Voltage LED Driver 24V 12W

$30.84
LD012H-VU05024-Q12P 0-10V Dimmable Constant Voltage LED Driver 24V 12W—
$30.84

The Story

Model LD012H-VU05024-Q12P
Input Voltage 110-277V AC
Input Current 0.15~0.05A
Frequency 50/60 Hz
Output voltage 24V DC
Output regulated current 500mA
Output Power 12W
Dimmable Yes (0/10V Dimming)
Class Certification Class 2
IP Rating IP20 (Indoor Rated)

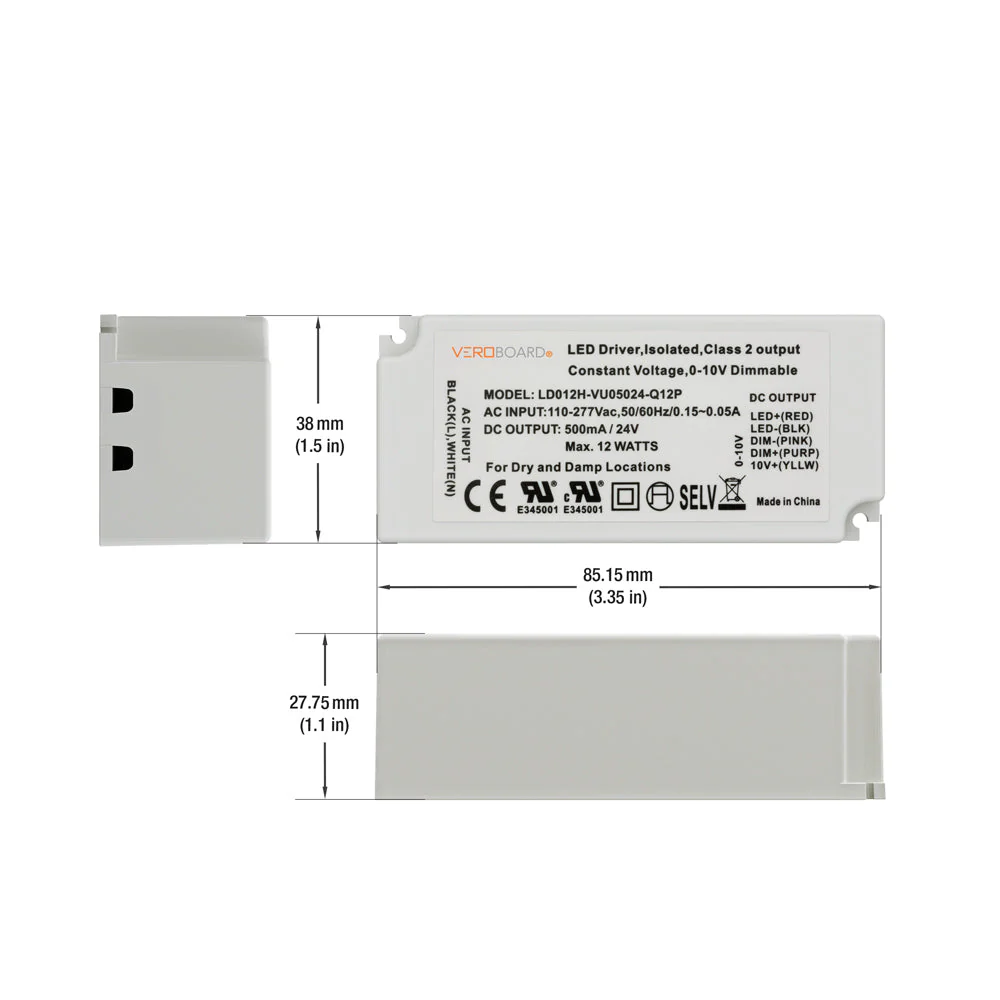

Dimensions 85.15 x 38 x 27.7mm (3.3 x 1.5 x 1.1in)
Certifications



Features:

  • Operates with an input voltage range of 110-277V AC and supports a frequency of 50-60 Hz.
  • Draws an input current between 0.15A and 0.05A.
  • Provides a stable output voltage of 12V DC, ideal for LED lighting systems.
  • Delivers a power output of 12W.
  • Supplies a consistent output current of 500mA.
  • Features 0-10V dimming functionality for adjustable brightness levels.
  • Rated IP20, making it suitable for dry and damp indoor locations.
  • Compatible with any standard 0-10V dimming switches for flexible lighting control.



LD012H-VU05024-Q12P 0-10V Dimmable Constant Voltage LED Driver 24V 12W - Image 2

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

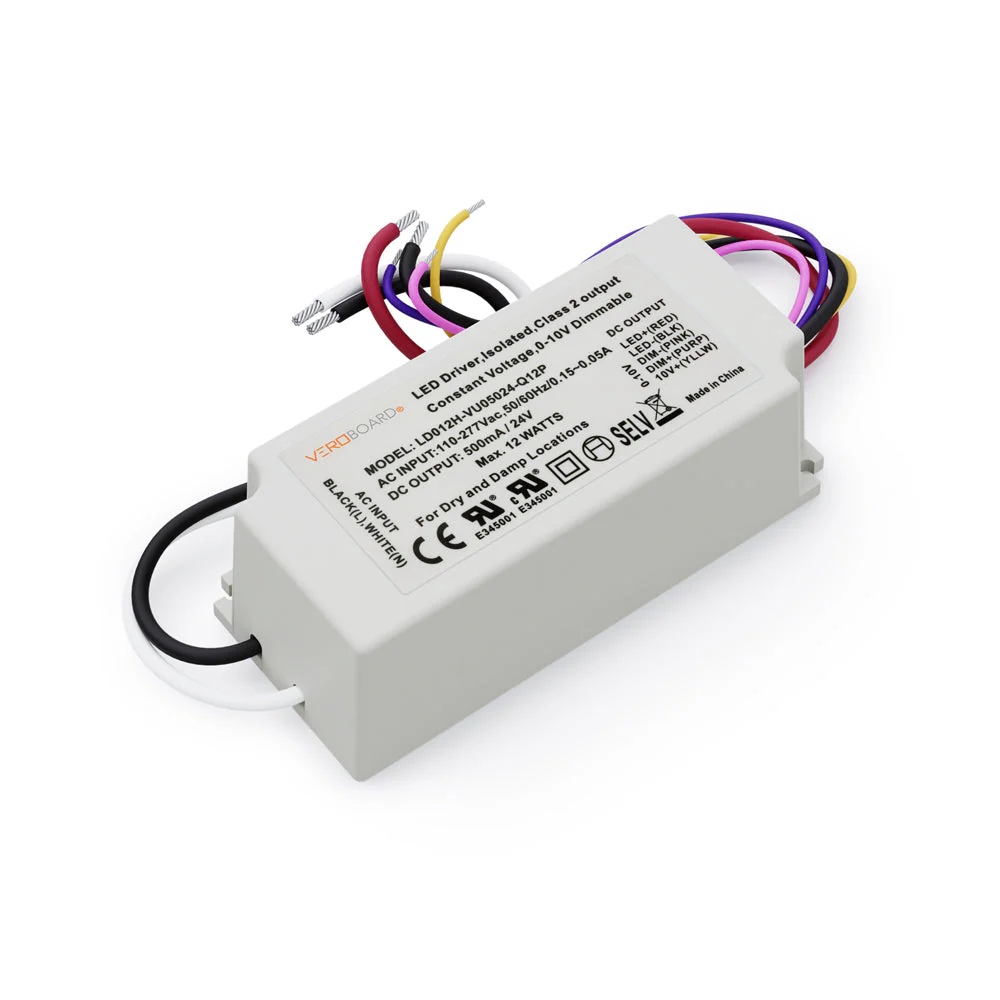

LD012H-VU05024-Q12P 0-10V Dimmable Constant Voltage LED Driver 24V 12W - Image 3

Details & Craftsmanship

Every detail has been carefully considered to bring you the perfect product.

Description

Model LD012H-VU05024-Q12P
Input Voltage 110-277V AC
Input Current 0.15~0.05A
Frequency 50/60 Hz
Output voltage 24V DC
Output regulated current 500mA
Output Power 12W
Dimmable Yes (0/10V Dimming)
Class Certification Class 2
IP Rating IP20 (Indoor Rated)
Dimensions 85.15 x 38 x 27.7mm (3.3 x 1.5 x 1.1in)
Certifications



Features:

  • Operates with an input voltage range of 110-277V AC and supports a frequency of 50-60 Hz.
  • Draws an input current between 0.15A and 0.05A.
  • Provides a stable output voltage of 12V DC, ideal for LED lighting systems.
  • Delivers a power output of 12W.
  • Supplies a consistent output current of 500mA.
  • Features 0-10V dimming functionality for adjustable brightness levels.
  • Rated IP20, making it suitable for dry and damp indoor locations.
  • Compatible with any standard 0-10V dimming switches for flexible lighting control.
