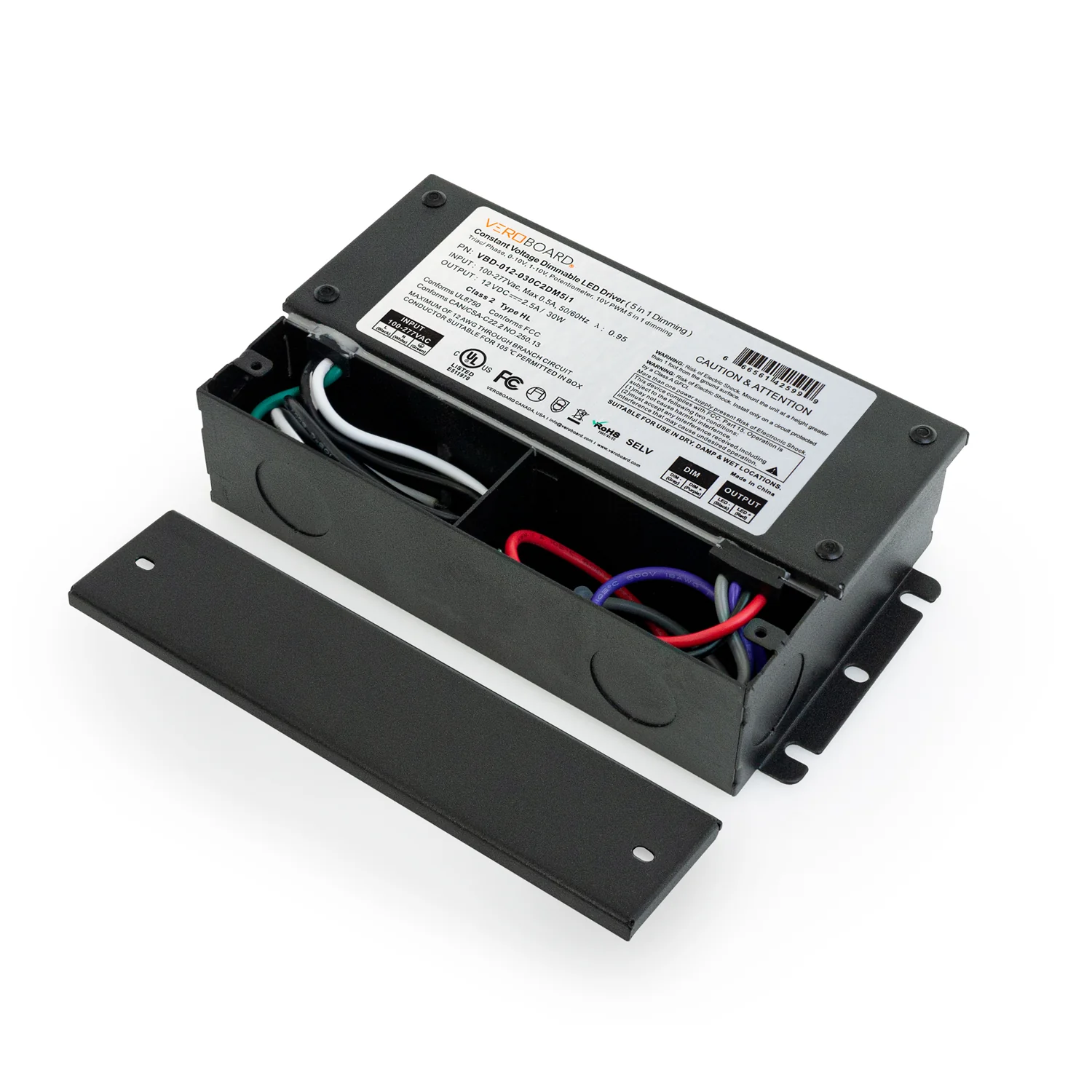

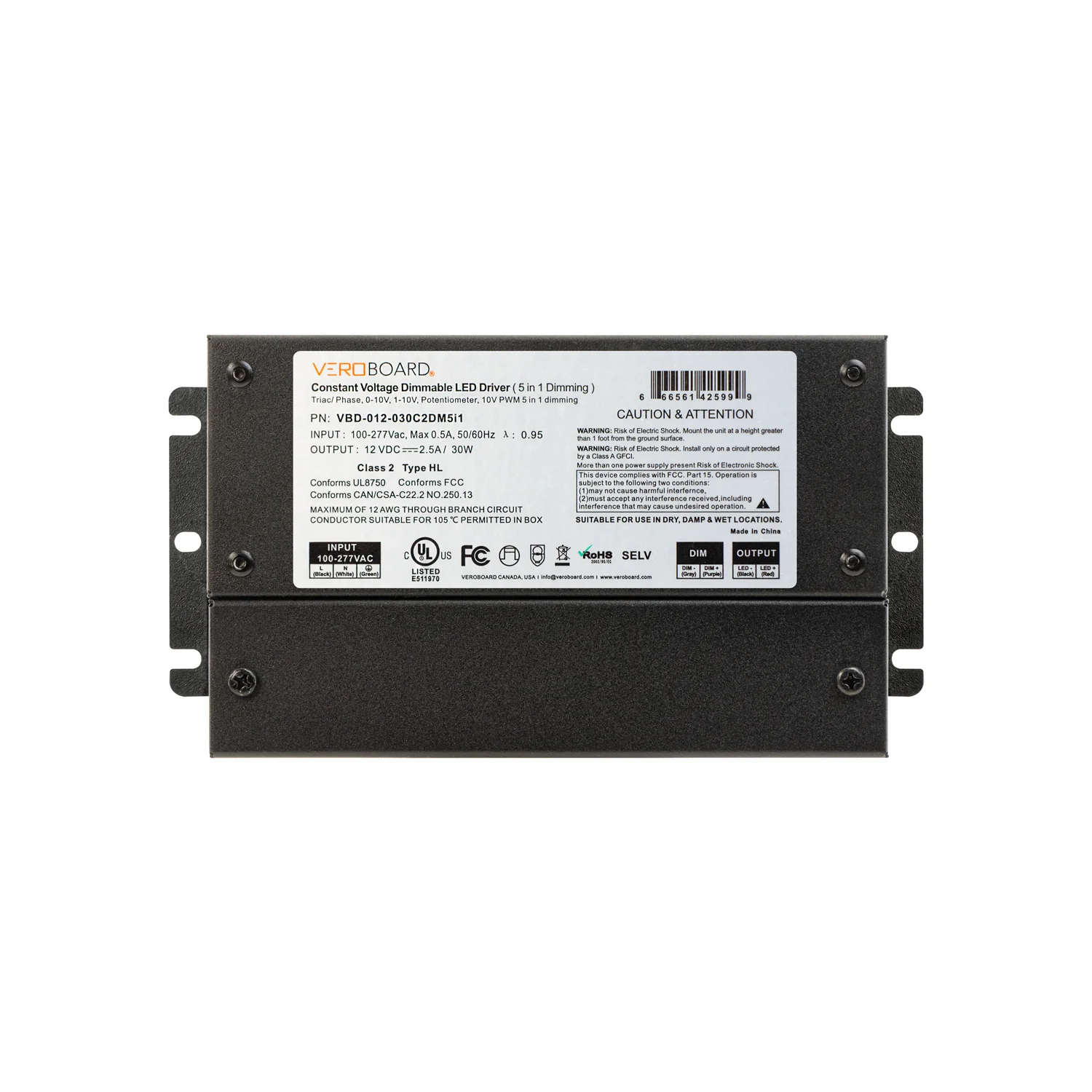

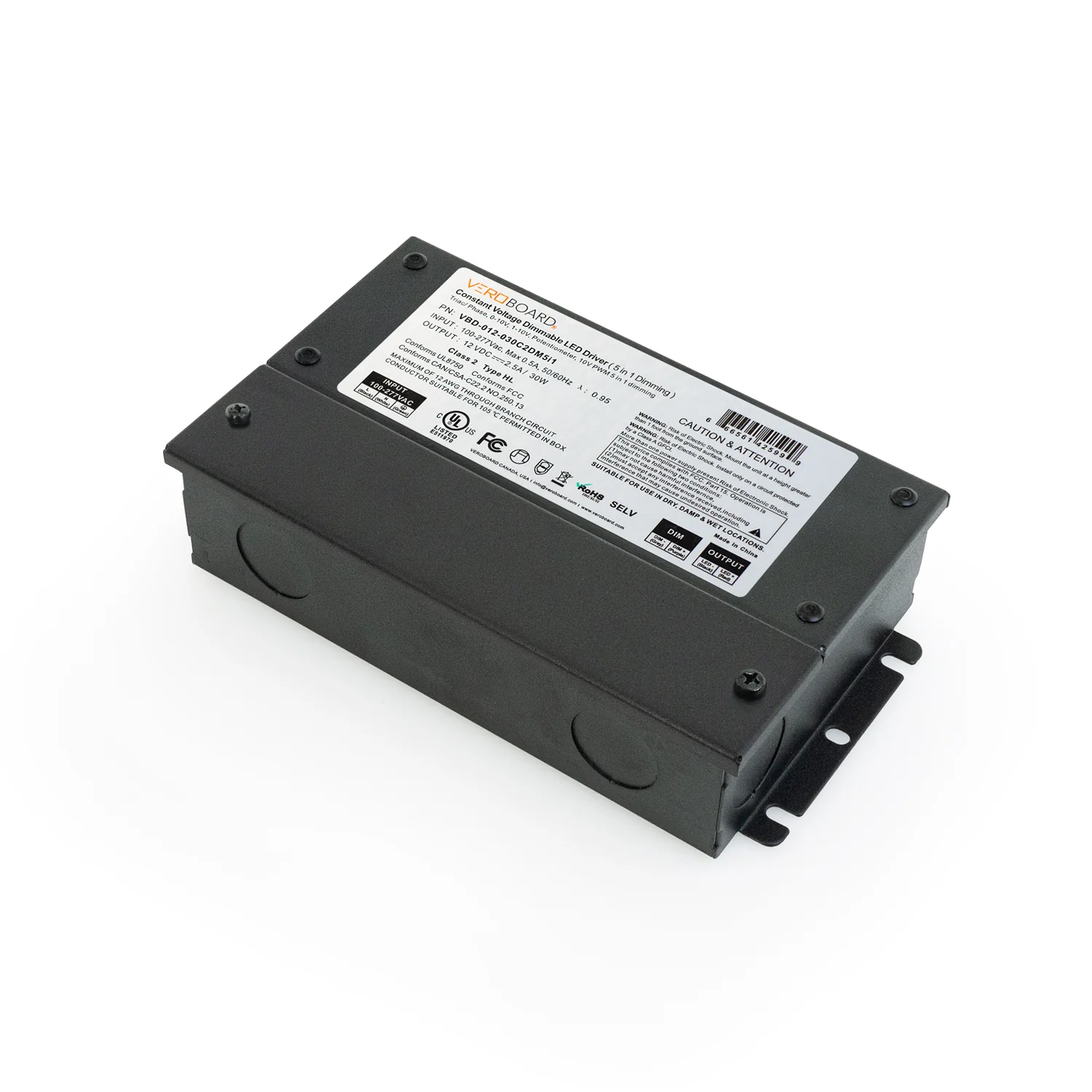

-70%5in1 Dimming Triac/Phase/MLV/ELV/0-10V/Potentiometer/10V PWM, LED Driver 12V 30W—
$53.60
$16.08The Story
| Model | VBD-012-030C2DM5i1 |
| Input Voltage | 100-277V AC |
| Input Current | 0.5A |
| Frequency | 50-60 Hz |
| Power Factor | >0.95 |
| Output Voltage | 12V DC |
| Output regulated Current | 2.5A |
| Output Power | 30W max |
| Dimmable | Yes (Triac/Phase/MLV/ELV/0-10V/Potentiometer/10V PWM) |
| IP Rating | IP67 (Dry, Damp and Wet Locations) |
| Dimensions | 166mm x 95mm x 40.70mm (6.5in x 3.75in x 1.6 in) |
| Class Certification | Class2 |
| Certifications: |    |
| Applicable for dry, damp, and wet locations |
|
Compatible with Forward-Phase, Magnetic low Voltage & Triac dimmers |
Features:
- 5-in-1 dimming LED driver with support for Triac, Phase, MLV, ELV, 0-10V, Potentiometer, and 10V PWM dimming signals
- Input voltage range: 100-277V AC, input current: 0.5A, frequency: 50-60 Hz
- Power factor greater than 0.95, ensuring efficient power usage
- Output voltage: 12V DC, regulated output current: 2.5A, maximum output power: 30W
- Dimmable driver suitable for use in dry, damp, and wet locations with IP67 rating
- Dimensions: 166mm x 95mm x 40.70mm (6.5in x 3.75in x 1.6 in)
- Class 2 certified for safety
- UL and FCC certified, meeting electromagnetic interference standards.
